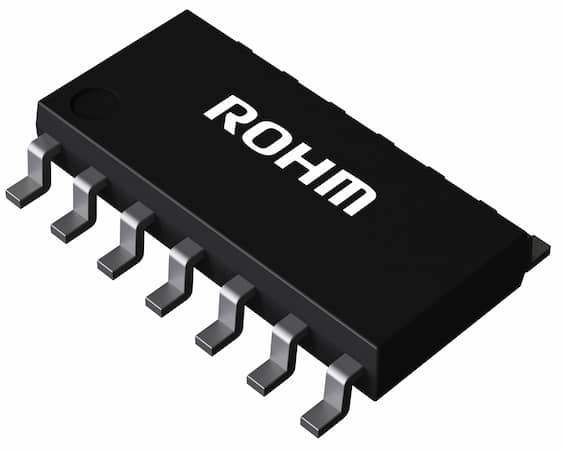

LMR344FVJ Series

LMR™ Series, Low Supply Current Output Full Swing CMOS Operational Amplifier

Catalog

LMR™ Series, Low Supply Current Output Full Swing CMOS Operational Amplifier

Part	Slew Rate	Number of Circuits	Voltage - Input Offset	Voltage - Supply Span (Min) [Min]	Mounting Type	Gain Bandwidth Product	Output Type	Amplifier Type	Current - Supply	Current - Input Bias	Supplier Device Package	Current - Output / Channel	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case [x]	Package / Case [y]	Package / Case	Voltage - Supply Span (Max) [Max]	Package / Case [custom]	Package / Case [custom]
Rohm Semiconductor LMR344FJ-GE2	1 V/µs	4	250 çV	2.7 V	Surface Mount	2 MHz	Rail-to-Rail	CMOS	400 çA	1 pA	14-SOPJ	113 mA	85 °C	-40 °C	0.154 in	3.9 mm	14-SOIC	5.5 V
Rohm Semiconductor LMR344FVJ-E2	1 V/µs	4	250 çV	2.7 V	Surface Mount	2 MHz	Rail-to-Rail	CMOS	400 çA	1 pA	14-TSSOP-BJ	113 mA	85 °C	-40 °C			14-TSSOP	5.5 V	0.173 "	4.4 mm

Catalog

LMR™ Series, Low Supply Current Output Full Swing CMOS Operational Amplifier

Description

The LMR344FVJ are input ground sense, output full swing operational amplifiers. The LMR341G, LMR342xxx and LMR344xxx have the features of low operating supply voltage, low supply current and low input bias current. These are suitable for sensor amplifier, battery-powered electronic equipment, battery monitoring and audio pre-amps for voice. Shutdown function is applied to LMR341G.
