FINEPITCH Series
Board to Board & Mezzanine Connectors FP 1,27/ 12-FV 6,25
Manufacturer: Phoenix Contact
Catalog
Board to Board & Mezzanine Connectors FP 1,27/ 12-FV 6,25
Beta
⌘K
Board to Board & Mezzanine Connectors FP 1,27/ 12-FV 6,25
Board to Board & Mezzanine Connectors FP 1,27/ 12-FV 6,25
Board to Board & Mezzanine Connectors FP 1,27/ 12-FV 6,25
| Part | Contact Material | Insulation Material | Contact Shape | Insulation Color | Operating Temperature [Min] | Operating Temperature [Max] | Style | Row Spacing - Mating | Row Spacing - Mating | Features | Number of Rows [custom] | Material Flammability Rating | Voltage Rating | Insulation Height | Insulation Height | Termination | Fastening Type | Number of Positions Loaded | Contact Finish - Post | Current Rating (Amps) | Connector Type | Number of Positions | Mated Stacking Heights [custom] | Contact Finish - Mating | Pitch - Mating | Pitch - Mating | Contact Type | Mounting Type | Contact Length - Mating | Contact Length - Mating | Shrouding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

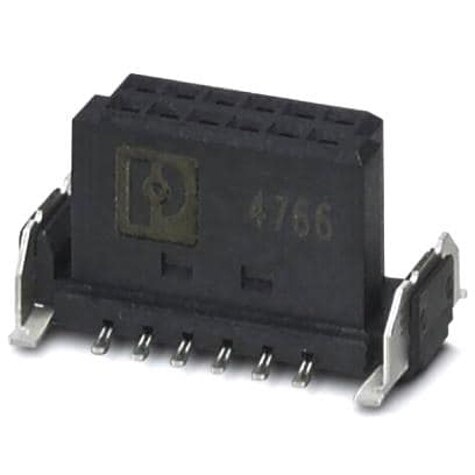

 Phoenix Contact | Copper Alloy | Liquid Crystal Polymer (LCP) | Square | Black | -55 C | 125 °C | Board to Board Cable | 0.05 in | 1.27 mm | Board Guide Solder Retention | 2 | UL94 V-0 | 500 V | 6.25 mm | 0.246 in | Solder | Push-Pull | All | Tin | 1.4 A | Receptacle | 12 | 8 mm 9.5 mm | Gold | 1.27 mm | 0.05 in | Female Socket | Surface Mount | |||
 Phoenix Contact | Black | -55 C | 125 °C | Board to Board Cable | 0.05 in | 1.27 mm | Board Guide Solder Retention | 2 | UL94 V-0 | 500 V | 6.25 mm | 0.246 in | Solder | Push-Pull | All | Tin | 1.4 A | Receptacle | 68 positions | 8 mm 9.5 mm | Gold | 1.27 mm | 0.05 in | Female Socket | Surface Mount | ||||||

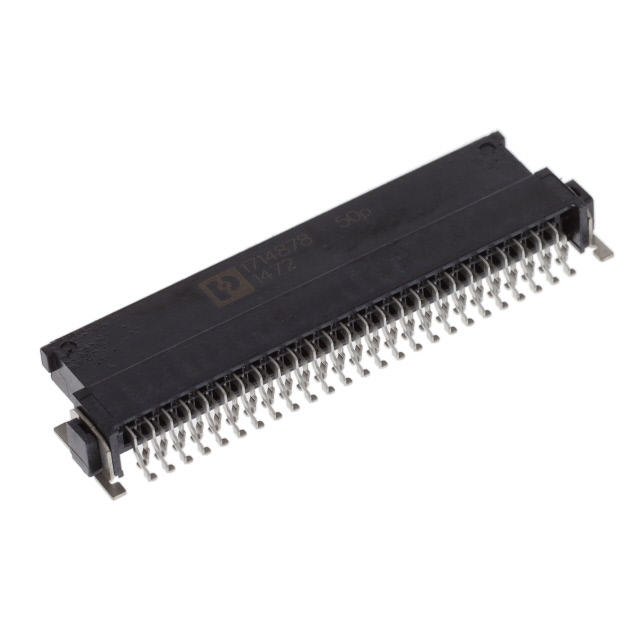

 Phoenix Contact | Copper Alloy | Liquid Crystal Polymer (LCP) | Square | Black | -55 C | 125 °C | Board to Board Cable | 0.05 in | 1.27 mm | Board Guide Solder Retention | 2 | UL94 V-0 | 500 V | 0.15 in 3.81 mm | Solder | Push-Pull | All | Tin | 1.4 A | Receptacle | 50 | Gold | 1.27 mm | 0.05 in | Female Socket | Right Angle Surface Mount | |||||
 Phoenix Contact | Copper Alloy | Liquid Crystal Polymer (LCP) | Square | Black | -55 C | 125 °C | Board to Board Cable | 0.05 in | 1.27 mm | Board Guide Solder Retention | 2 | UL94 V-0 | 500 V | 6.25 mm | 0.246 in | Solder | Push-Pull | All | Tin | 1.4 A | Receptacle | 8 mm 9.5 mm | Gold | 1.27 mm | 0.05 in | Female Socket | Surface Mount | ||||
 Phoenix Contact | Copper Alloy | Liquid Crystal Polymer (LCP) | Rectangular | Black | -55 C | 125 °C | Board to Board Cable | 0.05 in | 1.27 mm | Board Guide Solder Retention | 2 | UL94 V-0 | 500 V | 4.2 mm | 0.165 in | Solder | Push-Pull | All | 1.4 A | Header | 26 | Gold | 1.27 mm | 0.05 in | Male Pin | Right Angle Surface Mount | 4 mm | 0.157 in | Shrouded - 4 Wall |
