NCV887302 Series

Non-Synchronous Boost Controller, Automotive Grade

Catalog

Non-Synchronous Boost Controller, Automotive Grade

Part	Output Phases	Supplier Device Package	Output Configuration	Synchronous Rectifier	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Package / Case	Package / Case [y]	Package / Case [x]	Mounting Type	Duty Cycle (Max) [Max]	Function	Qualification	Output Type	Control Features	Clock Sync	Grade	Number of Outputs	Frequency - Switching	Topology	Operating Temperature [Max]	Operating Temperature [Min]

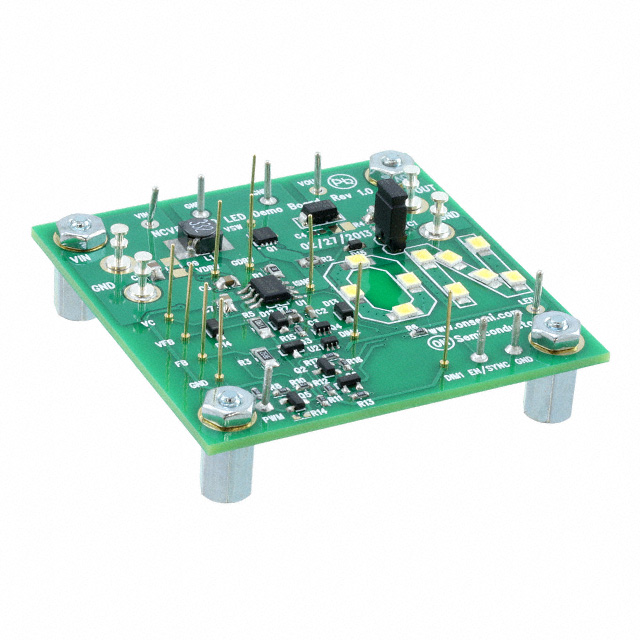

ON Semiconductor NCV8873LEDBSTGEVB
ON Semiconductor NCV887302D1R2G	1	8-SOIC	Positive		3.2 V	40 V	8-SOIC	3.9 mm	0.154 in	Surface Mount	92.5 %	Step-Up	AEC-Q100	Transistor Driver	Current Sense Enable		Automotive	1	400 kHz	Boost	150 °C	-40 °C

Catalog

Non-Synchronous Boost Controller, Automotive Grade

Key Features

• Peak Current Mode Control with Internal Slope Compensation

• 0.2 V 2% Reference Voltage for Constant Current Loads

• Wide Input Voltage Range of 3.2 V to 45 V

• Input Undervoltage Lockout

• Internal Soft Start

• Low Quiescent Current in Sleep Mode

• Cycle by Cycle Current Limit Protection

• Hiccup Mode Overcurrent Protection

• Thermal Shutdown

Description

The NCV8873 is an adjustable output non-synchronous boost controller which drives an external N-channel MOSFET. The device uses peak current mode control with internal slope compensation. The IC incorporates an internal regulator that supplies charge to the gate driver. Protection features include internally-set soft-start, undervoltage lockout, cycle-by-cycle current limiting and thermal shutdown. Additional features include low quiescent current sleep mode and externally-synchronizable switching frequency.
