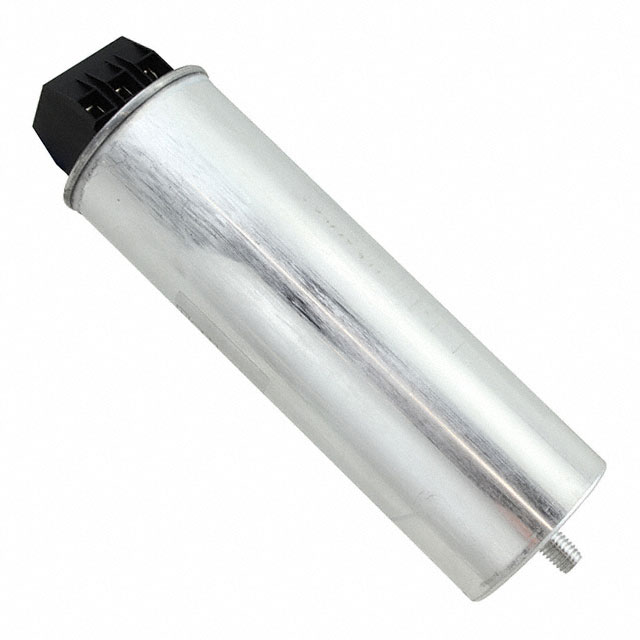

C9TS5MD Series

Manufacturer: KEMET

Catalog

CAP FILM 123UF 415VAC RADIAL

Part	Lead Spacing	Lead Spacing	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance [Max]	Tolerance [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Dielectric Material	Package / Case	Termination	Mounting Type	Capacitance	Applications	Voltage Rating - AC	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET C9TS5MD6123AARX	0.748 in	19 mm	55 °C	-25 °C	15 %	-5 %	282 mm	11.102 in	2.953 in	75 mm	Polypropylene (PP) Metallized	Can Radial	Terminal Block	Chassis Stud Mount	123 µF	3 Phase Power Factor Correction (PFC)	415 V
KEMET C9TS5MD5770AARX	0.748 in	19 mm	55 °C	-25 °C	15 %	-5 %			2.953 in	75 mm	Polypropylene (PP) Metallized	Can Radial	Terminal Block	Chassis Stud Mount	77 µF	3 Phase Power Factor Correction (PFC)	415 V	232 mm	9.134 in
KEMET C9TS5MD6154AARX	0.748 in	19 mm	55 °C	-25 °C	15 %	-5 %	282 mm	11.102 in	3.346 "	85 mm	Polypropylene (PP) Metallized	Can Radial	Terminal Block	Chassis Stud Mount	154 µF	3 Phase Power Factor Correction (PFC)	415 V
KEMET C9TS5MD5615AARX	0.748 in	19 mm	55 °C	-25 °C	15 %	-5 %			3.346 "	85 mm	Polypropylene (PP) Metallized	Can Radial	Terminal Block	Chassis Stud Mount	61.5 µF	3 Phase Power Factor Correction (PFC)	415 V	162 mm	6.378 in
KEMET C9TS5MD5460AARX	0.748 in	19 mm	55 °C	-25 °C	15 %	-5 %			2.953 in	75 mm	Polypropylene (PP) Metallized	Can Radial	Terminal Block	Chassis Stud Mount	46 µF	3 Phase Power Factor Correction (PFC)	415 V	162 mm	6.378 in
KEMET C9TS5MD5311AARX	0.748 in	19 mm	55 °C	-25 °C	15 %	-5 %			2.953 in	75 mm	Polypropylene (PP) Metallized	Can Radial	Terminal Block	Chassis Stud Mount	31.1 µF	3 Phase Power Factor Correction (PFC)	415 V	162 mm	6.378 in
KEMET C9TS5MD5920AARX	0.748 in	19 mm	55 °C	-25 °C	15 %	-5 %			3.346 "	85 mm	Polypropylene (PP) Metallized	Can Radial	Terminal Block	Chassis Stud Mount	92.2 µF	3 Phase Power Factor Correction (PFC)	415 V	232 mm	9.134 in
KEMET C9TS5MD6108AARX	0.748 in	19 mm	55 °C	-25 °C	15 %	-5 %	282 mm	11.102 in	2.953 in	75 mm	Polypropylene (PP) Metallized	Can Radial	Terminal Block	Chassis Stud Mount	108 µF	3 Phase Power Factor Correction (PFC)	415 V
