OSTTJ08 Series

Catalog

TERM BLOCK PLUG 8POS STR 3.81MM

Part	Contact Material	Torque - Screw	Torque - Screw	Wire Strip Length [Max]	Wire Strip Length [Min]	Housing Material	Material Flammability Rating	Positions Per Level	Color	Wire Gauge or Range - mm²	Voltage - UL	Operating Temperature [Min]	Operating Temperature [Max]	Number of Levels	Type	Number of Positions	Mounting Type	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Pitch	Pitch	Termination Style	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Contact Mating Finish	Voltage - IEC

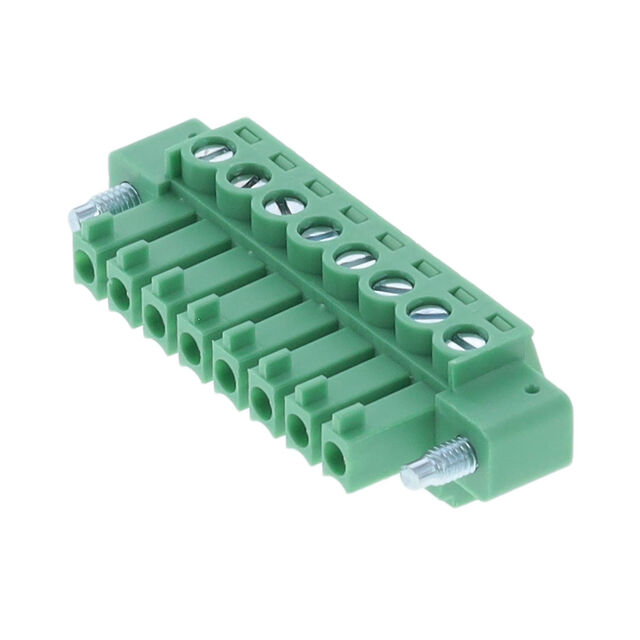

On Shore Technology Inc. OSTTJ0831520	Brass	0.28 Nm	2.5 Lb-In	7 mm	6 mm	Brass	UL94 V-0	8	Green	1.5 mm²	300 V	-30 ░C	105 ░C	1	Plug Female Sockets	8	Free Hanging (In-Line)	16 AWG	26 AWG	3.81 mm	0.15 in	Screw
On Shore Technology Inc. OSTTJ085152	Brass	0.56 Nm	5 Lb-In	8 mm	7 mm	Brass	UL94 V-0	8	Green		300 V	-30 ░C	105 ░C	1	Plug Female Sockets	8	Free Hanging (In-Line)	12 AWG	24 AWG	5.08 mm	0.2 in	Screw	0.34 mm˛	2.5 mm˛	0.34 mm²	2.5 mm²
On Shore Technology Inc. OSTTJ087152	Brass	0.56 Nm	5 Lb-In	8 mm	7 mm	Brass	UL94 V-0	8	Green		300 V	-30 ░C	105 ░C	1	Plug Female Sockets	8	Free Hanging (In-Line)	12 AWG	24 AWG	5 mm	0.197 in	Screw			0.34 mm²	2.5 mm²
On Shore Technology Inc. OSTTJ085183						Brass		8	Gray		300 V	-30 ░C	105 ░C	1	Plug Female Sockets	8	Free Hanging (In-Line)	12 AWG	24 AWG	5.08 mm	0.2 in	Screw	0.34 mm˛	2.5 mm˛	0.34 mm²	2.5 mm²	Tin	300 V

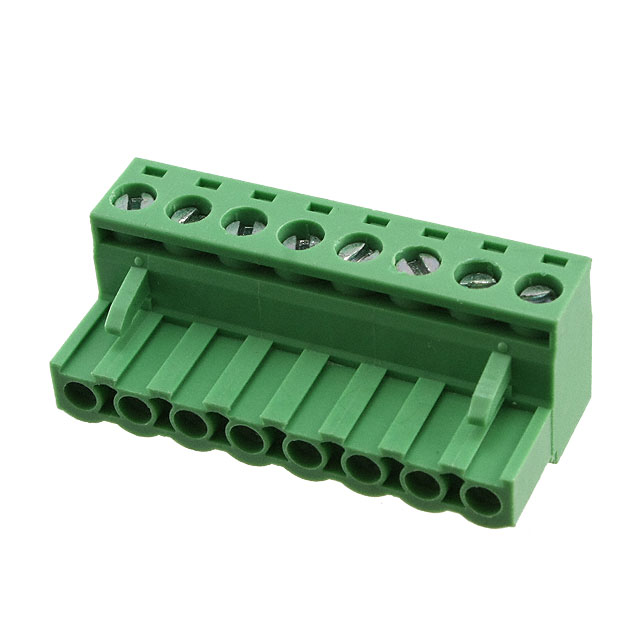

On Shore Technology Inc. OSTTJ085153	Brass	0.56 Nm	5 Lb-In	8 mm	7 mm	Brass	UL94 V-0	8	Green		300 V	-30 ░C	105 ░C	1	Plug Female Sockets	8	Free Hanging (In-Line)	12 AWG	24 AWG	5.08 mm	0.2 in	Screw	0.34 mm˛	2.5 mm˛	0.34 mm²	2.5 mm²	Tin	300 V
On Shore Technology Inc. OSTTJ087150	Brass	0.56 Nm	5 Lb-In	8 mm	7 mm	Brass	UL94 V-0	8	Green		300 V	-40 C	115 °C	1	Plug Female Sockets	8	Free Hanging (In-Line)	12 AWG	30 AWG	5 mm	0.197 in	Screw	0.34 mm˛	2.5 mm˛	0.34 mm²	2.5 mm²
On Shore Technology Inc. OSTTJ085103	Brass	0.56 Nm	5 Lb-In	8 mm	7 mm	Brass	UL94 V-0	8	Black		300 V	-30 ░C	105 ░C	1	Plug Female Sockets	8	Free Hanging (In-Line)	12 AWG	24 AWG	5.08 mm	0.2 in	Screw	0.34 mm˛	2.5 mm˛	0.34 mm²	2.5 mm²	Tin	300 V
