OMF 63 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

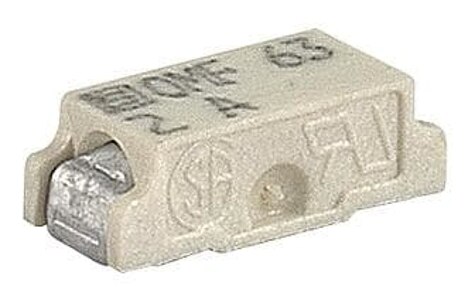

SURFACE MOUNT FUSES OMF 63V 375MA
| Part | Breaking Capacity @ Rated Voltage | Package / Case | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Voltage Rating - AC | Melting I²t | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Fuse Type | Mounting Type | Response Time | Voltage Rating - DC | Melting I˛t |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 50 A | 2-SMD J-Lead | 0.122 in | 0.102 in | 2.6 mm | 7.4 mm | 0.291 in | 3.1 mm | 63 V | 0.013 I²t | -55 C | 125 °C | 375 mA | Board Mount (Cartridge Style Excluded) | Surface Mount | Fast Blow | 63 VDC | |
SCHURTER Inc. | 50 A | 2-SMD J-Lead | 0.122 in | 0.102 in | 2.6 mm | 7.4 mm | 0.291 in | 3.1 mm | 63 V | 0.97 | -55 C | 125 °C | 2.5 A | Board Mount (Cartridge Style Excluded) | Surface Mount | Fast Blow | 63 VDC | |
 SCHURTER Inc. | 50 A | 2-SMD J-Lead | 0.122 in | 0.102 in | 2.6 mm | 7.4 mm | 0.291 in | 3.1 mm | 63 V | 1.6 | -55 C | 125 °C | 3.5 A | Board Mount (Cartridge Style Excluded) | Surface Mount | Fast Blow | 63 VDC | 1.6 |
SCHURTER Inc. | 50 A | 2-SMD J-Lead | 0.122 in | 0.102 in | 2.6 mm | 7.4 mm | 0.291 in | 3.1 mm | 63 V | 0.01 | -55 C | 125 °C | 0.5 A | Board Mount (Cartridge Style Excluded) | Surface Mount | Fast Blow | 63 VDC | |
SCHURTER Inc. | 50 A | 2-SMD J-Lead | 0.122 in | 0.102 in | 2.6 mm | 7.4 mm | 0.291 in | 3.1 mm | 63 V | 0.016 | -55 C | 125 °C | 400 mA | Board Mount (Cartridge Style Excluded) | Surface Mount | Fast Blow | 63 VDC | 0.016 |
SCHURTER Inc. | 50 A | 2-SMD J-Lead | 0.122 in | 0.102 in | 2.6 mm | 7.4 mm | 0.291 in | 3.1 mm | 63 V | 0.44 | -55 C | 125 °C | 2 A | Board Mount (Cartridge Style Excluded) | Surface Mount | Fast Blow | 63 VDC | 0.44 |
 SCHURTER Inc. | 50 A | 2-SMD J-Lead | 0.122 in | 0.102 in | 2.6 mm | 7.4 mm | 0.291 in | 3.1 mm | 63 V | 0.0018 | -55 C | 125 °C | 160 mA | Board Mount (Cartridge Style Excluded) | Surface Mount | Fast Blow | 63 VDC | |
SCHURTER Inc. | 50 A | 2-SMD J-Lead | 0.122 in | 0.102 in | 2.6 mm | 7.4 mm | 0.291 in | 3.1 mm | 63 V | 0.14 | -55 C | 125 °C | 1.25 A | Board Mount (Cartridge Style Excluded) | Surface Mount | Fast Blow | 63 VDC | |
SCHURTER Inc. | 50 A | 2-SMD J-Lead | 0.122 in | 0.102 in | 2.6 mm | 7.4 mm | 0.291 in | 3.1 mm | 63 V | 0.00011 | -55 C | 125 °C | 63 mA | Board Mount (Cartridge Style Excluded) | Surface Mount | Fast Blow | 63 VDC | 0.00011 |
SCHURTER Inc. | 50 A | 2-SMD J-Lead | 0.122 in | 0.102 in | 2.6 mm | 7.4 mm | 0.291 in | 3.1 mm | 63 V | 0.00067 I²t | -55 C | 125 °C | 100 mA | Board Mount (Cartridge Style Excluded) | Surface Mount | Fast Blow | 63 VDC |
