MPM12 Series

Manufacturer: ULTRAVOLT / Advanced Energy

Catalog

DC DC CONVERTER 17-100V 15W

Part	Type	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Current - Output (Max) [Max]	Number of Outputs	Control Features	Applications	Power (Watts)	Voltage - Input (Max) [Max]	Features	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Mounting Type	Approval Agency	Voltage - Input (Min) [Min]	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Voltage - Output 1 [Min] [z]	Voltage - Output 1 [Max] [z]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Output 1 [Max]
ULTRAVOLT / Advanced Energy MPM12-100PI	High Voltage - Isolated Module	-10 °C	60 °C	4-DIP Module	15 mA	1	Active High Enable	ITE (Commercial)	15 W	12 V	Adjustable Output	0.79 in	1.5 "	1.5 in	38.1 mm	38.1 mm	20.1 mm	Through Hole	CE	2 V
ULTRAVOLT / Advanced Energy MPM12-300PI	High Voltage - Isolated Module	-10 °C	60 °C	4-DIP Module	5 mA	1	Active High Enable	ITE (Commercial)	15 W	12 V	Adjustable Output	0.79 in	1.5 "	1.5 in	38.1 mm	38.1 mm	20.1 mm	Through Hole	CE	2 V	300 V	50 V
ULTRAVOLT / Advanced Energy MPM12-100N	High Voltage - Isolated Module	-10 °C	60 °C	4-DIP Module	15 mA	1	Active Low Enable	ITE (Commercial)	15 W	12 V	Adjustable Output	0.79 in	1.5 "	1.5 in	38.1 mm	38.1 mm	20.1 mm	Through Hole	CE	2 V	-100 V	-17 V

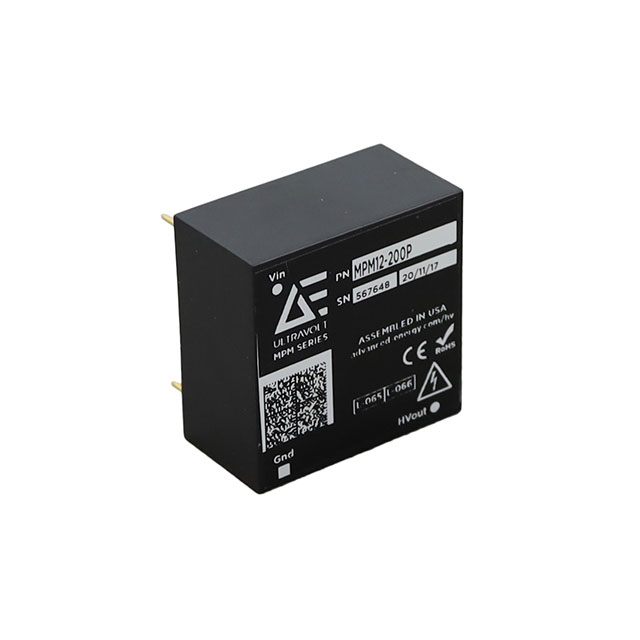

ULTRAVOLT / Advanced Energy MPM12-200P	High Voltage - Isolated Module	-10 °C	60 °C	4-DIP Module	7.5 mA	1	Active High Enable	ITE (Commercial)	1.5 W 15 W	12 V	Adjustable Output	0.79 in	1.5 "	1.5 in	38.1 mm	38.1 mm	20.1 mm	Through Hole	CE	2 V			34 V	200 V
ULTRAVOLT / Advanced Energy MPM12-2KPS	High Voltage - Isolated Module	-10 °C	60 °C	4-DIP Module	0.75 mA	1	Active High Enable	ITE (Commercial)	15 W	12 V	Adjustable Output	0.85 "	1.55 "	1.55 "		39.4 mm		Through Hole	CE	2 V		334 V			21.6 mm	39.4 mm	2000 V
ULTRAVOLT / Advanced Energy MPM12-300NSI	High Voltage - Isolated Module	-10 °C	60 °C	4-DIP Module	5 mA	1	Active Low Enable	ITE (Commercial)	15 W	12 V	Adjustable Output	0.85 "	1.55 "	1.55 "		39.4 mm		Through Hole	CE	2 V	-300 V	-50 V			21.6 mm	39.4 mm
ULTRAVOLT / Advanced Energy MPM12-3KPS	High Voltage - Isolated Module	-10 °C	60 °C	4-DIP Module	0.5 mA	1	Active High Enable	ITE (Commercial)	15 W	12 V	Adjustable Output	0.85 "	1.55 "	1.55 "		39.4 mm		Through Hole	CE	2 V	3000 V	500 V			21.6 mm	39.4 mm
ULTRAVOLT / Advanced Energy MPM12-1K5NI	High Voltage - Isolated Module	-10 °C	60 °C	4-DIP Module	1 mA	1	Active Low Enable	ITE (Commercial)	15 W	12 V	Adjustable Output	0.79 in	1.5 "	1.5 in	38.1 mm	38.1 mm	20.1 mm	Through Hole	CE	2 V	-1500 V	-250 V
ULTRAVOLT / Advanced Energy MPM12-200PS	High Voltage - Isolated Module	-10 °C	60 °C	4-DIP Module	7.5 mA	1	Active High Enable	ITE (Commercial)	15 W	12 V	Adjustable Output	0.85 "	1.55 "	1.55 "		39.4 mm		Through Hole	CE	2 V			34 V	200 V	21.6 mm	39.4 mm
ULTRAVOLT / Advanced Energy MPM12-2KPSI	High Voltage - Isolated Module	-10 °C	60 °C	4-DIP Module	0.75 mA	1	Active High Enable	ITE (Commercial)	15 W	12 V	Adjustable Output	0.85 "	1.55 "	1.55 "		39.4 mm		Through Hole	CE	2 V		334 V			21.6 mm	39.4 mm	2000 V
