TLP5214 Series

Catalog

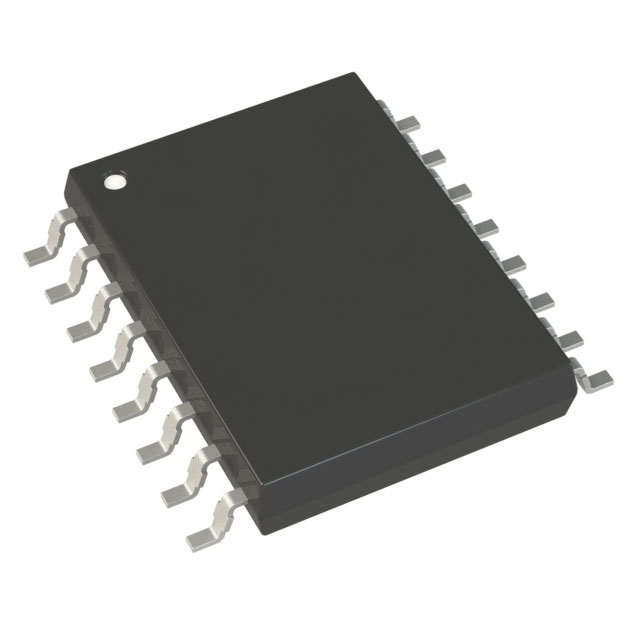

OPTOCOUPLER DRIVE 1-CH 30V 1500V 16-PIN SO TUBE

Part	Number of Channels [custom]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Voltage - Forward (Vf) (Typ)	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Package / Case	Package / Case	Technology	Mounting Type	Approval Agency	Current - Peak Output	Supplier Device Package	Common Mode Transient Immunity (Min) [Min]	Voltage - Output Supply [Min]	Voltage - Output Supply [Max]	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Current - DC Forward (If) (Max) [Max]	Propagation Delay tpLH / tpHL (Max) [Max]	Pulse Width Distortion (Max) [Max]
Toshiba Semiconductor and Storage TLP5214A(E	1	18 ns	32 ns	1.7 V	-40 C	110 °C	16-SOIC	7.5 mm	0.295 "	Optical Coupling	Surface Mount	CSA cUL UL VDE	4 A	16-SO	35 kV/µs	15 V	30 V	4 A	4 A	25 mA	150 ns	50 ns
Toshiba Semiconductor and Storage TLP5214(TP,E	1	18 ns	32 ns	1.7 V	-40 C	110 °C	16-SOIC	7.5 mm	0.295 "	Optical Coupling	Surface Mount	CQC CSA cUL UL	4 A	16-SO	35 kV/µs	15 V	30 V	3 A	3 A	25 mA	150 ns	50 ns
Toshiba Semiconductor and Storage TLP5214A(D4,E	1	18 ns	32 ns	1.7 V	-40 C	110 °C	16-SOIC	7.5 mm	0.295 "	Optical Coupling	Surface Mount	CSA cUL UL VDE	4 A	16-SO	35 kV/µs	15 V	30 V	4 A	4 A	25 mA	150 ns	50 ns
Toshiba Semiconductor and Storage TLP5214(D4-TP,E	1	18 ns	32 ns	1.7 V	-40 C	110 °C	16-SOIC	7.5 mm	0.295 "	Optical Coupling	Surface Mount	CQC CSA cUL UL VDE	4 A	16-SO	35 kV/µs	15 V	30 V	3 A	3 A	25 mA	150 ns	50 ns
