WR-40SB Series

Catalog

CONN RCPT 40POS SMD GOLD

Part	Height Above Board [z]	Height Above Board [z]	Number of Positions	Features	Contact Finish	Connector Type	Mounting Type	Number of Rows [custom]	Pitch	Pitch	Mated Stacking Heights	Contact Finish Thickness	Contact Finish Thickness	Height Above Board	Height Above Board

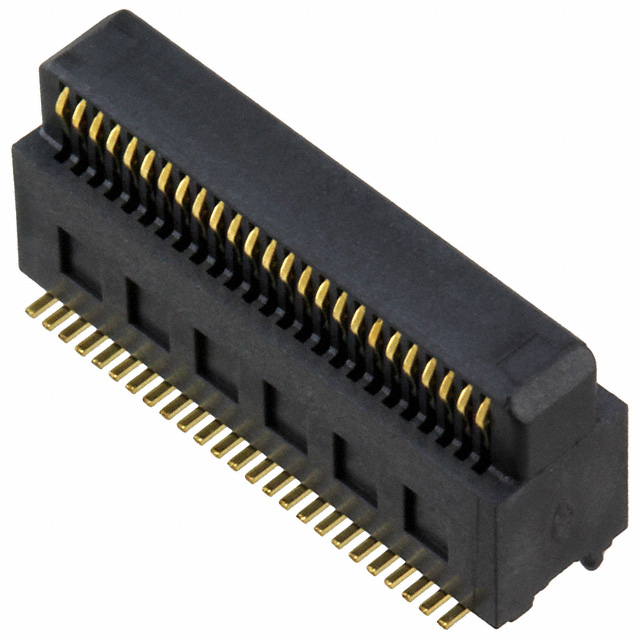

JAE Electronics WR-40SB-VFH05-N1	0.148 in	3.75 mm	40	Board Guide	Gold	Receptacle Center Strip Contacts	Surface Mount	2	0.02 "	0.5 mm	4.5 mm 5.5 mm 6.5 mm	0.1 Ám	4 Áin
JAE Electronics WR-40SB-VF-N1			40	Board Guide	Gold	Receptacle Center Strip Contacts	Surface Mount	2	0.02 "	0.5 mm	4 mm 5 mm 6 mm	0.1 Ám	4 Áin	0.128 in	3.25 mm
JAE Electronics WR-40SB-VFH30-N1-R1000	0.246 in		40	Board Guide	Gold	Receptacle Center Strip Contacts	Surface Mount	2	0.02 "	0.5 mm	7 mm 8 mm 9 mm	0.1 Ám	4 Áin		6.25 mm

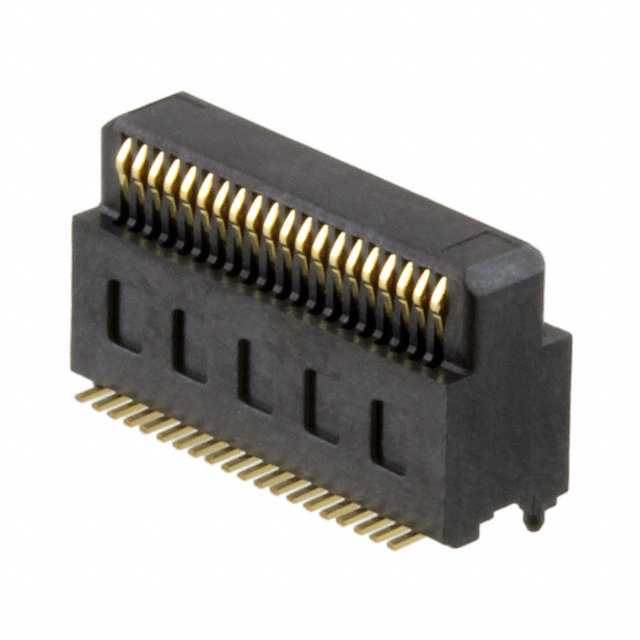

JAE Electronics WR-40SB-VFH30-N1	0.246 in		40	Board Guide	Gold	Receptacle Center Strip Contacts	Surface Mount	2	0.02 "	0.5 mm	7 mm 8 mm 9 mm	0.1 Ám	4 Áin		6.25 mm
