333-019 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 19POS 0.156

Part	Material - Insulation	Termination Rows	Contact Material	Number of Positions	Mounting Type	Number of Positions/Bay/Row	Termination	Flange Feature	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Gender	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Read Out	Card Type	Card Thickness [Max]	Card Thickness [Min]	Pitch	Pitch	Number of Rows	Color	Flange Feature [diameter]	Flange Feature [diameter]

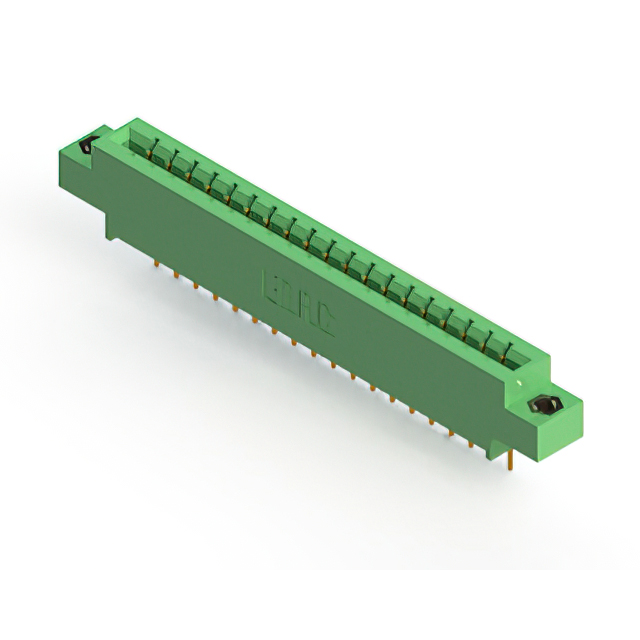

EDAC Inc. 333-019-523-607	Polyester Thermoplastic	1	Copper Alloy	19	Through Hole	19	Solder	M3 Threaded Insert Top Mount Opening	-40 C	105 ░C	Cantilever	Female	Gold	0.25 Ám	10 Áin	Single	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	1	Green
EDAC Inc. 333-019-520-608	Polyester Thermoplastic	1	Copper Alloy	19	Through Hole	19	Solder	4-40 Threaded Insert Top Mount Opening	-40 C	105 ░C	Cantilever	Female	Gold	0.25 Ám	10 Áin	Single	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	1	Green

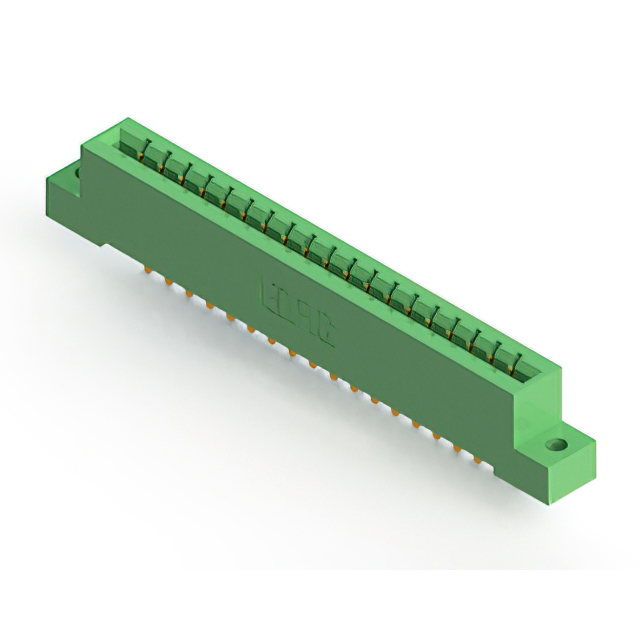

EDAC Inc. 333-019-500-102	Diallyl Phthalate (DAP)	1	Copper Alloy	19	Through Hole	19	Solder Eyelet(s)	Flush Mount Top Opening Unthreaded	-40 C	105 ░C	Cantilever	Female	Gold	0.25 Ám	10 Áin	Single	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	1	Green	3.25 mm	0.128 "

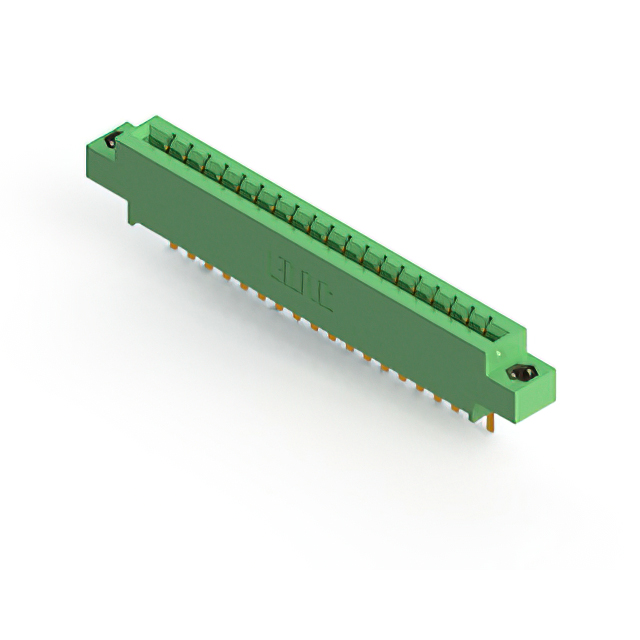

EDAC Inc. 333-019-544-608	Polyester Thermoplastic	1	Copper Alloy	19	Through Hole	19	Wire Wrap	4-40 Threaded Insert Top Mount Opening	-40 C	105 ░C	Cantilever	Female	Gold	0.25 Ám	10 Áin	Single	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	1	Green

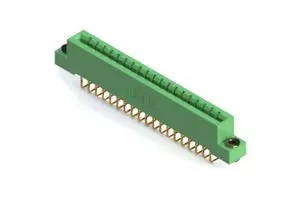

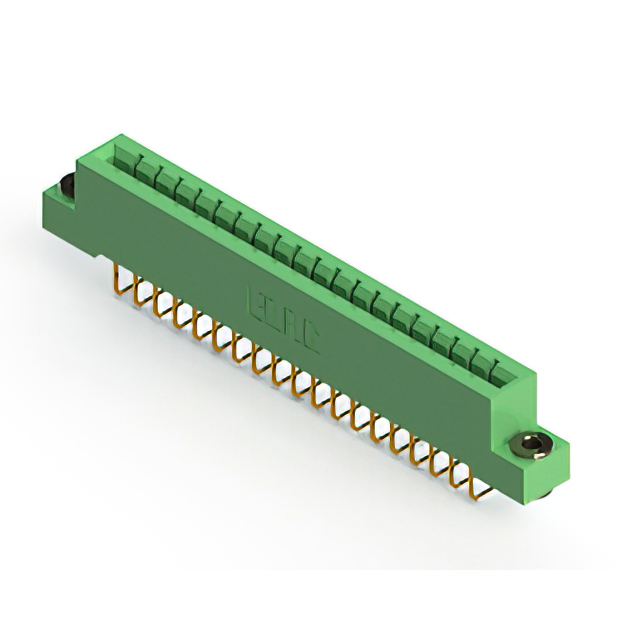

EDAC Inc. 333-019-558-103	Polyester Thermoplastic	1	Copper Alloy	19	Right Angle Through Hole	19	Solder	Floating Bobbin Flush Mount	-40 C	105 ░C	Cantilever	Female	Gold	0.25 Ám	10 Áin	Single	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	1	Green	2.95 mm	0.116 "

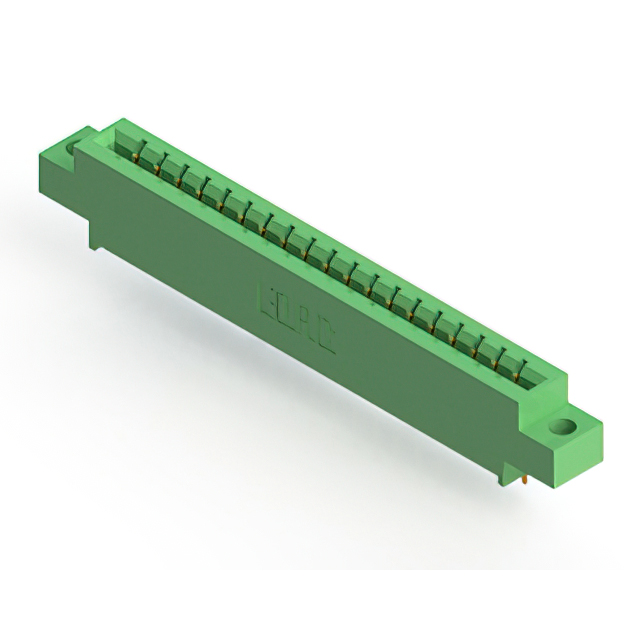

EDAC Inc. 333-019-520-604	Polyester Thermoplastic	1	Copper Alloy	19	Through Hole	19	Solder		-40 C	105 ░C	Cantilever	Female	Gold	0.25 Ám	10 Áin	Single	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	1	Green	3.96 mm	0.156 "
EDAC Inc. 333-019-500-104	Diallyl Phthalate (DAP)	1	Copper Alloy	19	Through Hole	19	Solder Eyelet(s)	Flush Mount Top Opening Unthreaded	-40 C	105 ░C	Cantilever	Female	Gold	0.25 Ám	10 Áin	Single	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	1	Green	3.96 mm	0.156 "
EDAC Inc. 333-019-500-603	Diallyl Phthalate (DAP)	1	Copper Alloy	19	Through Hole	19	Solder Eyelet(s)	Floating Bobbin Top Mount Opening	-40 C	105 ░C	Cantilever	Female	Gold	0.25 Ám	10 Áin	Single	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	1	Green	2.95 mm	0.116 "

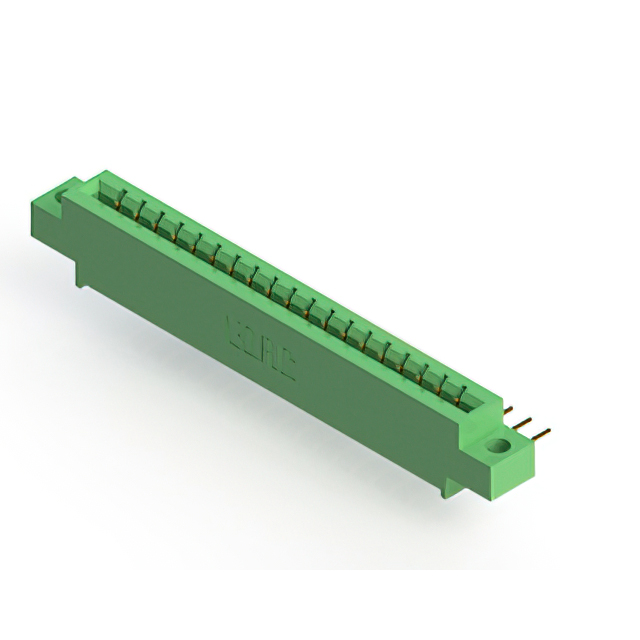

EDAC Inc. 333-019-559-604	Polyester Thermoplastic	1	Copper Alloy	19	Right Angle Through Hole	19	Wire Wrap		-40 C	105 ░C	Cantilever	Female	Gold	0.25 Ám	10 Áin	Single	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	1	Green	3.96 mm	0.156 "

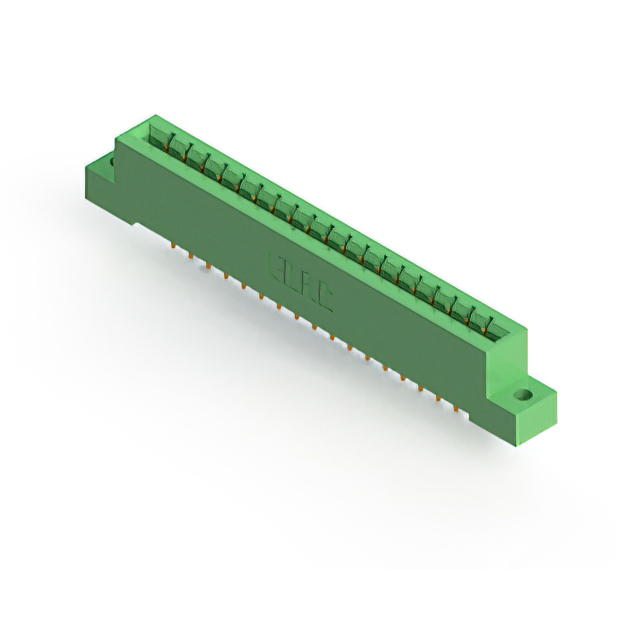

EDAC Inc. 333-019-541-102	Polyester Thermoplastic	1	Copper Alloy	19	Through Hole	19	Wire Wrap	Flush Mount Top Opening Unthreaded	-40 C	105 ░C	Cantilever	Female	Gold	0.25 Ám	10 Áin	Single	Non Specified - Single Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	1	Green	3.25 mm	0.128 "
