VPB Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

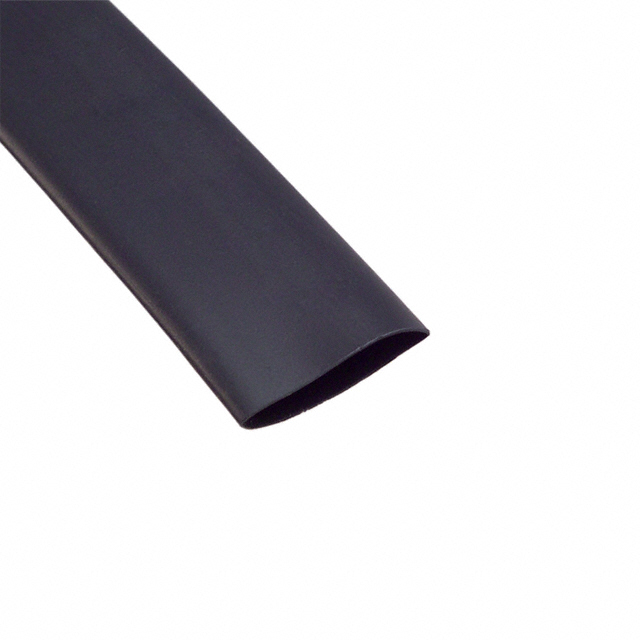

HEATSHRINK 3" BLACK

Part	Recovered Wall Thickness	Recovered Wall Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Features	Color	Shrink Temperature	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Material	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Type	Inner Diameter - Recovered	Spool Size [x]	Spool Size [x]	Length	Inner Diameter - Supplied [diameter]
TE Connectivity AMP Connectors VPB-3-0-SP-CS5444	1.65 mm	0.065 in	-55 C	150 °C	76.2 mm	3 in	Flame Retardant	Black	100 °C	1	2	Fluoroelastomer (FKM)	38.1 mm	1.5 in	Tubing Flexible
TE Connectivity AMP Connectors VPB-1-1/2-0-SP	1.4 mm	0.055 in	-55 C	150 °C	38.1 mm	1.5 in	Flame Retardant	Black	100 °C	1	2	Fluoroelastomer (FKM)	19.05 mm	0.75 "	Tubing Flexible
TE Connectivity AMP Connectors VPB-3/16-0SPCS5444	0.89 mm	0.035 in	-55 C	150 °C	4.75 mm	0.187 "	Flame Retardant	Black	100 °C	1	2	Fluoroelastomer (FKM)	2.36 mm	0.093 in	Tubing Flexible
TE Connectivity AMP Connectors VPB-2-0-SP	1.65 mm	0.065 in	-55 C	150 °C	50.8 mm	2 in	Flame Retardant	Black	100 °C	1	2	Fluoroelastomer (FKM)		1 in	Tubing Flexible	25.4 mm
TE Connectivity AMP Connectors VPB-2-1/2-0SPCS5444	1.65 mm	0.065 in	-55 C	150 °C	63.5 mm	2.5 in	Flame Retardant	Black	100 °C	1	2	Fluoroelastomer (FKM)	31.75 mm	1.25 in	Tubing Flexible
TE Connectivity AMP Connectors VPB-5/8-0-SP	1.07 mm	0.042 in	-55 C	150 °C	15.88 mm	0.625 in	Flame Retardant	Black	100 °C	1	2	Fluoroelastomer (FKM)	8 mm	0.315 in	Tubing Flexible		200 ft	61 m	Enter Number of Feet in Order Quantity
TE Connectivity AMP Connectors VPB-1/4-0SPCS5444	0.89 mm	0.035 in	-55 C	150 °C	0.25 "		Flame Retardant	Black	100 °C	1	2	Fluoroelastomer (FKM)	3.18 mm	0.125 in	Tubing Flexible					6.35 mm
TE Connectivity AMP Connectors VPB-1-1/2-0-SP-CS7733	1.4 mm	0.055 in	-55 C	150 °C	38.1 mm	1.5 in	Flame Retardant	Black	100 °C	1	2	Fluoroelastomer (FKM)	19.05 mm	0.75 "	Tubing Flexible
TE Connectivity AMP Connectors VPB-1-0SPCS5444	1.24 mm	0.049 in	-55 C	150 °C	25.4 mm	1 in	Flame Retardant	Black	100 °C	1	2	Fluoroelastomer (FKM)	12.7 mm	0.5 "	Tubing Flexible
TE Connectivity AMP Connectors VPB-1-1/2-0-SP-CS7180	1.4 mm	0.055 in	-55 C	150 °C	38.1 mm	1.5 in	Flame Retardant	Black	100 °C	1	2	Fluoroelastomer (FKM)	19.05 mm	0.75 "	Tubing Flexible
