9WG1212 Series

Catalog

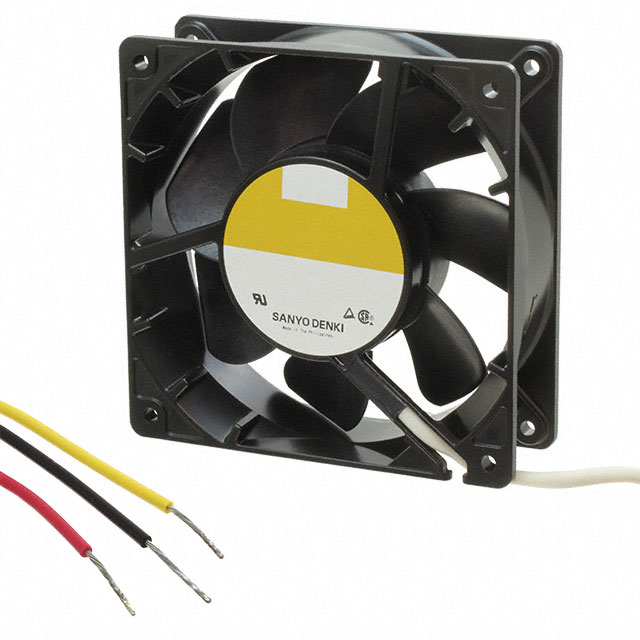

FAN AXIAL 120X38MM 12VDC WIRE

Part	Current Rating (Amps)	Material - Frame	Voltage Range [Min]	Voltage Range [Max]	Lifetime @ Temp.	Material - Blade	Fan Type	Ingress Protection	Size / Dimension [z]	Size / Dimension [x]	Voltage - Rated	Static Pressure	Static Pressure	Approval Agency	Noise	Bearing Type	Termination	Air Flow	Air Flow	Features	Power (Watts)	RPM	Operating Temperature [Min]	Operating Temperature [Max]	Weight	Weight	Width [y]
Sanyo Denki America Inc. 9WG1212E1D01-E	0.61 A	Aluminum	10.2 VDC	13.8 VDC	80000 Hrs	Plastic	Tubeaxial	IP55 - Dust Protected Water Resistant	120 mm	120 mm	12 VDC	0.402 in H2O	100.1 Pa	CSA TUV UL	46 dB(A)	Ball	3 Wire Leads	118 CFM	3.3 m³/min	Locked Rotor Sensor	7.32 W	3100 RPM	-20 ░C	70 °C	410.05 g	0.904 lb	38 mm
Sanyo Denki America Inc. 9WG1212H101-E	0.38 A	Aluminum	7 V	13.8 VDC	100000 Hrs	Plastic	Tubeaxial	IP55 - Dust Protected Water Resistant	120 mm	120 mm	12 VDC	0.283 in H2O	70.5 Pa	CSA TUV UL	39 dB(A)	Ball	3 Wire Leads	99 CFM	2.77 m³/min	Locked Rotor Protection Speed Sensor (Tach)	4.56 W	2600 RPM	-20 ░C	70 °C	410.05 g	0.904 lb	38 mm
Sanyo Denki America Inc. 9WG1212E101-E	0.61 A	Aluminum	10.2 VDC	13.8 VDC	80000 Hrs	Plastic	Tubeaxial	IP55 - Dust Protected Water Resistant	120 mm	120 mm	12 VDC	0.402 in H2O	100.1 Pa	CSA TUV UL	46 dB(A)	Ball	3 Wire Leads	118 CFM	3.3 m³/min	Locked Rotor Protection Speed Sensor (Tach)	7.32 W	3100 RPM	-20 ░C	70 °C	410.05 g	0.904 lb	38 mm
Sanyo Denki America Inc. 9WG1212M101-E	0.21 A	Aluminum	7 V	13.8 VDC	100000 Hrs	Plastic	Tubeaxial	IP55 - Dust Protected Water Resistant	120 mm	120 mm	12 VDC	0.159 in H2O	39.6 Pa	CSA TUV UL	32 dB	Ball	3 Wire Leads	74 CFM	2.07 mł/min	Speed Sensor (Tach)	2.52 W	1950 RPM	-20 ░C	70 °C	410.05 g	0.904 lb	38 mm
Sanyo Denki America Inc. 9WG1212G102-E	0.98 A	Aluminum	10.2 VDC	13.8 VDC	80000 Hrs	Plastic	Tubeaxial	IP55 - Dust Protected Water Resistant	120 mm	120 mm	12 VDC	0.542 in H2O	135 Pa	CSA TUV UL	49 dB	Ball	2 Wire Leads	137 CFM	3.84 m³/min		11.76 W	3600 RPM	-20 ░C	70 °C	410.05 g	0.904 lb	38 mm
Sanyo Denki America Inc. 9WG1212F101-E	0.28 A	Aluminum	7 V	13.8 VDC	100000 Hrs	Plastic	Tubeaxial	IP55 - Dust Protected Water Resistant	120 mm	120 mm	12 VDC	0.218 in H2O	54.3 Pa	CSA TUV UL	36 dB	Ball	3 Wire Leads	87 CFM	2.44 m³/min	Speed Sensor (Tach)	3.36 W	2280 RPM	-20 ░C	70 °C	410.05 g	0.904 lb	38 mm
Sanyo Denki America Inc. 9WG1212F102-E	0.28 A	Aluminum	7 V	13.8 VDC	100000 Hrs	Plastic	Tubeaxial	IP55 - Dust Protected Water Resistant	120 mm	120 mm	12 VDC	0.218 in H2O	54.3 Pa	CSA TUV UL	36 dB	Ball	2 Wire Leads	87 CFM	2.44 m³/min		3.36 W	2280 RPM	-20 ░C	70 °C	410.05 g	0.904 lb	38 mm
