RPS-500 Series

Catalog

AC/DC CONVERTER 18V 500W

Part	Voltage - Output 1	Features	Applications	Approval Agency	Mounting Type	Number of Outputs	Current - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Type	Efficiency	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [y]	Power (Watts)

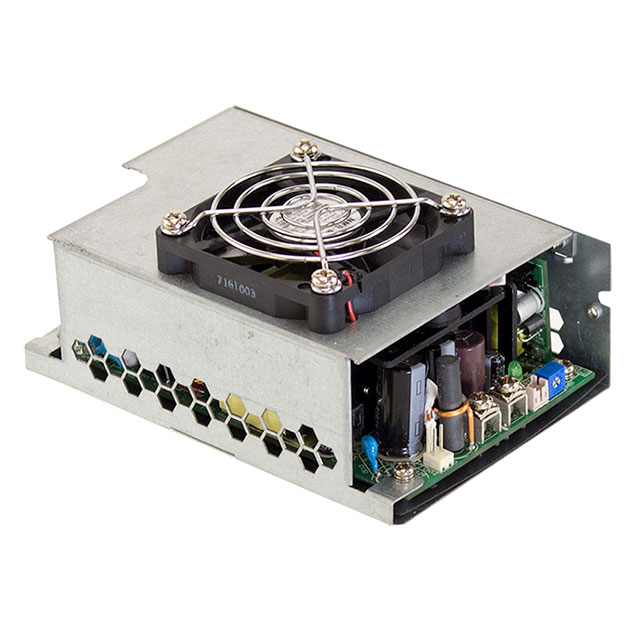

MEAN WELL USA Inc. RPS-500-18-TF	18 V	Adjustable Output PFC Remote Sense Standby Output Universal Input	Medical	CB CE cURus EAC TUV	Chassis Mount	1	27.8 A	80 VAC 113 VDC	264 VAC 370 VDC	500 W	-30 °C	70 °C	3.39 "	58.5 mm	86 mm	5.12 in	2.3 in	130 mm	Enclosed	92.5 %	4000 V

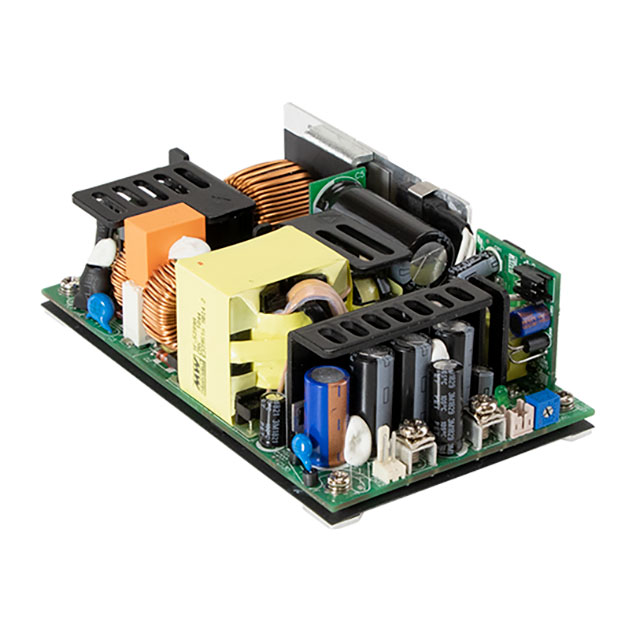

MEAN WELL USA Inc. RPS-500-18	18 V	Adjustable Output PFC Remote Sense Universal Input	Medical	CB CE cURus EAC TUV	Chassis Mount	1	17.8 A	80 VAC 113 VDC	264 VAC 370 VDC	320 W 500 W	-30 °C	70 °C	3 "			5 "	1.69 in	127 mm	Open Frame	92.5 %	4000 V	43 mm	76.2 mm

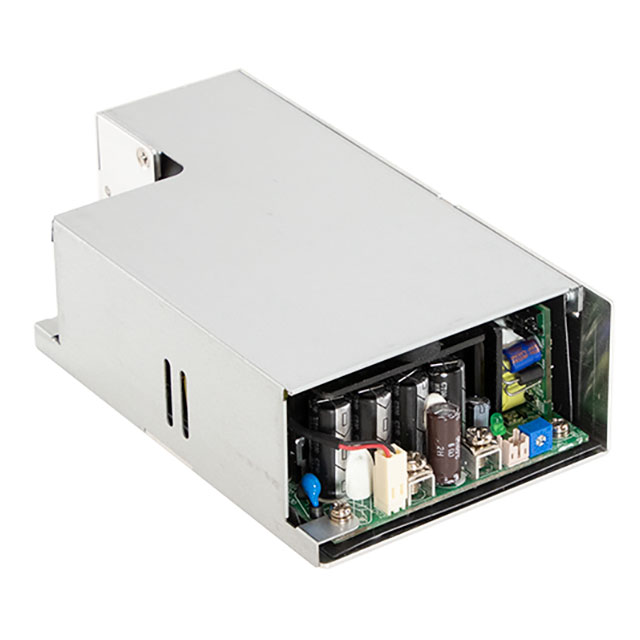

MEAN WELL USA Inc. RPS-500-12-SF	12 V	Adjustable Output PFC Remote Sense Standby Output Universal Input	Medical	CB CE cURus EAC TUV	Chassis Mount	1	41.6 A	80 VAC 113 VDC	264 VAC 370 VDC	499 W	-30 °C	70 °C	3.39 "			6.3 in	1.69 in	160 mm	Enclosed	91 %	4000 V	43 mm	86 mm
MEAN WELL USA Inc. RPS-500-24	24 V	Adjustable Output PFC Remote Sense Universal Input	Medical	CB CE cURus EAC TUV	Chassis Mount	1	13.4 A	80 VAC 113 VDC	264 VAC 370 VDC	322 W	-30 °C	70 °C	3 "			5 "	1.69 in	127 mm	Open Frame	93 %	4000 V	43 mm	76.2 mm	500 W
MEAN WELL USA Inc. RPS-500-24-TF	24 V	Adjustable Output PFC Remote Sense Standby Output Universal Input	Medical	CB CE cURus EAC TUV	Chassis Mount	1	20.8 A	80 VAC 113 VDC	264 VAC 370 VDC	499 W	-30 °C	70 °C	3.39 "	58.5 mm	86 mm	5.12 in	2.3 in	130 mm	Enclosed	93 %	4000 V
MEAN WELL USA Inc. RPS-500-48-TF	48 V	Adjustable Output PFC Remote Sense Standby Output Universal Input	Medical	CB CE cURus EAC TUV	Chassis Mount	1	10.4 A	80 VAC 113 VDC	264 VAC 370 VDC	499 W	-30 °C	70 °C	3.39 "	58.5 mm	86 mm	5.12 in	2.3 in	130 mm	Enclosed	94 %	4000 V
MEAN WELL USA Inc. RPS-500-48	48 V	Adjustable Output PFC Remote Sense Universal Input	Medical	CB CE cURus EAC TUV	Chassis Mount	1	6.7 A	80 VAC 113 VDC	264 VAC 370 VDC	322 W	-30 °C	70 °C	3 "			5 "	1.69 in	127 mm	Open Frame	94 %	4000 V	43 mm	76.2 mm	500 W
MEAN WELL USA Inc. RPS-500-27-SF	27 V	Adjustable Output PFC Remote Sense Standby Output Universal Input	Medical	CB CE cURus EAC TUV	Chassis Mount	1	18.5 A	80 VAC 113 VDC	264 VAC 370 VDC	500 W	-30 °C	70 °C	3.39 "			6.3 in	1.69 in	160 mm	Enclosed	93.5 %	4000 V	43 mm	86 mm
MEAN WELL USA Inc. RPS-500-15-SF	15 V	Adjustable Output PFC Remote Sense Standby Output Universal Input	Medical	CB CE cURus EAC TUV	Chassis Mount	1	33.3 A	80 VAC 113 VDC	264 VAC 370 VDC	500 W	-30 °C	70 °C	3.39 "			6.3 in	1.69 in	160 mm	Enclosed	92 %	4000 V	43 mm	86 mm
MEAN WELL USA Inc. RPS-500-24-SF	24 V	Adjustable Output PFC Remote Sense Standby Output Universal Input	Medical	CB CE cURus EAC TUV	Chassis Mount	1	20.8 A	80 VAC 113 VDC	264 VAC 370 VDC	499 W	-30 °C	70 °C	3.39 "			6.3 in	1.69 in	160 mm	Enclosed	93 %	4000 V	43 mm	86 mm
