OSTFW Series

Catalog

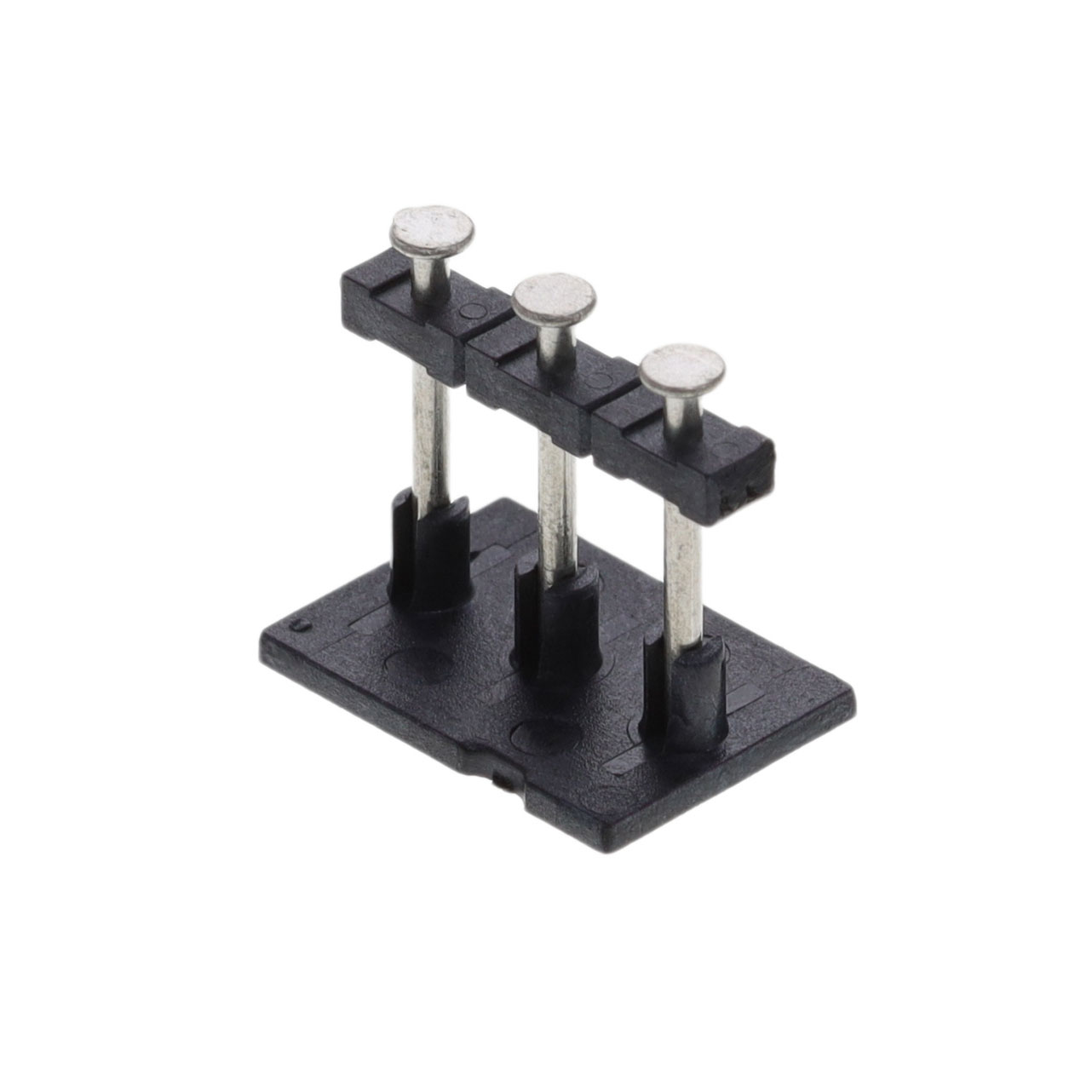

5.00MM 3 POS SMT HDR W/COVER

Part	Insulation Height	Insulation Height	Contact Material	Material Flammability Rating	Housing Material	Voltage - UL	Positions Per Level	Type	Color	Mounting Type	Pitch	Pitch	Number of Levels	Header Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Current - UL	Termination Style	Contact Mating Finish	Number of Positions
On Shore Technology Inc. OSTFW030000	0.465 in	11.8 mm	Brass	UL94 V-0	Nylon 6T Polyamide (PA6T)	300 V	3	Header Male Pins Unshrouded	Black	Surface Mount	0.197 in	5 mm	1	Vertical	115 °C	-40 C	10 A	Solder	Tin
On Shore Technology Inc. OSTFW020000	0.465 in	11.8 mm	Brass	UL94 V-0	Nylon 6T Polyamide (PA6T)	300 V	2	Header Male Pins Unshrouded	Black	Surface Mount	0.197 in	5 mm	1	Vertical	115 °C	-40 C	10 A	Solder	Tin	2
On Shore Technology Inc. OSTFW060000	0.465 in	11.8 mm	Brass	UL94 V-0	Nylon 6T Polyamide (PA6T)	300 V	6	Header Male Pins Unshrouded	Black	Surface Mount	0.197 in	5 mm	1	Vertical	115 °C	-40 C	10 A	Solder	Tin	6
