896-098 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 98POS 0.125

Part	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Color	Number of Positions	Read Out	Contact Finish	Mounting Type	Card Type	Gender	Number of Rows	Pitch [x]	Pitch [x]	Material - Insulation	Flange Feature	Contact Type	Termination	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Termination Rows	Number of Positions/Bay/Row [custom]	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 896-098-520-808	10 Áin	0.25 Ám	Copper Alloy	Black	98	Dual	Gold	Through Hole	Non Specified - Dual Edge	Female	2	0.125 in	3.18 mm	Polyphenylene Sulfide (PPS)	4-40 Threaded Insert Top Mount Opening	Cantilever	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	2	49
EDAC Inc. 896-098-521-804	10 Áin	0.25 Ám	Copper Alloy	Black	98	Dual	Gold	Through Hole	Non Specified - Dual Edge	Female	2	0.125 in	3.18 mm	Polyphenylene Sulfide (PPS)	Top Mount Opening Unthreaded	Cantilever	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	2	49	0.156 in	3.96 mm

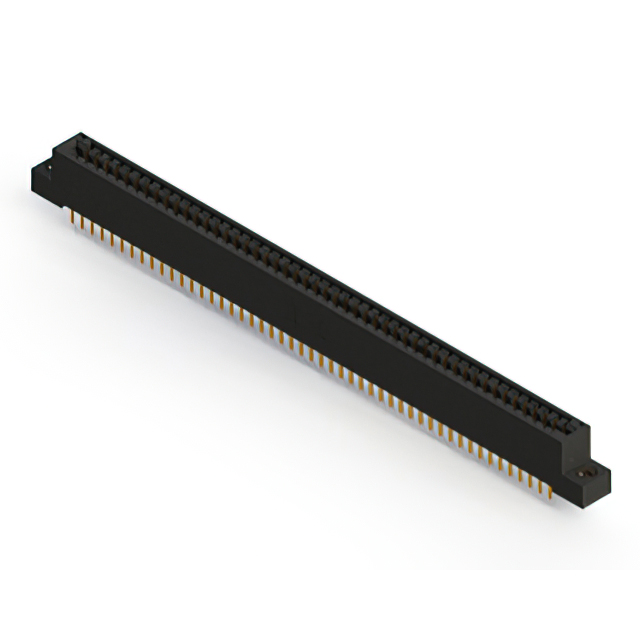

EDAC Inc. 896-098-521-208	10 Áin	0.25 Ám	Copper Alloy	Black	98	Dual	Gold	Through Hole	Non Specified - Dual Edge	Female	2	0.125 in	3.18 mm	Polyphenylene Sulfide (PPS)	4-40 Flush Mount Threaded Insert Top Opening	Cantilever	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	2	49
EDAC Inc. 896-098-500-208	10 Áin	0.25 Ám	Copper Alloy	Black	98	Dual	Gold	Through Hole	Non Specified - Dual Edge	Female	2	0.125 in	3.18 mm	Polyphenylene Sulfide (PPS)	4-40 Flush Mount Threaded Insert Top Opening	Cantilever	Solder Eyelet(s)	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	2	49
EDAC Inc. 896-098-500-207	10 Áin	0.25 Ám	Copper Alloy	Black	98	Dual	Gold	Through Hole	Non Specified - Dual Edge	Female	2	0.125 in	3.18 mm	Polyphenylene Sulfide (PPS)	Flush Mount M3 Threaded Insert Top Opening	Cantilever	Solder Eyelet(s)	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	2	49
EDAC Inc. 896-098-521-808	10 Áin	0.25 Ám	Copper Alloy	Black	98	Dual	Gold	Through Hole	Non Specified - Dual Edge	Female	2	0.125 in	3.18 mm	Polyphenylene Sulfide (PPS)	4-40 Threaded Insert Top Mount Opening	Cantilever	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	2	49
EDAC Inc. 896-098-521-803	10 Áin	0.25 Ám	Copper Alloy	Black	98	Dual	Gold	Through Hole	Non Specified - Dual Edge	Female	2	0.125 in	3.18 mm	Polyphenylene Sulfide (PPS)	Floating Bobbin Top Mount Opening	Cantilever	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	2	49	0.116 in	2.95 mm
EDAC Inc. 896-098-520-204	10 Áin	0.25 Ám	Copper Alloy	Black	98	Dual	Gold	Through Hole	Non Specified - Dual Edge	Female	2	0.125 in	3.18 mm	Polyphenylene Sulfide (PPS)	Flush Mount Top Opening Unthreaded	Cantilever	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	2	49	0.156 in	3.96 mm
EDAC Inc. 896-098-500-202	10 Áin	0.25 Ám	Copper Alloy	Black	98	Dual	Gold	Through Hole	Non Specified - Dual Edge	Female	2	0.125 in	3.18 mm	Polyphenylene Sulfide (PPS)	Flush Mount Top Opening Unthreaded	Cantilever	Solder Eyelet(s)	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	2	49	0.128 "	3.25 mm
EDAC Inc. 896-098-500-803	10 Áin	0.25 Ám	Copper Alloy	Black	98	Dual	Gold	Through Hole	Non Specified - Dual Edge	Female	2	0.125 in	3.18 mm	Polyphenylene Sulfide (PPS)	Floating Bobbin Top Mount Opening	Cantilever	Solder Eyelet(s)	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	2	49	0.116 in	2.95 mm
