PPPC021 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN HDR 2POS 0.1 GOLD PCB
| Part | Insulation Material | Contact Finish Thickness - Post | Contact Shape | Contact Material | Number of Positions Loaded | Insulation Color | Material Flammability Rating | Current Rating (Amps) | Contact Finish - Post | Voltage Rating | Contact Length - Post [x] | Contact Length - Post [x] | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Number of Rows | Termination | Mounting Type | Number of Positions | Contact Type | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Connector Type | Contact Finish - Mating | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

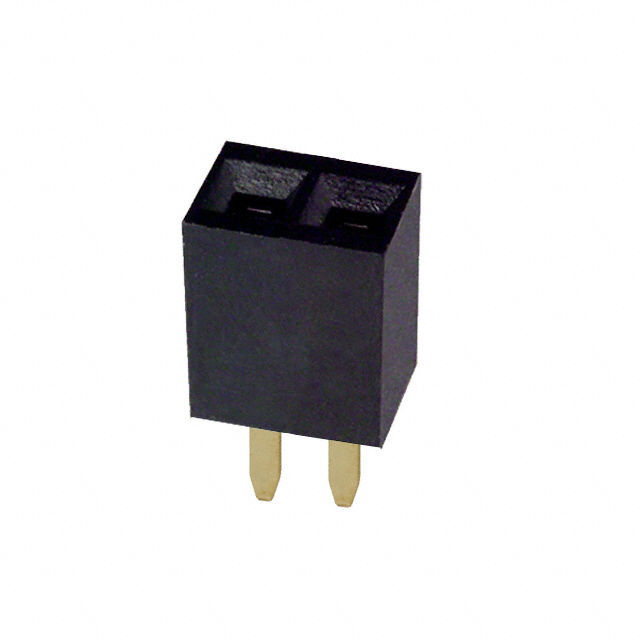

 Sullins Connector Solutions | Polyester | Flash | Square | Phosphor Bronze | All | Black | UL94 V-0 | 3 A | Gold | 250 V | 0.126 " | 3.2 mm | Push-Pull | -40 C | 105 ░C | Flash | 1 | Solder | Through Hole | 2 | Female Socket | 0.1 " | 2.54 mm | 0.335 " | 8.51 mm | Header | Gold | ||

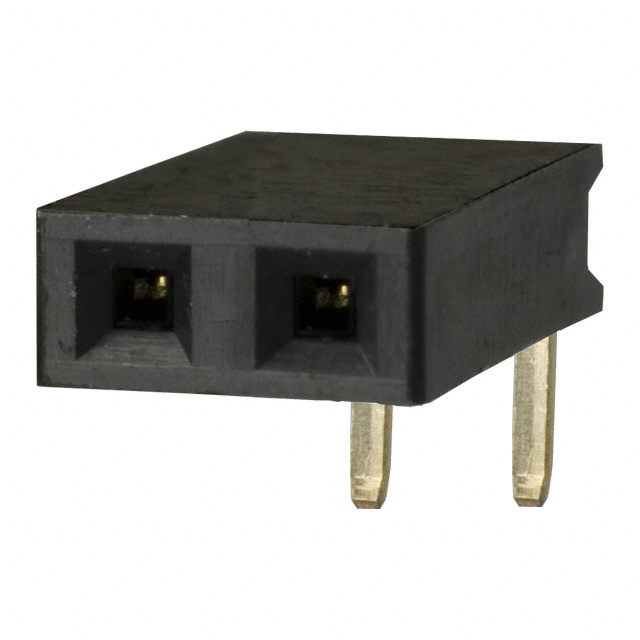

 Sullins Connector Solutions | Polyester | Flash | Square | Phosphor Bronze | All | Black | UL94 V-0 | 3 A | Gold | 250 V | Push-Pull | -40 C | 105 ░C | Flash | 1 | Solder | Right Angle Through Hole | 2 | Female Socket | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | Header | Gold | 0.124 in | 3.15 mm |
