SS-12400 Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K

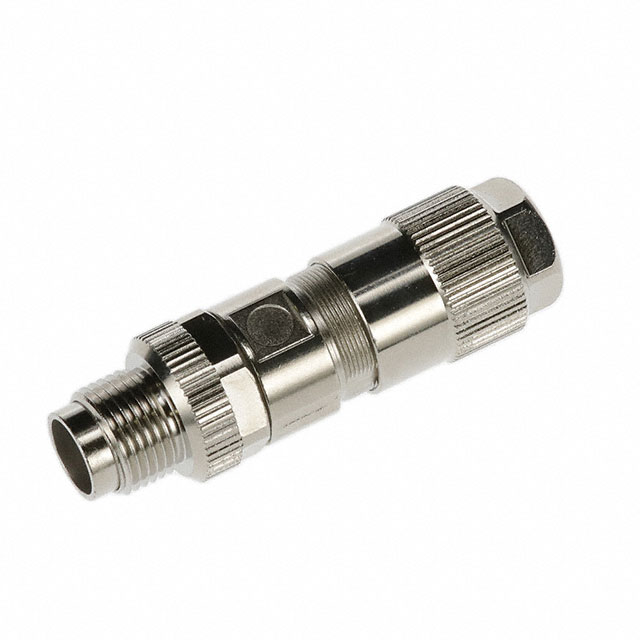

SENSOR CONNECTOR, M12, MALE, 8 POSITIONS, IDC / IDT PIN, STRAIGHT CABLE MOUNT
| Part | Applications | Backshell Material, Plating | Insert Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Material | Color | Termination | Contact Finish - Mating | Shell Material | Connector Type | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Features | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Cable Opening [Max] | Ingress Protection | Material Flammability Rating | Orientation [x] | Shielding | Shell Size - Insert | Mounting Type | Fastening Type | Voltage Rating | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | Communication Systems Industrial | Copper Zinc | Thermoplastic | 0.25 µm | 10 µin | Copper Alloy | Silver | IDC | Gold | Copper Zinc Alloy | Receptacle Male Pins | 8 | 90 °C | -40 C | 500 mA | Backshell | 0.354 in | 0.268 " | 6.8 mm | 9 mm | IP67 - Dust Tight Waterproof | UL94 V-0 | X | Shielded | M12-8 | Free Hanging (In-Line) | Threaded | 48 VDC | Metal |
