ADS6122 Series
Manufacturer: Texas Instruments
Beta
⌘K

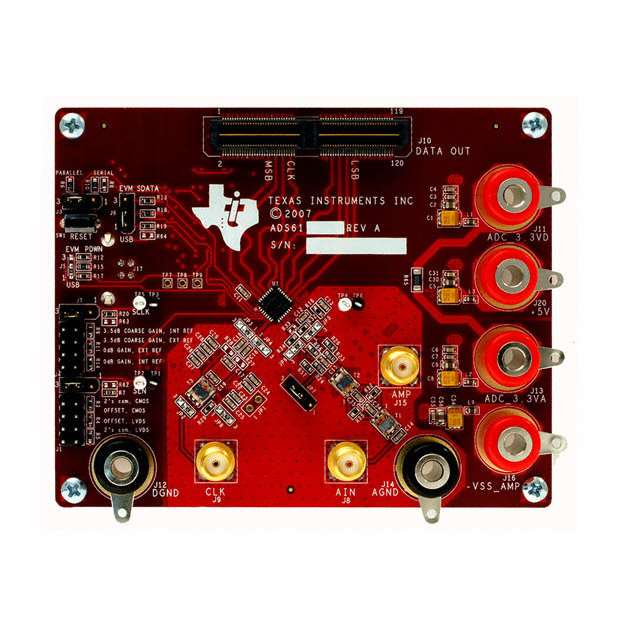

EVAL MODULE FOR ADS6122
| Part | Number of Bits | Supplied Contents | Input Range | Number of A/D Converters | Sampling Rate (Per Second) | Data Interface | Utilized IC / Part | Operating Temperature [Max] | Operating Temperature [Min] | Configuration | Voltage - Supply, Analog [Max] | Voltage - Supply, Analog [Min] | Package / Case | Ratio - S/H:ADC | Voltage - Supply, Digital [Min] | Voltage - Supply, Digital [Max] | Supplier Device Package | Architecture | Reference Type | Mounting Type | Number of Inputs | Input Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 12 bits | Board(s) | 2 Vpp | 1 | 65 M | Parallel Serial | ADS6122 | |||||||||||||||
 Texas Instruments | 12 bits | 1 | 65 M | LVDS - Parallel Parallel | 85 °C | -40 °C | S/H-ADC | 3.6 V | 3 V | 32-VFQFN Exposed Pad | 1:1 | 1.65 V | 3.6 V | 32-VQFN (5x5) | Pipelined | Internal | Surface Mount | 1 | Differential | |||
Texas Instruments | 12 bits | 1 | 65 M | LVDS - Parallel Parallel | 85 °C | -40 °C | S/H-ADC | 3.6 V | 3 V | 32-VFQFN Exposed Pad | 1:1 | 1.65 V | 3.6 V | 32-VQFN (5x5) | Pipelined | Internal | Surface Mount | 1 | Differential | |||
 Texas Instruments | 12 bits | 1 | 65 M | LVDS - Parallel Parallel | 85 °C | -40 °C | S/H-ADC | 3.6 V | 3 V | 32-VFQFN Exposed Pad | 1:1 | 1.65 V | 3.6 V | 32-VQFN (5x5) | Pipelined | Internal | Surface Mount | 1 | Differential |
