1090-0 Series

Catalog

CONN PC PIN CIRC .025DIA TINLEAD

Part	Contact Finish Thickness	Contact Finish Thickness	Length - Overall [x]	Length - Overall [x]	Length - Above Flange [x]	Length - Above Flange [x]	Contact Material	Flange Diameter [diameter]	Flange Diameter [diameter]	Mounting Hole Diameter	Mounting Hole Diameter	Mounting Type	Terminal Style	Contact Finish	Pin Size - Above Flange [diameter]	Pin Size - Above Flange [diameter]	Termination	Insulation	Terminal Type	Length - Below Flange [x]	Length - Below Flange [x]
Mill-Max Manufacturing Corp. 1090-0-05-01-00-00-01-0	5.08 Ám	200 Áin	0.905 in	22.99 mm	4.42 mm	0.174 in	Brass Alloy	0.072 "	1.83 mm	0.059 in	1.5 mm	Through Hole	Double End	Tin-Lead	0.64 mm	0.025 in	Press-Fit Wire Wrap	Non-Insulated	PC Pin	17.09 mm	0.673 "

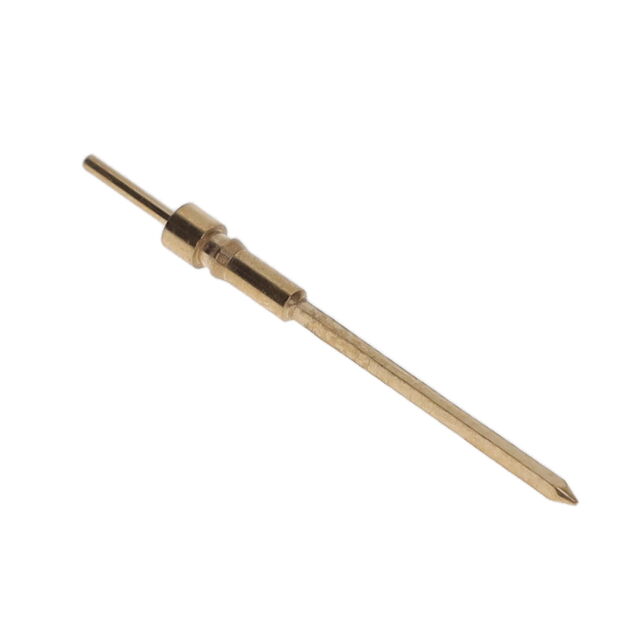

Mill-Max Manufacturing Corp. 1090-0-05-15-00-00-01-0	0.25 Ám	10 Áin	0.905 in	22.99 mm	4.42 mm	0.174 in	Brass Alloy	0.072 "	1.83 mm	0.059 in	1.5 mm	Through Hole	Double End	Gold	0.64 mm	0.025 in	Press-Fit Wire Wrap	Non-Insulated	PC Pin	17.09 mm	0.673 "
Mill-Max Manufacturing Corp. 1090-0-05-21-00-00-01-0	0.51 µm	20 µin	0.905 in	22.99 mm	4.42 mm	0.174 in	Brass Alloy	0.072 "	1.83 mm	0.059 in	1.5 mm	Through Hole	Double End	Gold	0.64 mm	0.025 in	Press-Fit Wire Wrap	Non-Insulated	PC Pin	17.09 mm	0.673 "
