1214C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

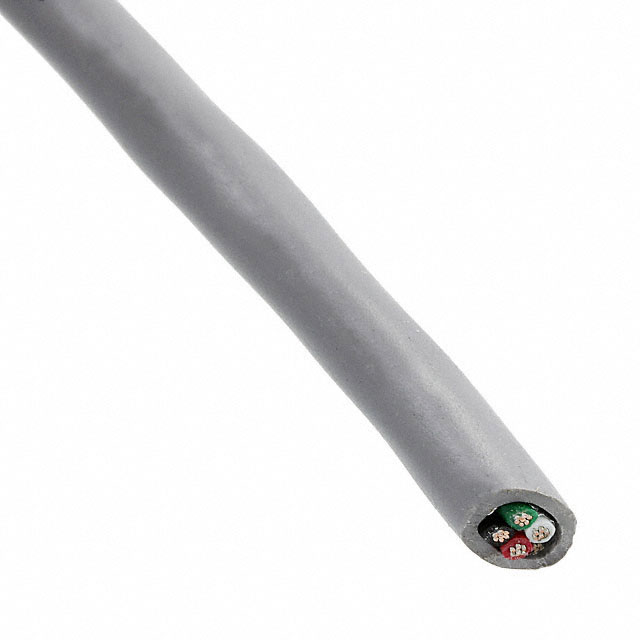

SHIELDED MULTI-CONDUCTOR CABLE TAPE POLYVINYL CHLORIDE 4CONDUCTORS 24AWG 4.69MM 300VAC SLATE POLYVINYL CHLORIDE 152.4M SPOOL
| Part | Shield Coverage | Shield Material | Conductor Material | Wire Gauge | Usage | Jacket (Insulation) Material | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Voltage | Features | Operating Temperature [Max] | Operating Temperature [Min] | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Length | Length | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | Copper Tinned | 24 AWG | Communication Control | Poly-Vinyl Chloride (PVC) | Foil | 0.813 mm | 0.032 in | Multi-Conductor | 300 VDC | Drain Wire | 80 °C | -20 ░C | Slate | 7 | 32 AWG | Poly-Vinyl Chloride (PVC) | 0.174 in | 4.42 mm | 4 | 152.4 m | 500 ft | ||
ALPHA WIRE | 100 % | Aluminum | Copper Tinned | 24 AWG | Communication Control | Poly-Vinyl Chloride (PVC) | Foil | 0.813 mm | 0.032 in | Multi-Conductor | 300 VDC | Drain Wire | 80 °C | -20 ░C | Slate | 7 | 32 AWG | Poly-Vinyl Chloride (PVC) | 0.174 in | 4.42 mm | 4 | 100 ft | 30.5 m |
