UWS-3.3 Series

Catalog

DC-DC CONVERTER, 3.3V, 15A

Part	Voltage - Output 1	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Efficiency	Type	Voltage - Isolation	Control Features	Features	Mounting Type	Power (Watts)	Number of Outputs	Applications	Voltage - Input (Max) [Max]	Package / Case	Supplier Device Package

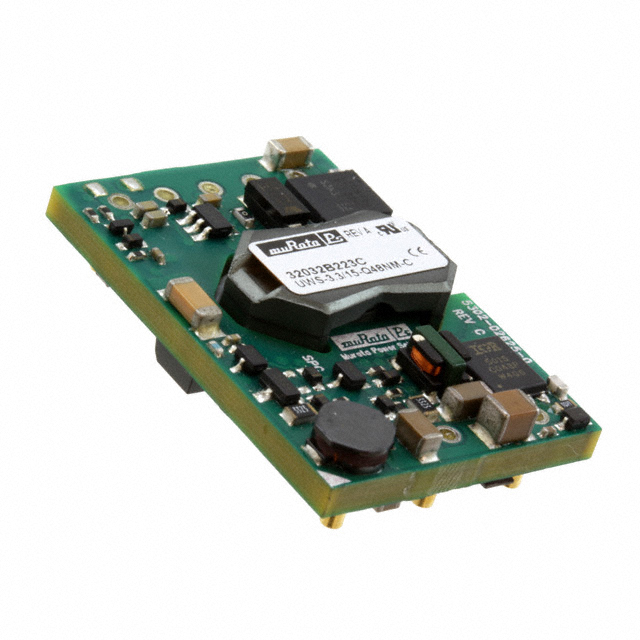

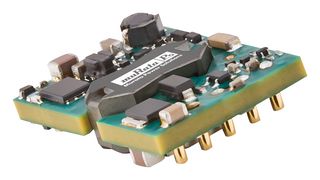

Murata Electronics UWS-3.3/15-Q48NM-C	3.3 V	18 V	85 °C	-40 C	15 A	1.31 in	0.91 in	33.3 mm	0.36 in	9.1 mm	23.1 mm	89 %	Isolated Module	2250 VDC	Active Low Enable	Remote On/Off UVLO	Surface Mount	50 W	1	ITE (Commercial)	75 V	8-SMD Module 1/16 Brick

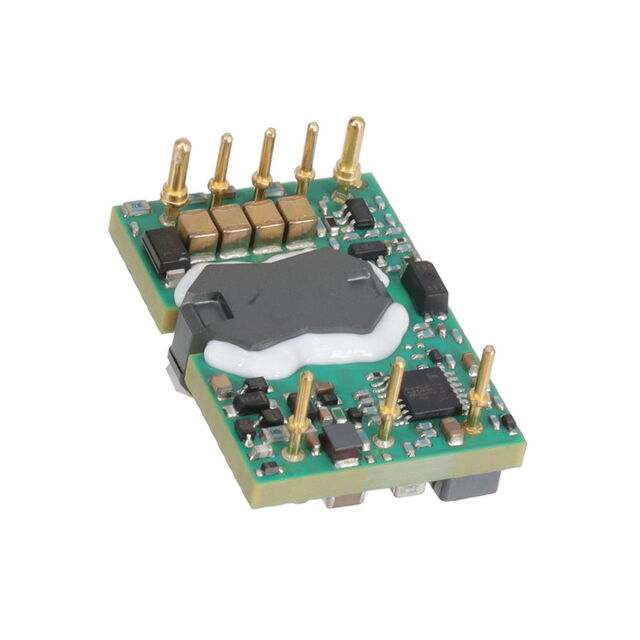

Murata Electronics UWS-3.3/15-Q12P-C	3.3 V	9 V	85 °C	-40 °C	15 A	1.3 in	0.9 in	33 mm	0.36 in	9.1 mm	22.9 mm		Isolated Module	2250 VDC	Active High Enable	Adjustable Output Remote On/Off Remote Sense	Through Hole	50 W	1	ITE (Commercial)	36 V	Sixteenth Brick	Sixteenth Brick
