6609951 Series
Manufacturer: TE Connectivity Corcom Filters
Beta
⌘K

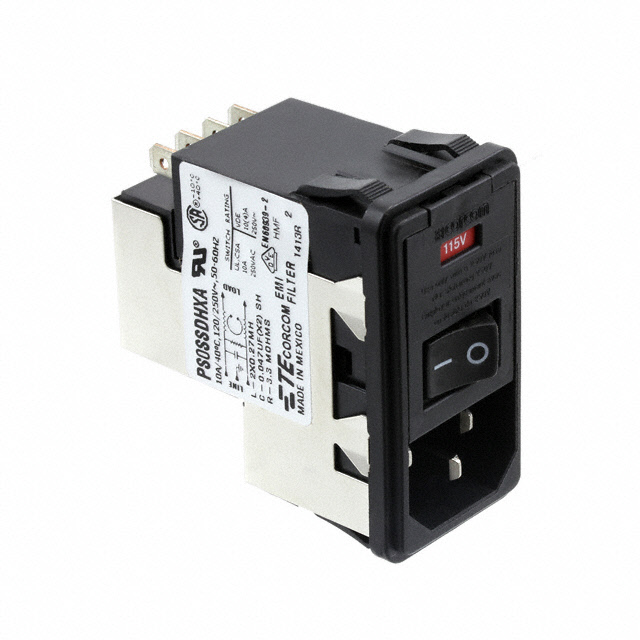

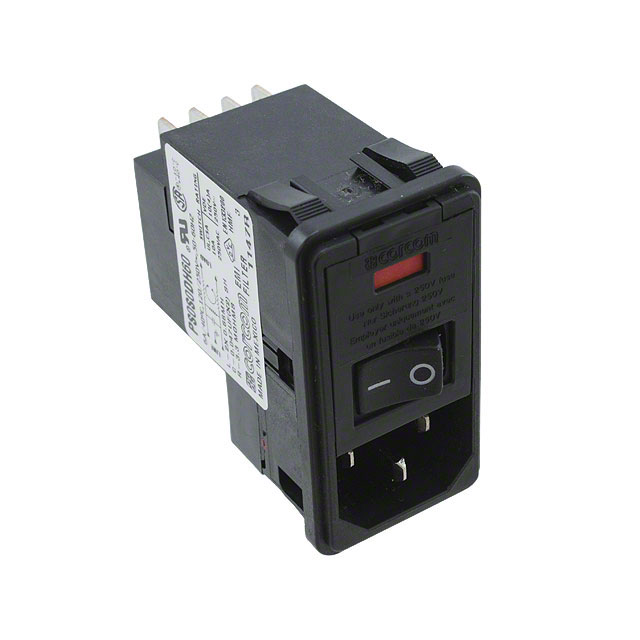

PWR ENT MOD RCPT IEC320-C14 PNL
| Part | Panel Cutout Dimensions | Current Rating - Appliance Inlet | Voltage Rating - Appliance Inlet | Current Rating - Filter | Panel Thickness [Min] | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Max] | Connector Style | Connector Type | Features | Filter Type | Termination | Termination | Termination | Approval Agency | Mounting Type | Switch Features | Accomodates a Fuse | Fuse Holder, Drawer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Corcom Filters | Variable Size | 10 A | 120 VAC | 10 A | 0.79 mm | 2.9 mm | 0.031 " | 0.114 in | IEC 320-C14 | Receptacle Male Blades - Module | Shielded Voltage Selector | Filtered (EMI RFI) - Commercial Medical | Quick Connect | 0.187 " | 4.7 mm | CSA UL VDE | Panel Mount Snap-In | Switch On-Off | Twin Fused | |
 TE Connectivity Corcom Filters | Variable Size | 6 A | 120 VAC | 6 A | 0.79 mm | 2.9 mm | 0.031 " | 0.114 in | IEC 320-C14 | Receptacle Male Blades - Module | Filtered (EMI RFI) - Commercial Medical | Quick Connect | 0.187 " | 4.7 mm | CSA UL VDE | Panel Mount Snap-In | Switch On-Off | Twin Fused | ||
 TE Connectivity Corcom Filters | 3 A | 120 VAC | 3 A | 0.79 mm | 2.9 mm | 0.031 " | 0.114 in | IEC 320-C14 | Receptacle Male Blades - Module | Voltage Selector | Filtered (EMI RFI) - Commercial | Quick Connect | 0.187 " | 4.7 mm | CSA UL VDE | Panel Mount Snap-In | Twin Fused | |||
TE Connectivity Corcom Filters | 10 A | 120 VAC | 10 A | 0.79 mm | 2.9 mm | 0.031 " | 0.114 in | IEC 320-C14 | Receptacle Male Blades - Module | Conversion Clip Voltage Selector | Filtered (EMI RFI) - Commercial Medical | Quick Connect | 0.187 " | 4.7 mm | CSA UL VDE | Panel Mount Snap-In | Fuse Holder | |||
TE Connectivity Corcom Filters | 6 A | 120 VAC | 6 A | 0.79 mm | 2.9 mm | 0.031 " | 0.114 in | IEC 320-C14 | Receptacle Male Blades - Module | Voltage Selector | Filtered (EMI RFI) - Commercial | Quick Connect | 0.187 " | 4.7 mm | CSA UL VDE | Panel Mount Snap-In | Twin Fused | |||
TE Connectivity Corcom Filters | 3 A | 120 VAC | 3 A | 0.79 mm | 2.9 mm | 0.031 " | 0.114 in | IEC 320-C14 | Receptacle Male Blades - Module | Conversion Clip Voltage Selector | Filtered (EMI RFI) - Commercial Medical | Quick Connect | 0.187 " | 4.7 mm | CSA UL VDE | Panel Mount Snap-In | Fuse Holder | |||
TE Connectivity Corcom Filters | Variable Size | 10 A | 120 VAC | 10 A | 0.79 mm | 2.9 mm | 0.031 " | 0.114 in | IEC 320-C14 | Receptacle Male Blades - Module | Conversion Clip Shielded Voltage Selector | Filtered (EMI RFI) - Commercial Medical | Quick Connect | 0.187 " | 4.7 mm | CSA UL VDE | Panel Mount Snap-In | Switch On-Off | Fuse Holder | |
TE Connectivity Corcom Filters | 3 A | 120 VAC | 3 A | 0.79 mm | 2.9 mm | 0.031 " | 0.114 in | IEC 320-C14 | Receptacle Male Blades - Module | Voltage Selector | Filtered (EMI RFI) - Commercial Medical | Quick Connect | 0.187 " | 4.7 mm | CSA UL VDE | Panel Mount Snap-In | Switch On-Off | Twin Fused | ||
TE Connectivity Corcom Filters | 3 A | 120 VAC | 3 A | 0.79 mm | 2.9 mm | 0.031 " | 0.114 in | IEC 320-C14 | Receptacle Male Blades - Module | Voltage Selector | Filtered (EMI RFI) - Commercial Medical | Quick Connect | 0.187 " | 4.7 mm | CSA UL VDE | Panel Mount Snap-In | Switch On-Off | Twin Fused | ||
TE Connectivity Corcom Filters | Variable Size | 10 A | 120 VAC | 10 A | 0.79 mm | 2.9 mm | 0.031 " | 0.114 in | IEC 320-C14 | Receptacle Male Blades - Module | Voltage Selector | Filtered (EMI RFI) - Commercial Medical | Quick Connect | 0.187 " | 4.7 mm | CSA UL VDE | Panel Mount Snap-In | Switch On-Off | Twin Fused |
