PPPN122 Series

Catalog

CONN HDR 24POS 0.079 GOLD PCB

Part	Contact Material	Contact Shape	Insulation Material	Contact Finish Thickness - Post	Fastening Type	Termination	Insulation Color	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Mounting Type	Contact Finish - Mating	Number of Rows [custom]	Number of Positions Loaded	Contact Finish - Post	Insulation Height	Current Rating (Amps)	Features

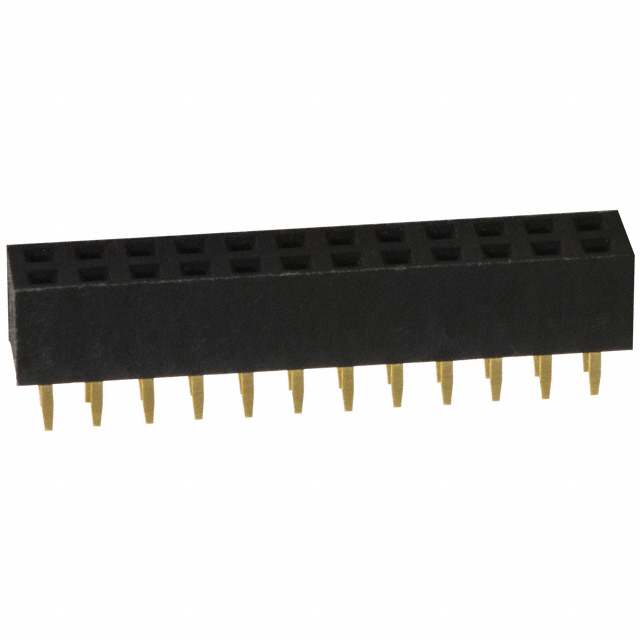

Sullins Connector Solutions PPPN122AFCN	Phosphor Bronze	Square	Polyester	Flash	Push-Pull	Solder	Black	Header	-40 C	105 ░C	24	4.3 mm	0.169 "	0.079 "	2 mm	2 mm	0.079 in	Female Socket	UL94 V-0	2.4 mm	0.094 in	Flash	Through Hole	Gold	2	All	Gold
Sullins Connector Solutions PPPN122FFKS	Phosphor Bronze	Square	Polyester	Flash	Push-Pull	Solder	Black	Header	-40 C	105 ░C	24	0.173 in		0.079 "	2 mm	2 mm	0.079 in	Female Socket	UL94 V-0			Flash	Surface Mount	Gold	2	All	Gold	4.4 mm	2 A
Sullins Connector Solutions PPPN122GFNP	Phosphor Bronze	Square	Polyester	Flash	Push-Pull	Solder	Black	Header Top or Bottom Entry	-40 C	105 ░C	24			0.079 "	2 mm	2 mm	0.079 in	Female Socket	UL94 V-0			Flash	Surface Mount	Gold	2	All	Gold		2 A	Board Guide
Sullins Connector Solutions PPPN122GFNS	Phosphor Bronze	Square	Polyester	Flash	Push-Pull	Solder	Black	Header Top or Bottom Entry	-40 C	105 ░C	24			0.079 "	2 mm	2 mm	0.079 in	Female Socket	UL94 V-0			Flash	Surface Mount	Gold	2	All	Gold		2 A
