Dynamic 5000 Series Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

Catalog

DYNAMIC D-5200 HDR H ASSY 4P ROHS COMPLIANT: YES

...

Part	Insulation Color	Contact Material	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Contact Finish - Post	Current Rating (Amps)	Termination	Fastening Type	Mounting Type	Shrouding	Contact Length - Post [x]	Contact Length - Post [x]	Contact Type	Ingress Protection	Number of Positions Loaded	Features	Insulation Material	Contact Finish - Mating	Voltage Rating	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows [custom]	Style	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish	Contact Termination	Contact Finish Thickness	Contact Finish Thickness	Pin or Socket	Color	Pitch	Pitch	Row Spacing	Row Spacing	Number of Rows	Insulation Height [z]	Insulation Height [z]	Note
TE Connectivity AMP Connectors 1-1318983-6	Black	Copper Alloy	10.16 mm	0.4 in	UL94 V-0	Tin	45 A	Solder	Detent Lock	Right Angle Through Hole	Shrouded - 4 Wall	3.81 mm	0.15 in	Tab	IP20	All	Board Lock	Glass Filled Polyester Thermoplastic	Silver	630 V	4	100 çin	2.54 çm	2	Board to Cable/Wire	Rectangular	-55 C	105 ░C	Header	0.4 in	10.16 mm	30.86 mm	1.215 in

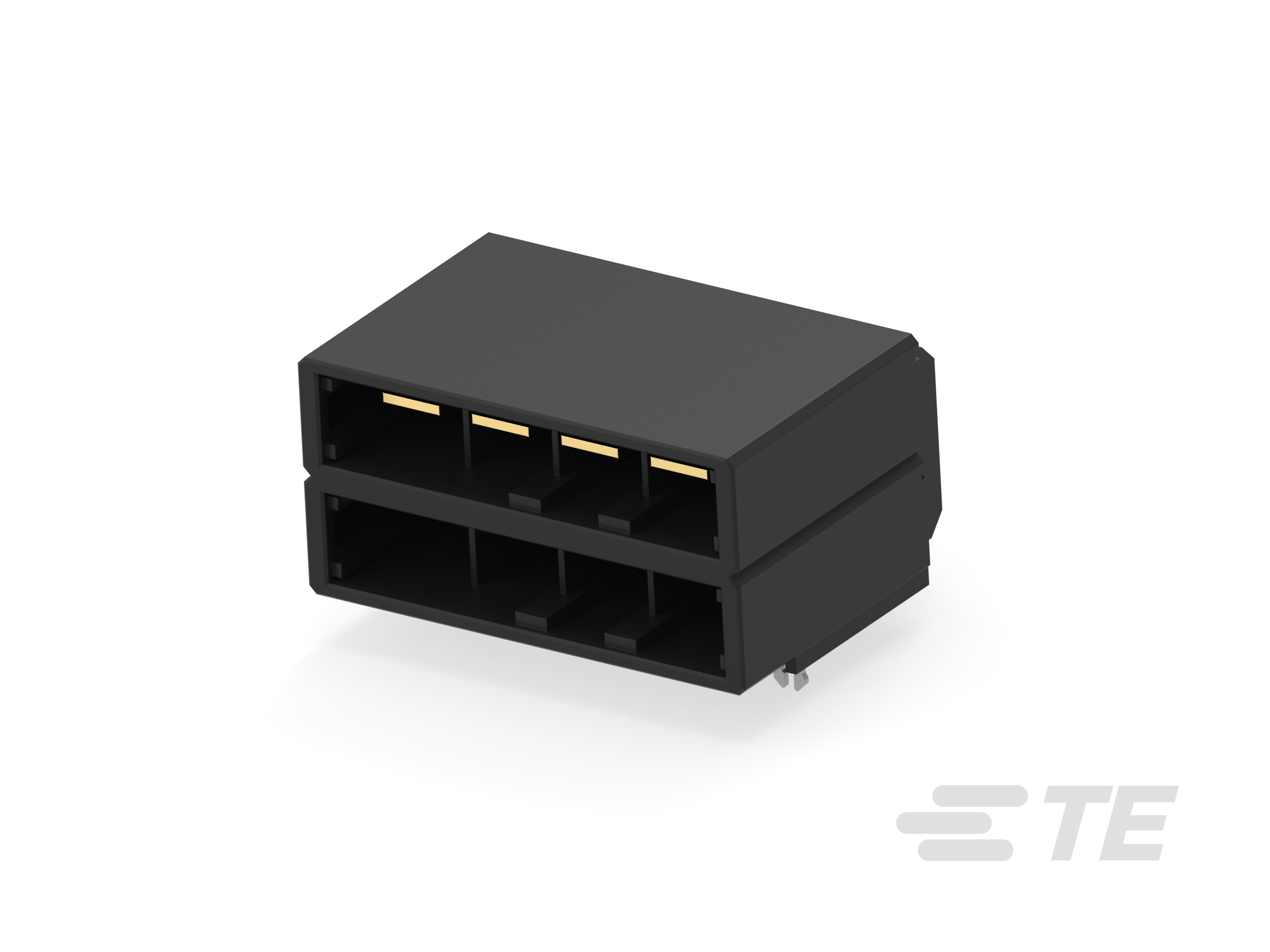

TE Connectivity AMP Connectors 3-1123829-1	Black	Copper Alloy	10.16 mm	0.4 in	UL94 V-0	Tin	30 A	Solder	Latch Lock	Through Hole	Shrouded - 4 Wall	3.81 mm	0.15 in	Tab		All		Polyester Glass Filled	Gold	630 V	8	15 µin	0.38 µm	2	Board to Cable/Wire	Rectangular	-55 C	105 ░C	Plug	0.4 in	10.16 mm	26.3 mm	1.035 in
TE Connectivity AMP Connectors 84695-1																																		10 AWG	12 AWG	Gold	Crimp	0.203 çm	8 µin	Tab
TE Connectivity AMP Connectors 917807-2										Free Hanging (In-Line)				Female Socket				Glass Filled Polyester Thermoplastic			4			2			-55 C	105 ░C	Receptacle								Crimp				Black	10.16 mm	0.4 in	10.16 mm	0.4 in
TE Connectivity AMP Connectors 2-179958-4										Free Hanging (In-Line)				Female Socket			Polarizing Key	Glass Filled Polyester Thermoplastic			4						-55 C	105 ░C	Receptacle								Crimp				Black	10.16 mm	0.4 in			1
TE Connectivity AMP Connectors 1318985-6																																		16 AWG	20 AWG	Silver	Crimp	2.54 µm	100 µin	Socket
TE Connectivity AMP Connectors 6-179960-2	Black	Copper Alloy			UL94 V-0	Tin	30 A	Solder	Detent Lock	Through Hole	Shrouded - 4 Wall			Tab	IP20	All	Board Lock	Glass Filled Polyester Thermoplastic	Gold	630 V	6	15 µin	0.38 µm		Board to Cable/Wire	Rectangular	-55 C	105 ░C	Header	0.4 in	10.16 mm															1	32 mm	1.26 in
TE Connectivity AMP Connectors 1-917808-3										Free Hanging (In-Line)				Male Pin			Polarizing Key	Glass Filled Polyester Thermoplastic			6			2			-55 C	105 ░C	Plug								Crimp				Black	10.16 mm	0.4 in	10.16 mm	0.4 in				Contacts Not Included
TE Connectivity AMP Connectors 917805-3																																		10 AWG	12 AWG	Gold	Crimp	0.76 Ám	30 Áin	Pin
TE Connectivity AMP Connectors 3-1318983-6	Black	Copper Alloy	10.16 mm	0.4 in	UL94 V-0	Tin	45 A	Solder	Detent Lock	Right Angle Through Hole	Shrouded - 4 Wall	3.81 mm	0.15 in	Tab	IP20	All	Board Lock	Glass Filled Polyester Thermoplastic	Silver	630 V	4	100 çin	2.54 çm	2	Board to Cable/Wire	Rectangular	-55 C	105 ░C	Header	0.4 in	10.16 mm	30.86 mm	1.215 in
