2009 Series
Manufacturer: Curtis Industries
Beta
⌘K

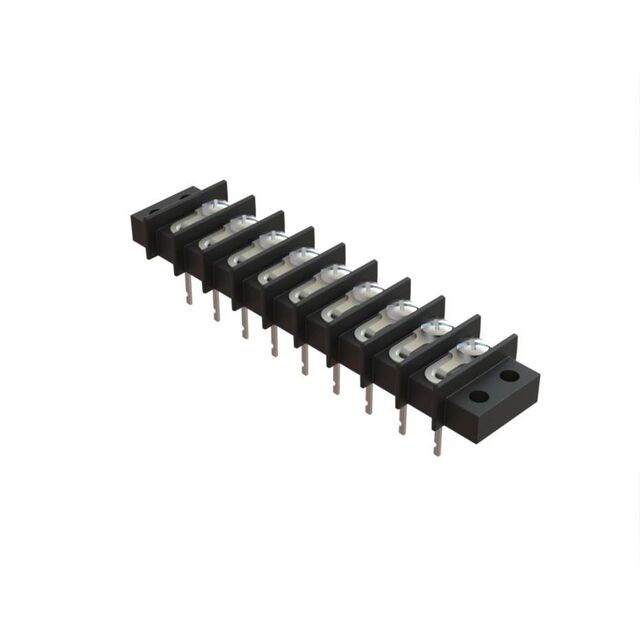

CONN BARRIER STRIP 9CIRC 0.438"
| Part | Operating Temperature | Material - Insulation | Material Flammability Rating | Mounting Type | Barrier Type | Number of Wire Entries | Number of Rows [custom] | Terminal Block Type | Number of Circuits [custom] | Current Rating (Amps) | Top Termination | Pitch [x] | Pitch [x] | Features | Wire Gauge [Max] | Wire Gauge [Min] | Bottom Termination | Terminal Screw Material | Terminal Screw Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Curtis Industries | 110 °C | Polyphenylene Oxide (PPO) | UL94 V-0 | Chassis Panel Through Hole | 2 Wall (Dual) | 18 | 2 | Barrier Block | 9 | 30 A | Screws | 0.438 in | 11.12 mm | Flange | 22 AWG | 10 AWG | Wire Wrap | ||
 Curtis Industries | 110 °C | Polyphenylene Oxide (PPO) | UL94 V-0 | Chassis Panel Through Hole | 2 Wall (Dual) | 18 | 2 | Barrier Block | 9 | 30 A | Screws | 0.438 in | 11.12 mm | Flange | 22 AWG | 10 AWG | Solder Tab | ||
 Curtis Industries | 110 °C | Polyphenylene Oxide (PPO) | UL94 V-0 | Chassis Panel | 2 Wall (Dual) | 18 | 2 | Barrier Block | 9 | 30 A | Screws with Captive Plate | 0.438 in | 11.12 mm | Flange | 22 AWG | 10 AWG | Closed | Steel | |
 Curtis Industries | 110 °C | Polyphenylene Oxide (PPO) | UL94 V-0 | Chassis Panel | 2 Wall (Dual) | 18 | 2 | Barrier Block | 9 | 30 A | Screws with Solder Lugs Single | 0.438 in | 11.12 mm | Flange | 22 AWG | 10 AWG | Closed | Tin |
