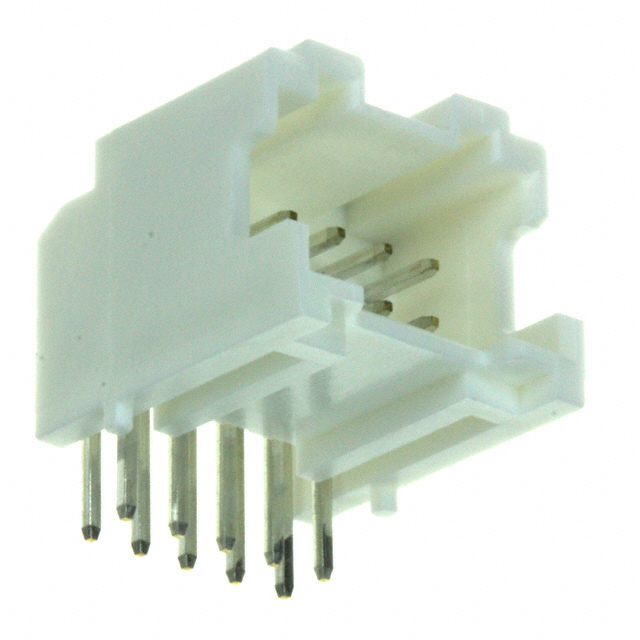

S10B-PAD Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER R/A 10POS 2MM
| Part | Number of Positions Loaded | Contact Shape | Contact Material | Shrouding | Style | Connector Type | Insulation Color | Contact Type | Termination | Material Flammability Rating | Contact Length - Post | Contact Length - Post | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Current Rating (Amps) | Features | Mounting Type | Contact Finish - Post | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Material | Number of Rows [custom] | Voltage Rating | Row Spacing - Mating | Row Spacing - Mating | Number of Positions | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | All | Square | Copper Alloy | Shrouded - 4 Wall | Board to Cable/Wire | Header | Natural | Male Pin | Solder | UL94 V-0 | 0.118 in | 3 mm | 0.413 in | 10.49 mm | 0.079 " | 2 mm | 3 A | Board Guide | Right Angle Through Hole | Tin | 85 °C | -25 °C | Polybutylene Terephthalate (PBT) Glass Filled | 2 | 250 V | 2 mm | 0.079 in | 10 | Locking Ramp |
