151014 Series

2.00mm Pitch, Milli-Grid BMI Receptacle Housing, 20 Circuits, with Panel Mount Feature, Lead-Free

Manufacturer: Molex

Catalog

2.00mm Pitch, Milli-Grid BMI Receptacle Housing, 20 Circuits, with Panel Mount Feature, Lead-Free

Part	Note	Contact Type	Number of Rows [custom]	Number of Positions	Contact Termination	Color	Pitch [x]	Pitch [x]	Insulation Material	Fastening Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Row Spacing	Row Spacing

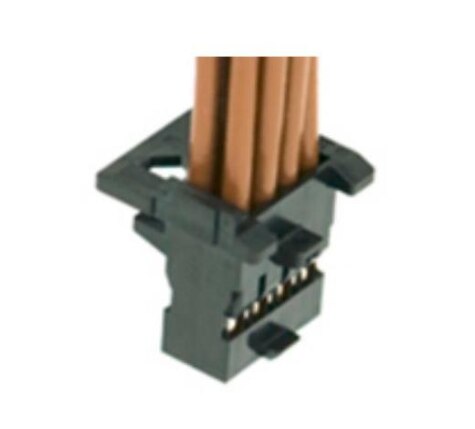

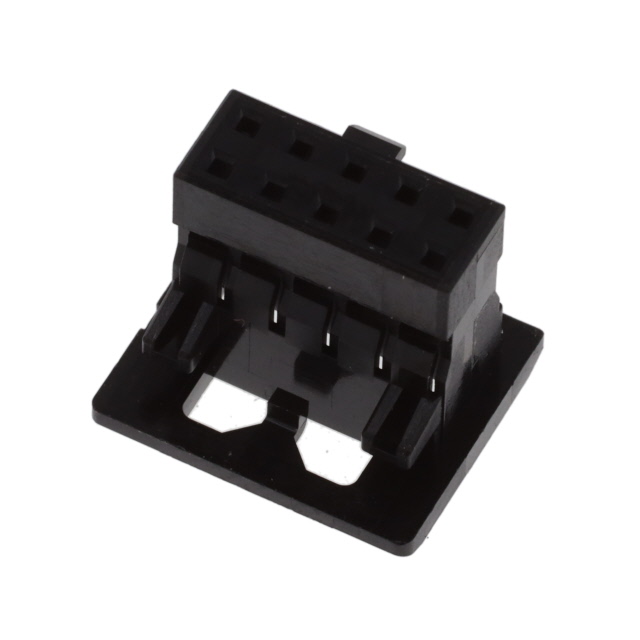

Molex 1510140010	Contacts Not Included	Female Socket	2	10	Crimp	Black	0.079 in	2 mm	Polyester	Latch Lock	Panel Mount	-40 C	105 ░C	Receptacle	2 mm	0.079 in

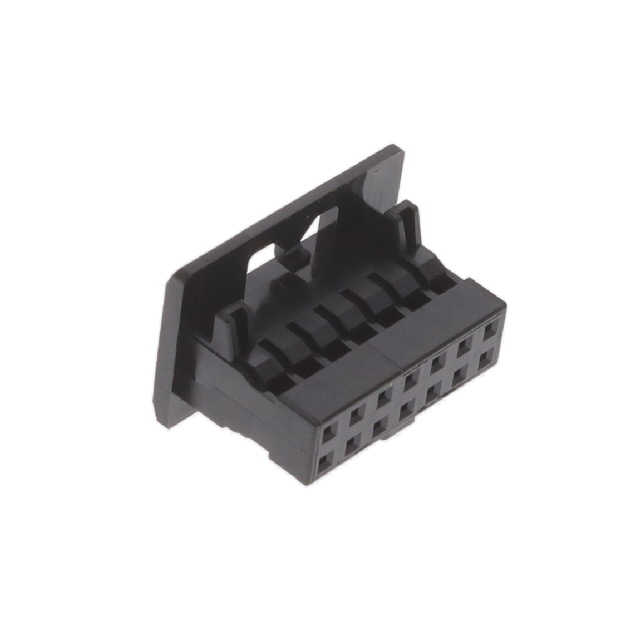

Molex 1510140014	Contacts Not Included	Female Socket	2	14	Crimp	Black	0.079 in	2 mm	Polyester	Latch Lock	Panel Mount	-40 C	105 ░C	Receptacle	2 mm	0.079 in

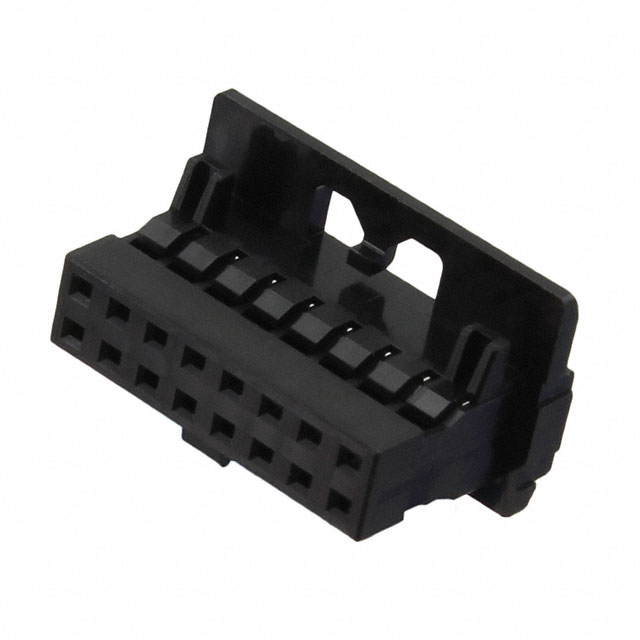

Molex 1510140016	Contacts Not Included	Female Socket	2	16	Crimp	Black	0.079 in	2 mm	Polyester	Latch Lock	Panel Mount	-40 C	105 ░C	Receptacle	2 mm	0.079 in
Molex 1510140020	Contacts Not Included	Female Socket	2	20	Crimp	Black	0.079 in	2 mm	Polyester	Latch Lock	Panel Mount	-40 C	105 ░C	Receptacle	2 mm	0.079 in

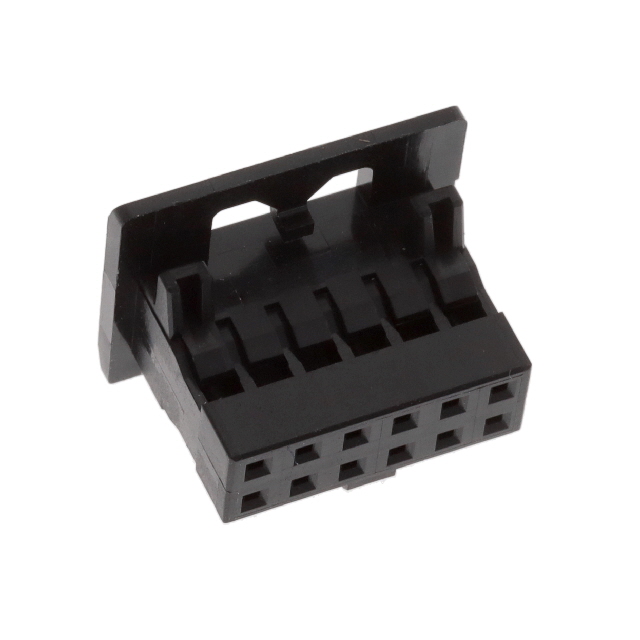

Molex 1510140012	Contacts Not Included	Female Socket	2	12	Crimp	Black	0.079 in	2 mm	Polyester	Latch Lock	Panel Mount	-40 C	105 ░C	Receptacle	2 mm	0.079 in
Molex 1510140018		Female Socket	2	18	Crimp	Black	0.079 in	2 mm	Polyester	Latch Lock	Panel Mount	-40 C	105 ░C	Receptacle	2 mm	0.079 in

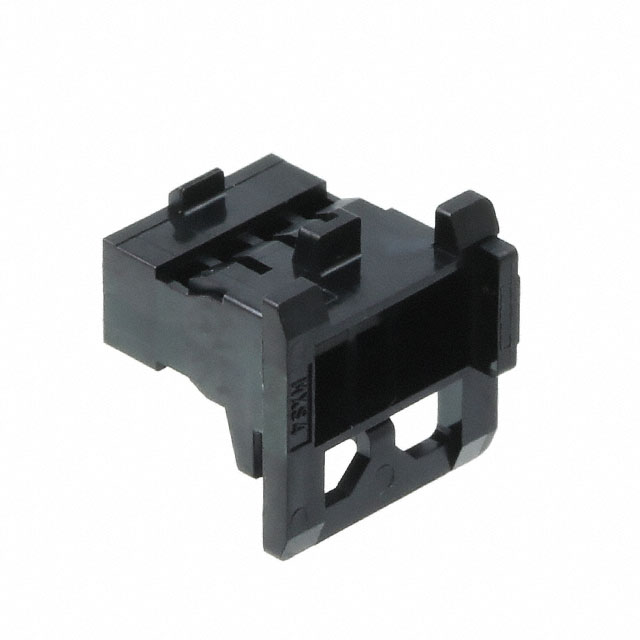

Molex 1510140008	Contacts Not Included	Female Socket	2	8	Crimp	Black	0.079 in	2 mm	Polyester	Latch Lock	Panel Mount	-40 C	105 ░C	Receptacle	2 mm	0.079 in

2.00mm Pitch, Milli-Grid BMI Receptacle Housing, 20 Circuits, with Panel Mount Feature, Lead-Free
