AVD120 Series

Catalog

DC DC CONVERTER 12V 120W

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Features	Applications	Power (Watts)	Package / Case	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Type	Voltage - Output 1	Mounting Type	Number of Outputs	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]

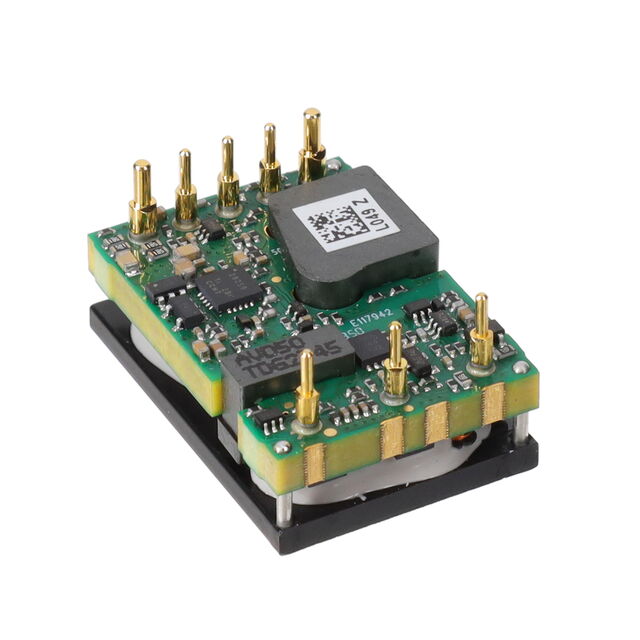

ARTESYN / Advanced Energy AVD120-48S12B-6L	85 °C	-40 C	1.5 kV	36 V	10 A	75 V	OCP OTP OVP Remote On/Off UVLO	ITE (Commercial)	120 W	8-DIP Module 1/16 Brick	12.7 mm	22.86 mm	1.3 in	12.7 mm	33 mm	22.9 mm	Isolated Module	12 V	Through Hole	1
ARTESYN / Advanced Energy AVD120-48S12TL	85 °C	-40 C	1.5 kV	36 V	10 A	75 V	OCP OTP OVP Remote On/Off UVLO	ITE (Commercial)	120 W	8-SMD Module 1/16 Brick	10 mm	22.9 mm	33 mm				Isolated Module	12 V	Surface Mount	1	0.9 in	0.39 "	1.3 in

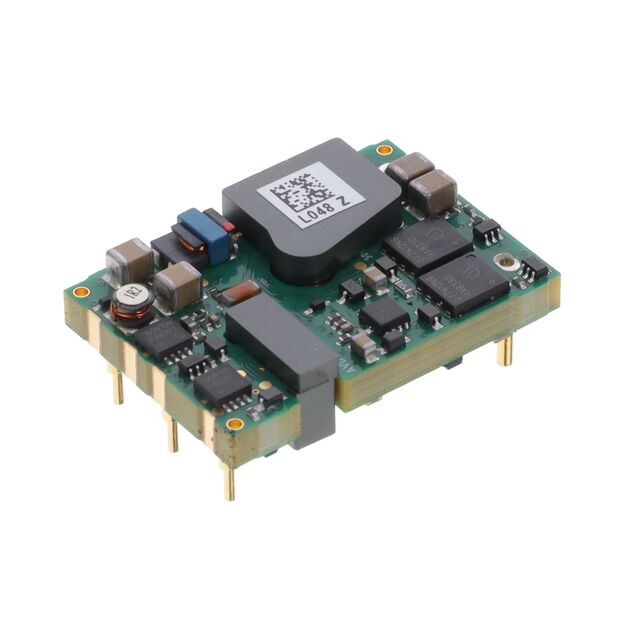

ARTESYN / Advanced Energy AVD120-48S12-6L	85 °C	-40 C	1.5 kV	36 V	10 A	75 V	OCP OTP OVP Remote On/Off UVLO	ITE (Commercial)	120 W	8-DIP Module 1/16 Brick	10 mm	22.9 mm	33 mm				Isolated Module	12 V	Through Hole	1	0.9 in	0.39 "	1.3 in
