ST-RJ45 Series

Catalog

RJ45 PASS-THROUGH BREAKOUT BOARD

Part	Number of Positions	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Proto Board Type	Package Accepted	Board Thickness	Board Thickness	Pitch	Pitch	Material
SchmalzTech, LLC ST-RJ45-PASS-R-DIN	9	2 in	2.2 in	50.8 mm	55.88 mm	Connector to Plated Through Hole	RJ45	0.063 in	1.6 mm	0.1 "	2.54 mm	FR4 Epoxy Glass

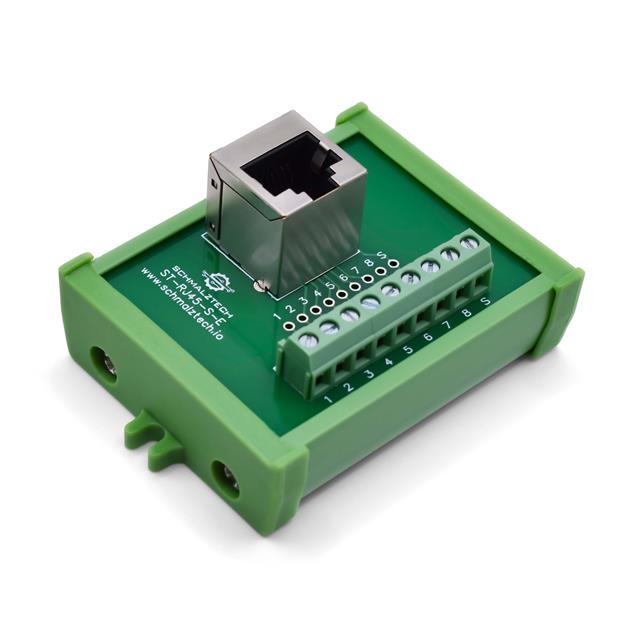

SchmalzTech, LLC ST-RJ45-S-E-CHS	9	1.89 in	2.33 "	48.01 mm	59.18 mm	Connector to Terminal Block	RJ45			0.1 "	2.54 mm

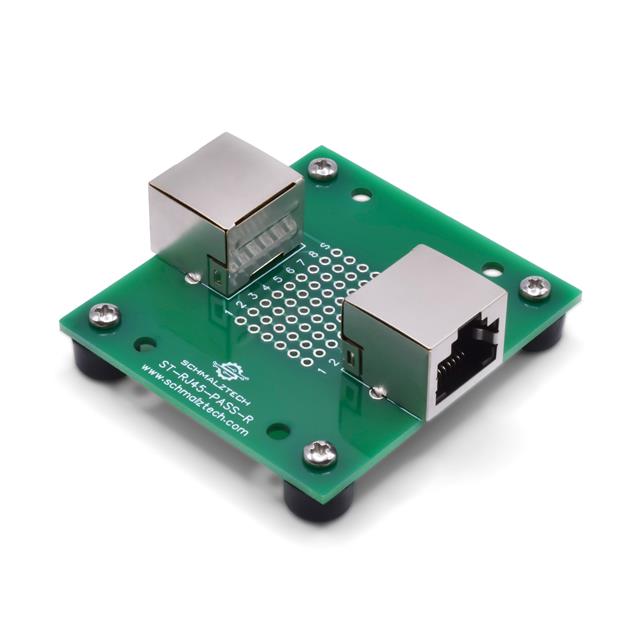

SchmalzTech, LLC ST-RJ45-PASS-R-FT	9	2 in	2.2 in	50.8 mm	55.88 mm	Connector to Plated Through Hole	RJ45	0.063 in	1.6 mm	0.1 "	2.54 mm	FR4 Epoxy Glass

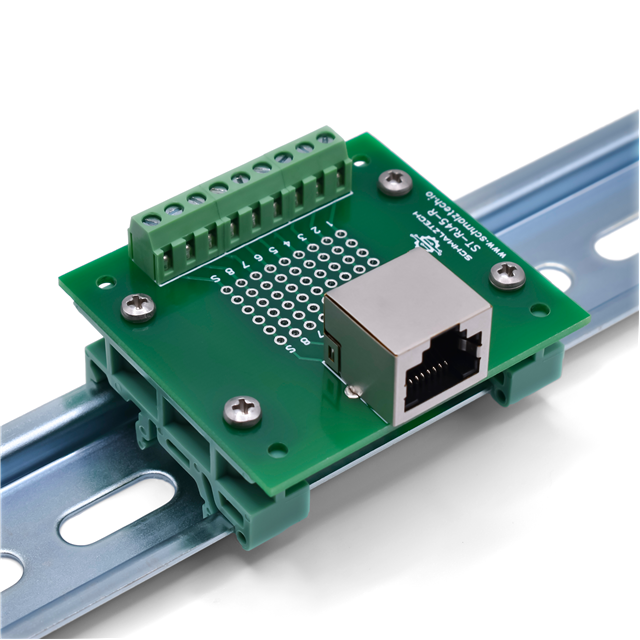

SchmalzTech, LLC ST-RJ45-R-DIN	8	1.8 in	2.2 in	45.72 mm	55.88 mm	Connector to Terminal Block	RJ45	0.063 in	1.6 mm	0.1 "	2.54 mm	FR4 Epoxy Glass
