832-V3 Series

Manufacturer: Preci-Dip

Catalog

CONN HEADER R/A 44POS 2MM

Part	Material Flammability Rating	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Contact Material	Contact Type	Fastening Type	Contact Finish - Mating	Number of Positions Loaded	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Voltage Rating	Shrouding	Termination	Contact Length - Mating	Contact Length - Mating	Insulation Color	Mounting Type	Contact Finish - Post	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Contact Shape	Number of Rows [custom]	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Overall Contact Length	Overall Contact Length

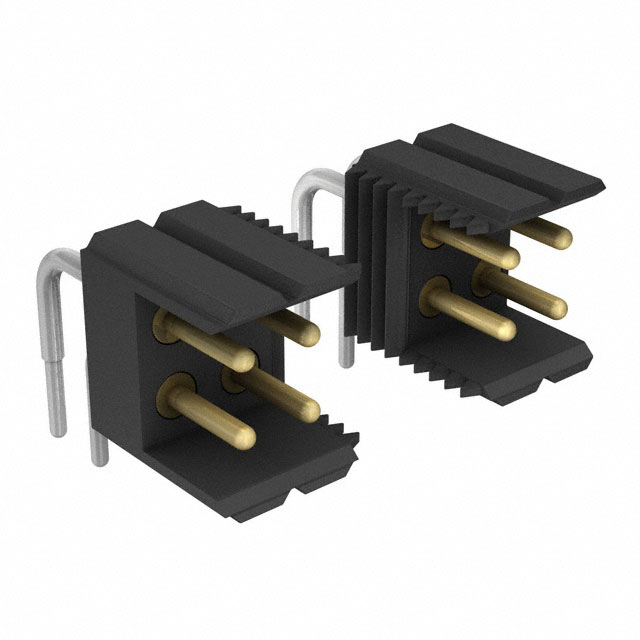

Preci-Dip 832-V3-044-22-002101	UL94 V-0	2 mm	0.079 in	44	Brass	Male Pin	Push-Pull	Gold	All	29.5 µin	0.75 µm	150 VDC	Unshrouded	Solder	3 mm	0.118 in	Black	Right Angle Through Hole	Tin	3 A	0.118 in	3 mm	Header	-55 C	125 °C	0.217 in	5.51 mm	Circular	2	0.079 "	2 mm

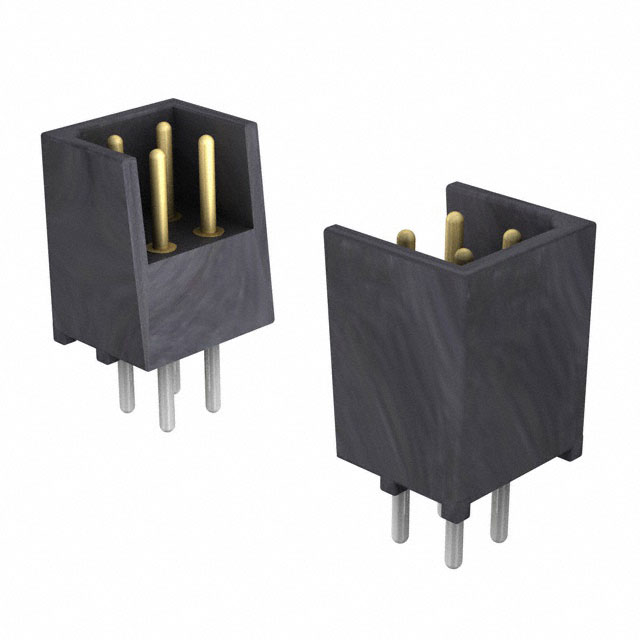

Preci-Dip 832-V3-044-12-002101	UL94 V-0	2 mm	0.079 in	44	Brass	Male Pin	Push-Pull	Gold	All	29.5 µin	0.75 µm	150 VDC	Unshrouded	Solder	3 mm	0.118 in	Black	Through Hole	Tin	3 A			Header	-55 C	125 °C	0.268 in	6.8 mm	Circular	2	0.079 "	2 mm	0.122 in	3.1 mm	0.37 in	9.4 mm
Preci-Dip 832-V3-026-22-002101	UL94 V-0	2 mm	0.079 in	26	Brass	Male Pin	Push-Pull	Gold	All	29.5 µin	0.75 µm	150 VDC	Unshrouded	Solder	3 mm	0.118 in	Black	Right Angle Through Hole	Tin	3 A	0.118 in	3 mm	Header	-55 C	125 °C	0.217 in	5.51 mm	Circular	2	0.079 "	2 mm
Preci-Dip 832-V3-044-32-002101	UL94 V-0	2 mm	0.079 in	44	Brass	Male Pin	Push-Pull	Gold	All	29.5 µin	0.75 µm	150 VDC	Unshrouded	Solder	3 mm	0.118 in	Black	Surface Mount	Tin	3 A			Header	-55 C	125 °C	0.268 in	6.8 mm	Circular	2	0.079 "	2 mm
