5302UE Series
Manufacturer: Belden Inc.
Beta
⌘K

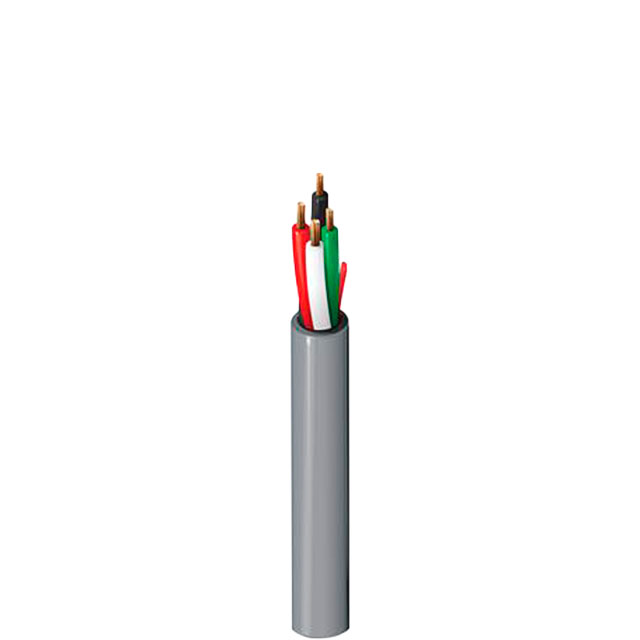

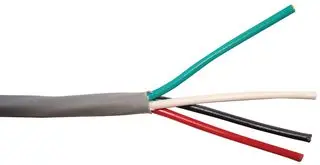

CABLE 4COND 18AWG GRAY
| Part | Ratings | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Conductor Material | Usage | Wire Gauge | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Conductor Insulation | Jacket (Insulation) Material | Features | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | UL Style CMR | 0.017 " | 0.432 mm | Multi-Conductor | Copper Bare | Security Sound | 18 AWG | 4 | 26 AWG | 7 | 300 VDC | Polypropylene (PP) | Poly-Vinyl Chloride (PVC) Riser | Rip Cord | 152.4 m | 500 ft | 4.67 mm | 0.184 in | Gray |
Belden Inc. | UL Style CMR | 0.017 " | 0.432 mm | Multi-Conductor | Copper Bare | Security Sound | 18 AWG | 4 | 26 AWG | 7 | 300 VDC | Polypropylene (PP) | Poly-Vinyl Chloride (PVC) Riser | Rip Cord | 304.8 m | 1000 ft | 4.67 mm | 0.184 in | Gray |
 Belden Inc. | UL Style CMR | 0.017 " | 0.432 mm | Multi-Conductor | Copper Bare | Security Sound | 18 AWG | 4 | 26 AWG | 7 | 300 VDC | Polypropylene (PP) | Poly-Vinyl Chloride (PVC) Riser | Rip Cord | 304.8 m | 1000 ft | 4.67 mm | 0.184 in | Gray |
