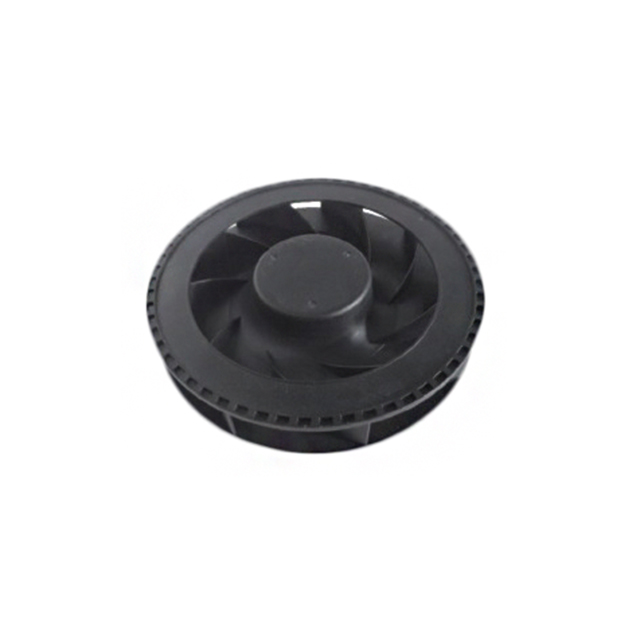

MSI1225 Series

Catalog

FAN IMP MTRZD 120X25.8MM 12VDC

Part	Material - Blade	Current Rating (Amps)	Static Pressure	Static Pressure	Size / Dimension	Size / Dimension [diameter]	Air Flow	Air Flow	Noise	Weight	Weight	Width [x]	RPM	Voltage - Rated	Fan Type	Features	Termination	Approval Agency	Bearing Type
Mechatronics Fan Group MSI1225H12B1+6-BBR	Plastic	880 mA	142 Pa	0.57 in H2O	Round	120 mm	1.62 mł/min	58 CFM	54 dB	161.48 g	0.356 lb	25.8 mm	3300 RPM	12 VDC	Motorized Impellers	Auto Restart PWM Control Speed Sensor (Tach)	4 Wire Leads	CE cUL TUV UL	Ball
Mechatronics Fan Group MSI1225L24B2-BBR	Plastic				Round	120 mm				161.48 g	0.356 lb	25.8 mm		24 VDC	Motorized Impellers	Auto Restart Locked Rotor Sensor	3 Wire Leads	CE cUL TUV UL	Ball
Mechatronics Fan Group MSI1225H24B1+6-BBR	Plastic	480 mA	142 Pa	0.57 in H2O	Round	120 mm	1.62 mł/min	58 CFM	54 dB	161.48 g	0.356 lb	25.8 mm	3300 RPM	24 VDC	Motorized Impellers	Auto Restart PWM Control Speed Sensor (Tach)	4 Wire Leads	CE cUL TUV UL	Ball
Mechatronics Fan Group MSI1225H24B2-BBR	Plastic	480 mA	142 Pa	0.57 in H2O	Round	120 mm	1.62 mł/min	58 CFM	54 dB	161.48 g	0.356 lb	25.8 mm	3300 RPM	24 VDC	Motorized Impellers	Auto Restart Locked Rotor Sensor	3 Wire Leads	CE cUL TUV UL	Ball
Mechatronics Fan Group MSI1225H12B1-BBR	Plastic	880 mA	142 Pa	0.57 in H2O	Round	120 mm	1.62 mł/min	58 CFM	54 dB	161.48 g	0.356 lb	25.8 mm	3300 RPM	12 VDC	Motorized Impellers	Auto Restart Speed Sensor (Tach)	3 Wire Leads	CE cUL TUV UL	Ball
Mechatronics Fan Group MSI1225L24B1+6-BBR	Plastic				Round	120 mm				161.48 g	0.356 lb	25.8 mm		24 VDC	Motorized Impellers	Auto Restart PWM Control Speed Sensor (Tach)	4 Wire Leads	CE cUL TUV UL	Ball
Mechatronics Fan Group MSI1225H24B1-BBR	Plastic	480 mA	142 Pa	0.57 in H2O	Round	120 mm	1.62 mł/min	58 CFM	54 dB	161.48 g	0.356 lb	25.8 mm	3300 RPM	24 VDC	Motorized Impellers	Auto Restart Speed Sensor (Tach)	3 Wire Leads	CE cUL TUV UL	Ball
