NPPC361 Series

Catalog

CONN HDR 36POS 0.1 GOLD SMD

Part	Insulation Material	Contact Finish Thickness - Post	Contact Shape	Contact Material	Current Rating (Amps)	Contact Type	Termination	Connector Type	Mounting Type	Contact Finish - Post	Fastening Type	Contact Finish Thickness - Mating	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Number of Rows	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Number of Positions	Voltage Rating	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Insulation Color
Sullins Connector Solutions NPPC361KFXD-RC	Nylon 6T Polyamide (PA6T)	Flash	Square	Phosphor Bronze	3 A	Female Socket	Solder	Header Top or Bottom Entry	Surface Mount	Gold	Push-Pull	Flash	Gold	-40 C	105 ░C	0.28 in	7.1 mm	1	All	0.1 "	2.54 mm	36	250 V	UL94 V-0
Sullins Connector Solutions NPPC361LGBN-RC	Nylon 6T Polyamide (PA6T)	Flash	Square	Phosphor Bronze	3 A	Female Socket	Solder	Header	Right Angle Through Hole	Gold	Push-Pull	Flash	Gold	-40 C	105 ░C	0.1 in	2.54 mm	1	All	0.1 "	2.54 mm	36	250 V	UL94 V-0	0.124 in	3.15 mm	Black

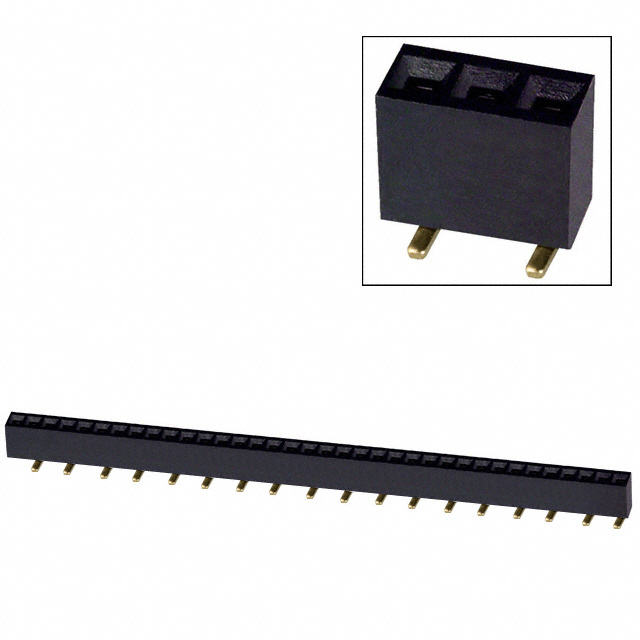

Sullins Connector Solutions NPPC361KFXC-RC	Nylon 6T Polyamide (PA6T)	Flash	Square	Phosphor Bronze	3 A	Female Socket	Solder	Header Top or Bottom Entry	Surface Mount	Gold	Push-Pull	Flash	Gold	-40 C	105 ░C	0.28 in	7.1 mm	1	All	0.1 "	2.54 mm	36	250 V	UL94 V-0			Black
