PPTC121 Series

Catalog

CONN HDR 12POS 0.1 TIN PCB

Part	Insulation Material	Contact Material	Contact Shape	Mounting Type	Contact Finish - Post	Number of Positions Loaded	Voltage Rating	Insulation Color	Number of Rows	Number of Positions	Contact Type	Fastening Type	Connector Type	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post [x]	Contact Length - Post [x]	Termination	Insulation Height	Insulation Height	Current Rating (Amps)	Contact Length - Post	Contact Length - Post

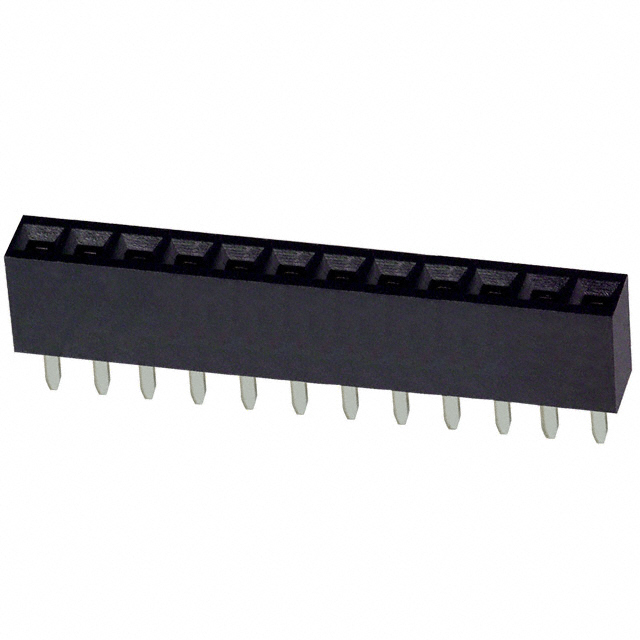

Sullins Connector Solutions PPTC121LFBN	Polyester	Phosphor Bronze	Square	Through Hole	Tin	All	250 V	Black	1	12	Female Socket	Push-Pull	Header	UL94 V-0	0.1 "	2.54 mm	-40 C	105 ░C	0.126 "	3.2 mm	Solder	0.335 "	8.51 mm	3 A
Sullins Connector Solutions PPTC121KFXC	Polyester	Phosphor Bronze	Square	Surface Mount	Tin	All	250 V	Black	1	12	Female Socket	Push-Pull	Header Top or Bottom Entry	UL94 V-0	0.1 "	2.54 mm	-40 C	105 ░C			Solder	0.28 in	7.1 mm	3 A

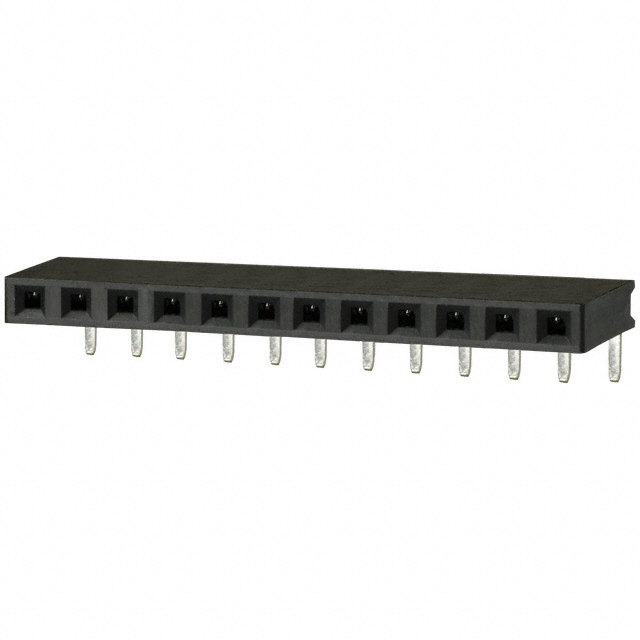

Sullins Connector Solutions PPTC121LGBN-RC	Polyester	Phosphor Bronze	Square	Right Angle Through Hole	Tin	All	250 V	Black	1	12	Female Socket	Push-Pull	Header	UL94 V-0	0.1 "	2.54 mm	-40 C	105 ░C			Solder	0.1 in	2.54 mm	3 A	0.124 in	3.15 mm
Sullins Connector Solutions PPTC121LGBN	Polyester	Phosphor Bronze	Square	Right Angle Through Hole	Tin	All	250 V	Black	1	12	Female Socket	Push-Pull	Header	UL94 V-0	0.1 "	2.54 mm	-40 C	105 ░C			Solder	0.1 in	2.54 mm	3 A	0.124 in	3.15 mm
