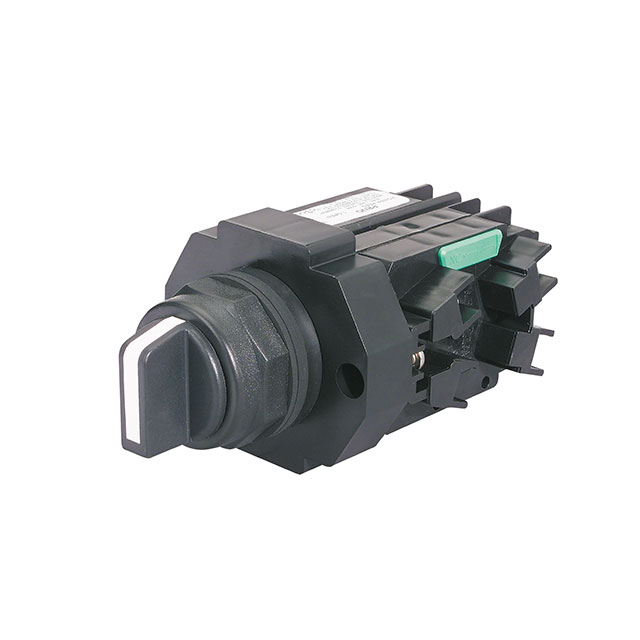

HSSO2 Series
Manufacturer: c3controls
Beta
⌘K
30MM HAZ 2POS SS FCTRY SLD NO/NC
| Part | Approval Agency | Depth Behind Flange | Mechanical Life | Type | Number of Positions | Ingress Protection | Switch Function | Panel Cutout Dimensions [diameter] | Termination Style | Voltage Rating - DC | Illumination | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Voltage Rating - AC | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 c3controls | CE CSA cULus UR | 82.6 mm | 500000 Cycles | Standard | 2 | IP65 - Dust Tight Water Resistant | Off-On On-Off | 30 mm | Screw Terminal | 28 V | Non-Illuminated | 5 A 10 A | 55 °C | -40 C | Panel Mount | 72 V | DPST-NO/NC |
