2301994 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

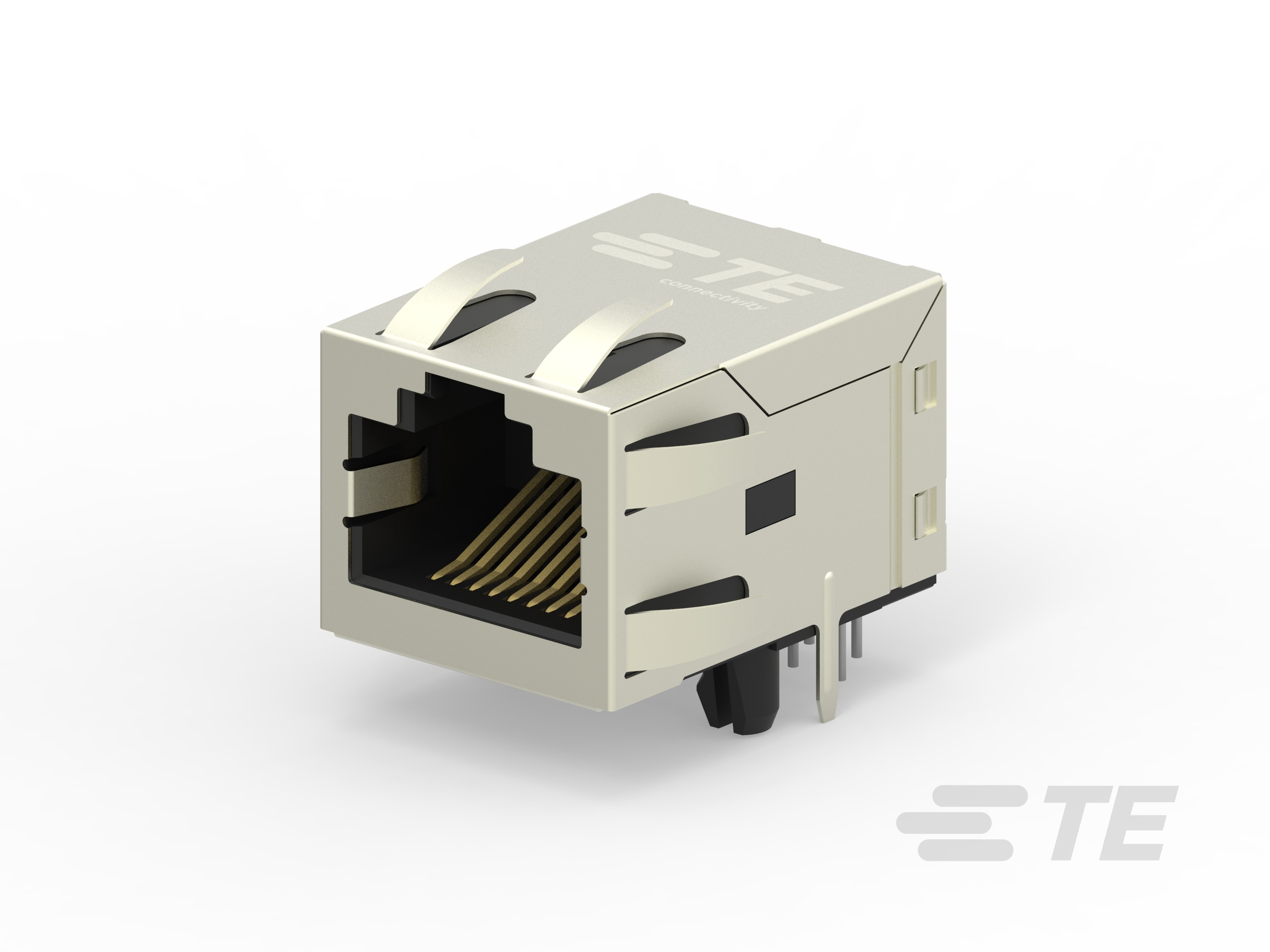

CONN JACK RJ45 1X1 INV
| Part | Housing Material | Connector Type | Termination | Applications | Shielding | LED Color | Contact Finish | Number of Ports | Contact Material | Shield Material | Height Above Board [z] | Height Above Board [z] | Number of Cores per Jack | Orientation | Contact Finish Thickness | Contact Finish Thickness | Tab Direction | Number of Rows | Features | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Height Above Board | Height Above Board |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Liquid Crystal Polymer (LCP) | RJ45 | Solder | 1G Base-T AutoMDIX | Shielded EMI Finger | Green Yellow | Gold | 1 | Copper Alloy | Brass | 13.8 mm | 0.543 in | 8 | 90 ° | 0.76 Ám | 30 Áin | Up | 1 | Board Guide | 85 °C | -40 °C | Through Hole | ||
 TE Connectivity Raychem Cable Protection | Liquid Crystal Polymer (LCP) | RJ45 | Solder | 10/100 Base-T AutoMDIX | Shielded EMI Finger | Does Not Contain LED | Gold | 1 | Copper Alloy | Brass | 90 ° | 0.76 Ám | 30 Áin | Down | 1 | 85 °C | -40 °C | Through Hole | 0.531 in | 13.49 mm | ||||
 TE Connectivity Raychem Cable Protection | Liquid Crystal Polymer (LCP) | RJ45 | Solder | 10/100/1000 Base-T AutoMDIX | Shielded EMI Finger | Green Orange - Yellow | Gold | 1 | Copper Alloy | Brass | 8 | 90 ° | 0.76 Ám | 30 Áin | Up | 1 | 85 °C | -40 °C | Through Hole | 0.445 in | 11.3 mm | |||
 TE Connectivity Raychem Cable Protection | Liquid Crystal Polymer (LCP) | RJ45 | Solder | 10/100/1000 Base-T AutoMDIX | Shielded EMI Finger | Does Not Contain LED | Gold | 1 | Copper Alloy | Brass | 8 | 90 ° | 0.76 Ám | 30 Áin | Down | 1 | 85 °C | -40 °C | Through Hole | 0.537 in | 13.65 mm | |||
 TE Connectivity Raychem Cable Protection | Liquid Crystal Polymer (LCP) | RJ45 | Solder | 10/100 Base-T AutoMDIX | Shielded EMI Finger | Does Not Contain LED | Gold | 1 | Copper Alloy | Brass | 13.8 mm | 0.543 in | 8 | 90 ° | 0.76 Ám | 30 Áin | Up | 1 | 85 °C | -40 °C | Through Hole | |||
 TE Connectivity Raychem Cable Protection | Liquid Crystal Polymer (LCP) | RJ45 | Solder | 10/100/1000 Base-T AutoMDIX | Shielded EMI Finger | Green Yellow | Gold | 1 | Copper Alloy | Brass | 8 | 90 ° | 0.76 Ám | 30 Áin | Down | 1 | 85 °C | -40 °C | Panel Mount Through Hole | 0.537 in | 13.65 mm | |||
 TE Connectivity Raychem Cable Protection | Liquid Crystal Polymer (LCP) | RJ45 | Solder | 10/100 Base-T AutoMDIX | Shielded EMI Finger | Green Yellow | Gold | 1 | Copper Alloy | Brass | 90 ° | 0.76 Ám | 30 Áin | Up | 1 | 85 °C | -40 °C | Through Hole | 0.531 in | 13.49 mm | ||||
 TE Connectivity Raychem Cable Protection | Liquid Crystal Polymer (LCP) | RJ45 | Solder | 10/100 Base-T AutoMDIX | Shielded EMI Finger | Green Yellow | Gold | 1 | Copper Alloy | Brass | 13.82 mm | 0.544 in | 90 ° | 0.76 Ám | 30 Áin | Up | 1 | 85 °C | -40 °C | Through Hole | ||||
 TE Connectivity Raychem Cable Protection | Liquid Crystal Polymer (LCP) | RJ45 | Solder | 10/100/1000 Base-T AutoMDIX | Shielded EMI Finger | Does Not Contain LED | Gold | 1 | Copper Alloy | Brass | 8 | 90 ° | 0.76 Ám | 30 Áin | Down | 1 | 85 °C | -40 °C | Through Hole | 0.537 in | 13.65 mm | |||
 TE Connectivity Raychem Cable Protection | Liquid Crystal Polymer (LCP) | RJ45 | Solder | 10/100/1000 Base-T AutoMDIX | Shielded EMI Finger | Does Not Contain LED | Gold | 1 | Copper Alloy | Brass | 13.8 mm | 0.543 in | 8 | 90 ° | 0.76 Ám | 30 Áin | Up | 1 | 85 °C | -40 °C | Through Hole |
