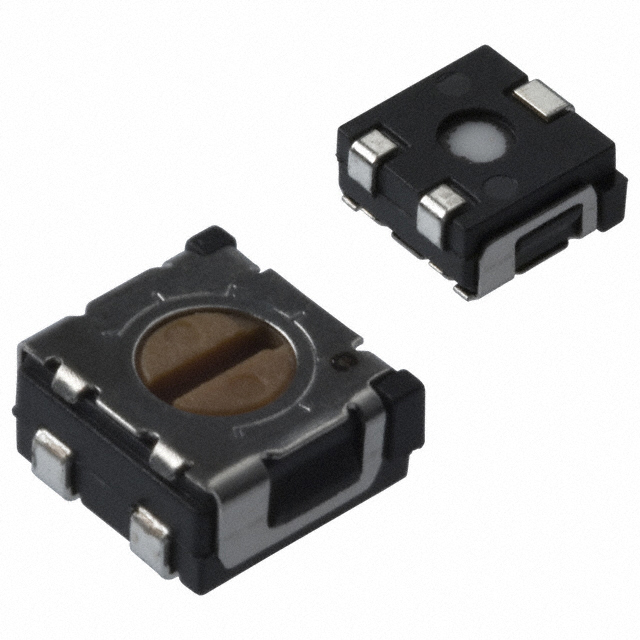

ST4ETA Series

Manufacturer: Nidec Components Corporation

Catalog

TRIMMER POT, CERMET, 10K, 1TURN, SMD

Part	Resistance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Resistive Material	Temperature Coefficient	Number of Turns	Adjustment Type	Tolerance	Power (Watts)	Power (Watts)	Termination Style	Mounting Type
Nidec Components Corporation ST-4ETA103	10000 Ohms	0.197 in	0.177 "	5 mm	4.5 mm	Cermet	100 ppm/°C	1	Top Adjustment	20 %	0.25 W	0.25 W	J Lead	Surface Mount
Nidec Components Corporation ST-4ETA105	1 MOhms	0.197 in	0.177 "	5 mm	4.5 mm	Cermet	100 ppm/°C	1	Top Adjustment	20 %	0.25 W	0.25 W	J Lead	Surface Mount
Nidec Components Corporation ST-4ETA101	100 Ohms	0.197 in	0.177 "	5 mm	4.5 mm	Cermet	100 ppm/°C	1	Top Adjustment	20 %	0.25 W	0.25 W	J Lead	Surface Mount
Nidec Components Corporation ST-4ETA503	50000 Ohms	0.197 in	0.177 "	5 mm	4.5 mm	Cermet	100 ppm/°C	1	Top Adjustment	20 %	0.25 W	0.25 W	J Lead	Surface Mount
Nidec Components Corporation ST-4ETA501	0.5 kOhms	0.197 in	0.177 "	5 mm	4.5 mm	Cermet	100 ppm/°C	1	Top Adjustment	20 %	0.25 W	0.25 W	J Lead	Surface Mount
Nidec Components Corporation ST-4ETA201	200 Ohms	0.197 in	0.177 "	5 mm	4.5 mm	Cermet	100 ppm/°C	1	Top Adjustment	20 %	0.25 W	0.25 W	J Lead	Surface Mount
Nidec Components Corporation ST-4ETA202	2 kOhms	0.197 in	0.177 "	5 mm	4.5 mm	Cermet	100 ppm/°C	1	Top Adjustment	20 %	0.25 W	0.25 W	J Lead	Surface Mount
Nidec Components Corporation ST-4ETA102	1000 Ohms	0.197 in	0.177 "	5 mm	4.5 mm	Cermet	100 ppm/°C	1	Top Adjustment	20 %	0.25 W	0.25 W	J Lead	Surface Mount
Nidec Components Corporation ST-4ETA502	5 kOhms	0.197 in	0.177 "	5 mm	4.5 mm	Cermet	100 ppm/°C	1	Top Adjustment	20 %	0.25 W	0.25 W	J Lead	Surface Mount
Nidec Components Corporation ST-4ETA100	10 Ohms	0.197 in	0.177 "	5 mm	4.5 mm	Cermet	250 ppm/°C	1	Top Adjustment	20 %	0.25 W	0.25 W	J Lead	Surface Mount
