NPPN022 Series

Catalog

CONN HDR 4POS 0.079 GOLD PCB

Part	Contact Shape	Insulation Material	Contact Material	Contact Finish Thickness - Post	Mounting Type	Contact Finish - Post	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating	Pitch - Mating	Termination	Contact Type	Number of Rows [custom]	Material Flammability Rating	Number of Positions Loaded	Connector Type	Fastening Type	Insulation Color	Contact Length - Post	Contact Length - Post	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Number of Positions	Contact Finish Thickness - Mating	Current Rating (Amps)	Features	Insulation Height

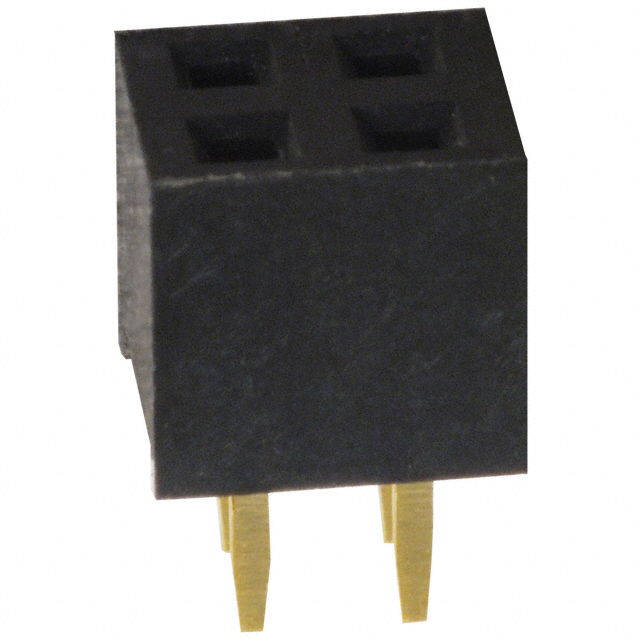

Sullins Connector Solutions NPPN022AFCN-RC	Square	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Flash	Through Hole	Gold	Gold	2 mm	0.079 in	0.079 "	2 mm	Solder	Female Socket	2	UL94 V-0	All	Header	Push-Pull	Black	2.4 mm	0.094 in	-40 C	105 ░C	4.3 mm	0.169 "	4	Flash

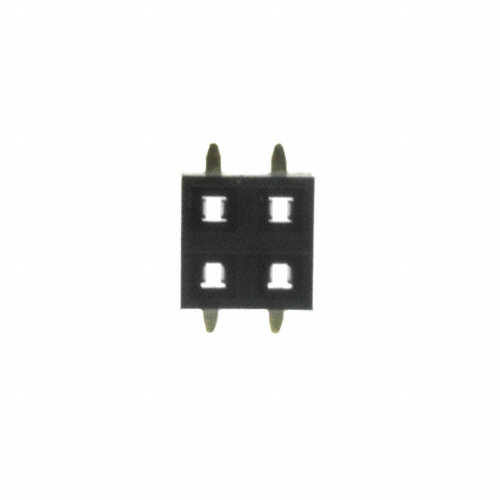

Sullins Connector Solutions NPPN022FFKP-RC	Square	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Flash	Surface Mount	Gold	Gold	2 mm	0.079 in	0.079 "	2 mm	Solder	Female Socket	2	UL94 V-0	All	Header	Push-Pull	Black			-40 C	105 ░C	0.173 in		4	Flash	2 A	Board Guide	4.4 mm
