346-060 Series
Manufacturer: EDAC Inc.
Beta
⌘K

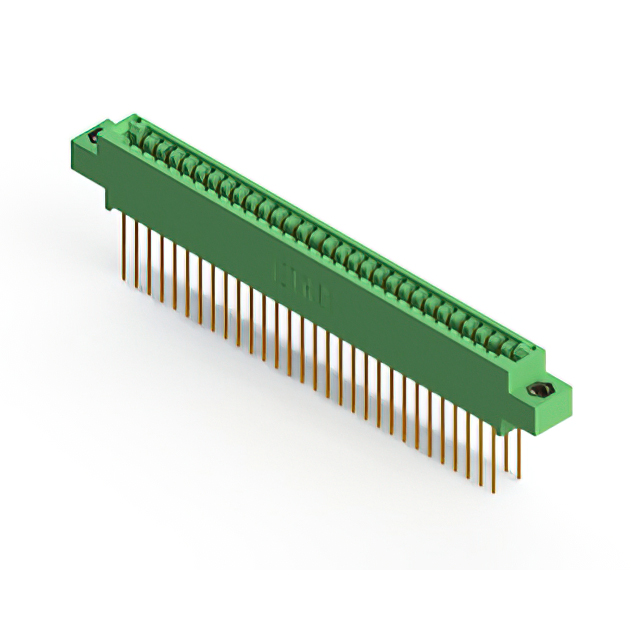

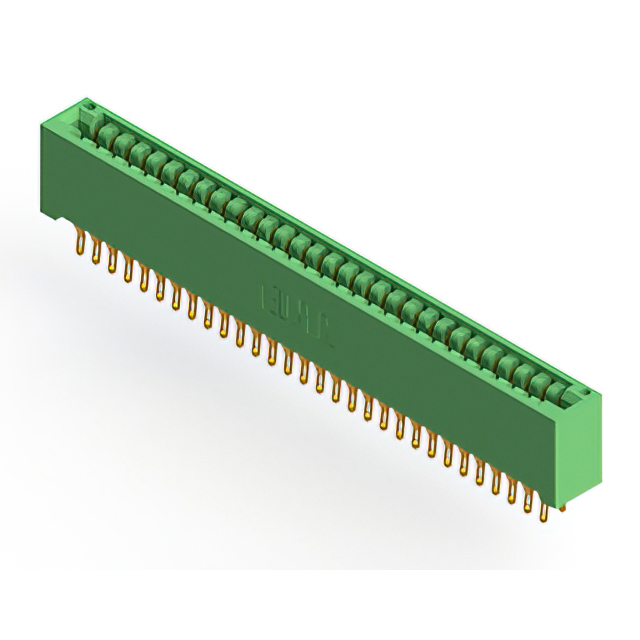

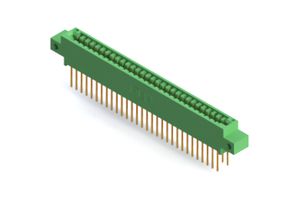

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 60 CONTACTS, PANEL MOUNT, STRAIGHT
| Part | Number of Rows | Contact Finish | Flange Feature | Read Out | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Type | Features | Number of Positions | Number of Positions/Bay/Row [custom] | Gender | Pitch [x] | Pitch [x] | Material - Insulation | Termination | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Termination Rows | Card Type | Mounting Type | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Gold | 4-40 Threaded Insert Top Mount Opening | Dual | -40 °C | 105 ░C | Green | Cantilever | Card Extender | 60 | 30 | Female | 0.125 in | 3.18 mm | Polyester Thermoplastic | Solder Eyelet(s) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | 2 | Non Specified - Dual Edge | Board Edge Straddle Mount | ||||
 EDAC Inc. | 2 | Gold | Dual | -40 °C | 105 ░C | Green | Cantilever | Card Extender | 60 | 30 | Female | 0.125 in | 3.18 mm | Polyester Thermoplastic | Solder Eyelet(s) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | 2 | Non Specified - Dual Edge | Board Edge Straddle Mount | |||||
 EDAC Inc. | 2 | Gold | Flush Mount M3 Threaded Insert Top Opening | Dual | -40 °C | 105 ░C | Green | Cantilever | 60 | 30 | Female | 0.125 in | 3.18 mm | Polyester Thermoplastic | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | 2 | Non Specified - Dual Edge | Through Hole | |||||
 EDAC Inc. | 2 | Gold | 4-40 Threaded Insert Top Mount Opening | Dual | -40 °C | 105 ░C | Green | Cantilever | 60 | 30 | Female | 0.125 in | 3.18 mm | Polyester Thermoplastic | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | 2 | Non Specified - Dual Edge | Through Hole | |||||
 EDAC Inc. | 2 | Gold | Flush Mount Top Opening Unthreaded | Dual | -40 °C | 105 ░C | Green | Cantilever | 60 | 30 | Female | 0.125 in | 3.18 mm | Polyester Thermoplastic | Solder Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | 2 | Non Specified - Dual Edge | Through Hole Right Angle | 3.96 mm | 0.156 in | |||

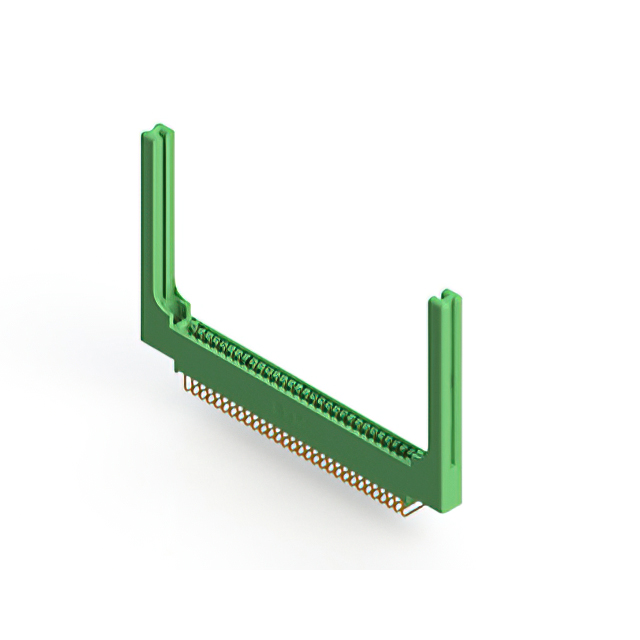

 EDAC Inc. | 2 | Gold | 4-40 Threaded Insert Top Mount Opening | Dual | -40 °C | 105 ░C | Green | Cantilever | Card Guides | 60 | 30 | Female | 0.125 in | 3.18 mm | Polyester Thermoplastic | Solder Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | 2 | Non Specified - Dual Edge | Through Hole Right Angle | ||||
 EDAC Inc. | 2 | Gold | 4-40 Threaded Insert Top Mount Opening | Dual | -40 °C | 105 ░C | Green | Cantilever | Card Guides | 60 | 30 | Female | 0.125 in | 3.18 mm | Polyester Thermoplastic | Solder Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | 2 | Non Specified - Dual Edge | Through Hole Right Angle | ||||
 EDAC Inc. | 2 | Gold | Side Mount Opening Unthreaded | Dual | -40 °C | 105 ░C | Green | Cantilever | 60 | 30 | Female | 0.125 in | 3.18 mm | Polyester Thermoplastic | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | 2 | Non Specified - Dual Edge | Through Hole | 3.25 mm | 0.128 in | |||
 EDAC Inc. | 2 | Gold | 4-40 Threaded Insert Top Mount Opening | Dual | -40 °C | 105 ░C | Green | Cantilever | Card Extender | 60 | 30 | Female | 0.125 in | 3.18 mm | Polyester Thermoplastic | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | 2 | Non Specified - Dual Edge | Board Edge Straddle Mount | ||||
 EDAC Inc. | 2 | Gold | Dual | -40 °C | 105 ░C | Green | Cantilever | 60 | 30 | Female | 0.125 in | 3.18 mm | Polyester Thermoplastic | Solder Eyelet(s) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | 2 | Non Specified - Dual Edge | Through Hole | 3.25 mm | 0.128 in |
