7824E0422 Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K

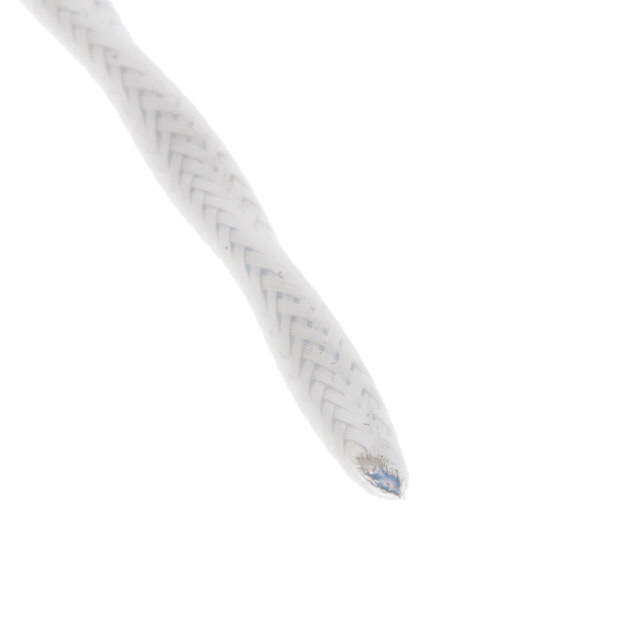

CABLE TWINAXIAL 24AWG 25'
| Part | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Coverage | Length [x] | Length [x] | Conductor Material | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Wire Gauge | VoP, Velocity of Propagation | Dielectric Material | Impedance | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Cable Type | Shield Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Aerospace, Defense and Marine | Braid | 0.135 in | 3.43 mm | 90 % | 1 ft 100 ft | 30.48 m 300 mm | Copper Silver Coated | 7.62 m 15.24 m 152.4 m | 25 ft 50 ft 6000 in | 36 AWG | 19 Strands | Fluorinated Ethylene-Propylene (FEP) | 24 AWG | 74 | Fluorinated Ethylene Propylene (FEP) | 78 Ohms | 1.19 mm | 0.047 in | Twinaxial | Copper Silver Coated |
