H204 Series
Manufacturer: Bivar Inc.
Beta
⌘K
LED CBI 3MM 2X4 GRN DIFF RA
| Part | Millicandela Rating | Voltage Rating | Wavelength - Peak | Lens Type | Lens Size | Lens Size | Current | Configuration [y] | Configuration [z] | Color | Lens Style | Viewing Angle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

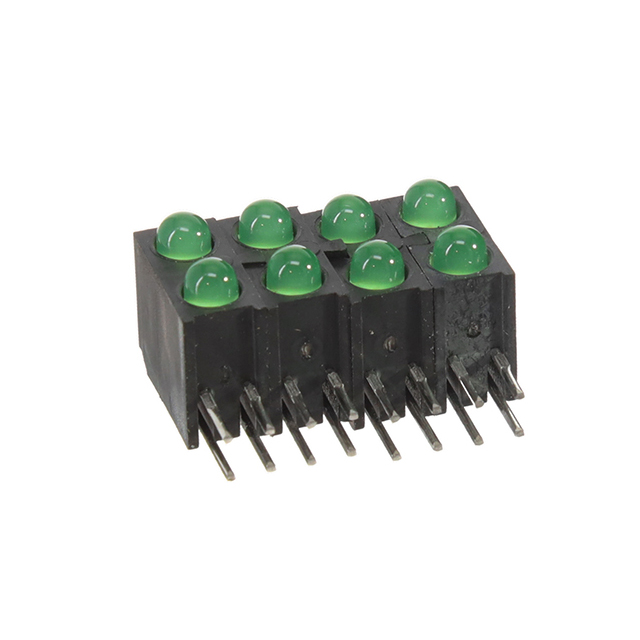

 Bivar Inc. | 2 mcd | 2 V | 568 nm | Diffused | 3 mm | T-1 | 2 mA | 4 | 2 | Green (x 8) | Round with Domed Top | 40 ° |

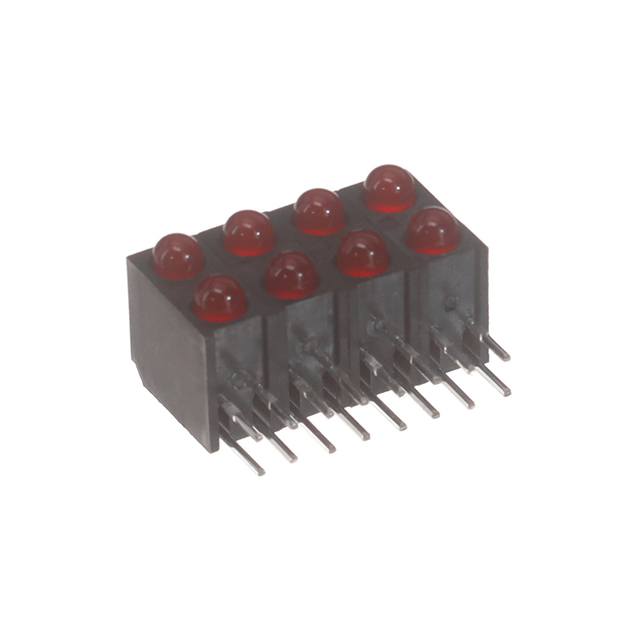

 Bivar Inc. | 2 mcd | 2.1 V | 700 nm | Diffused | 3 mm | T-1 | 20 mA | 4 | 2 | Red (x 8) | Round with Domed Top | 40 ° |
