FMS.1M Series
Manufacturer: LEMO
Beta
⌘K

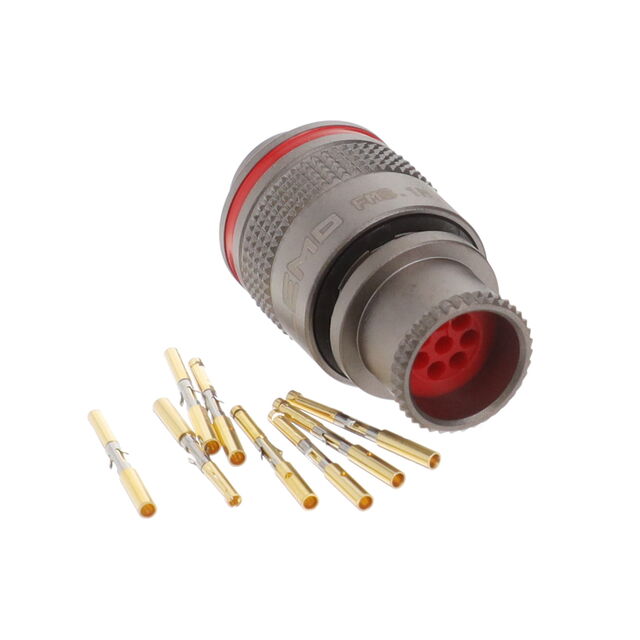

CONN PLUG FMALE 8POS GOLD CRIMP
| Part | Color | Features | Shielding | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insert Material | Ingress Protection | Applications | Shell Size - Insert | Shell Finish | Contact Material | Primary Material | Current Rating (Amps) | Cable Opening | Cable Opening | Termination | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Orientation | Shell Material | Mounting Type | Contact Finish - Mating | Number of Positions | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LEMO | Gray | Coupling Nut | Shielded | 1.5 Ám | 59 Áin | Polyetheretherketone (PEEK) | IP68 - Dust Tight Waterproof | Aerospace Automotive Aviation Military | 308 | Nickel | Bronze | Metal | 5 A | 0.382 in | 9.7 mm | Crimp | Threaded | 200 °C | -55 C | S | Aluminum Alloy | Free Hanging (In-Line) | Gold | 8 | Plug Female Sockets |
LEMO | Gray | Coupling Nut | Shielded | 1.5 Ám | 59 Áin | Polyetheretherketone (PEEK) | IP68 - Dust Tight Waterproof | Aerospace Automotive Aviation Military | 308 | Nickel | Bronze | Metal | 5 A | 0.382 in | 9.7 mm | Crimp | Threaded | 200 °C | -55 C | S | Aluminum Alloy | Free Hanging (In-Line) | Gold | 8 | Plug Female Sockets |
LEMO | Gray | Coupling Nut | Shielded | 1.5 Ám | 59 Áin | Polyetheretherketone (PEEK) | IP68 - Dust Tight Waterproof | Aerospace Automotive Aviation Military | 305 | Nickel | Bronze | Metal | 9 A | 0.382 in | 9.7 mm | Crimp | Threaded | 200 °C | -55 C | S | Aluminum Alloy | Free Hanging (In-Line) | Gold | 5 | Plug Female Sockets |
