224933 Series

Manufacturer: Molex

Catalog

15.00MM PITCH LEVER ACTIVATED FIXED MOUNT PCB TERMINAL BLOCK, 35° WIRE ENTRY, BUSSED TERMINALS, 5 CIRCUITS

Part	Mounting Type	Mating Orientation	Number of Levels	Pitch	Pitch	Positions Per Level	Wire Termination	Color	Features	Wire Gauge [Min]	Wire Gauge [Max]	Current	Voltage

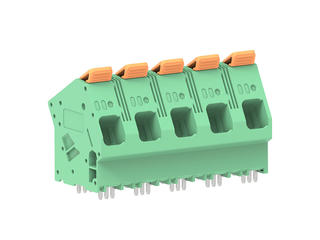

Molex 2249330005	Through Hole	35° (145°) Angle with Board	1	15 mm	0.591 in	5	Leg Spring Push-In Spring	Green	Lever Actuated	4 AWG	18 AWG	72 A	1 kV

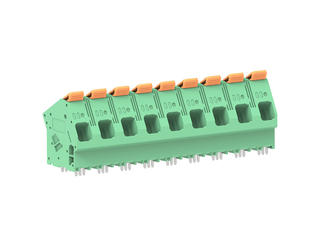

Molex 2249330009	Through Hole	35° (145°) Angle with Board	1	15 mm	0.591 in	9	Leg Spring Push-In Spring	Green	Lever Actuated	4 AWG	18 AWG	72 A	1 kV

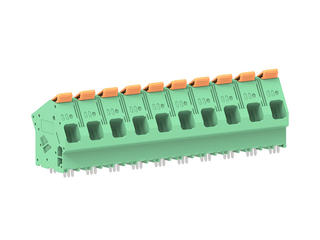

Molex 2249330010	Through Hole	35° (145°) Angle with Board	1	15 mm	0.591 in	10	Leg Spring Push-In Spring	Green	Lever Actuated	4 AWG	18 AWG	72 A	1 kV

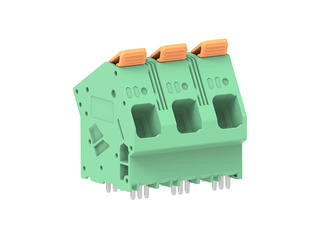

Molex 2249330003	Through Hole	35° (145°) Angle with Board	1	15 mm	0.591 in	3	Leg Spring Push-In Spring	Green	Lever Actuated	4 AWG	18 AWG	72 A	1 kV

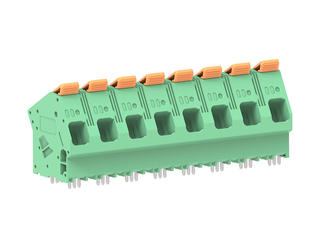

Molex 2249330008	Through Hole	35° (145°) Angle with Board	1	15 mm	0.591 in	8	Leg Spring Push-In Spring	Green	Lever Actuated	4 AWG	18 AWG	72 A	1 kV

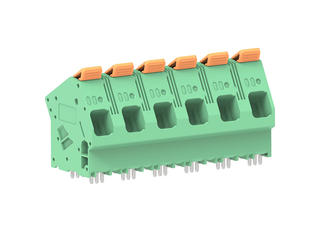

Molex 2249330006	Through Hole	35° (145°) Angle with Board	1	15 mm	0.591 in	6	Leg Spring Push-In Spring	Green	Lever Actuated	4 AWG	18 AWG	72 A	1 kV

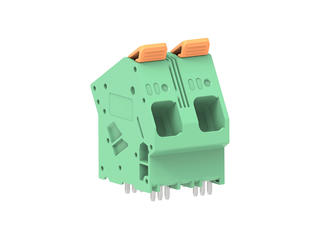

Molex 2249330002	Through Hole	35° (145°) Angle with Board	1	15 mm	0.591 in	2	Leg Spring Push-In Spring	Green	Lever Actuated	4 AWG	18 AWG	72 A	1 kV

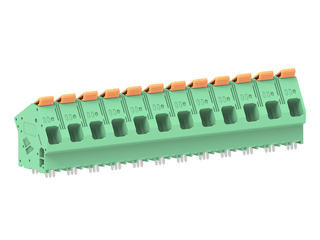

Molex 2249330012	Through Hole	35° (145°) Angle with Board	1	15 mm	0.591 in	12	Leg Spring Push-In Spring	Green	Lever Actuated	4 AWG	18 AWG	72 A	1 kV

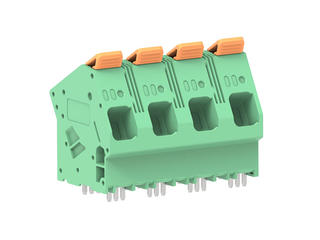

Molex 2249330004	Through Hole	35° (145°) Angle with Board	1	15 mm	0.591 in	4	Leg Spring Push-In Spring	Green	Lever Actuated	4 AWG	18 AWG	72 A	1 kV
Molex 2249330011	Through Hole	35° (145°) Angle with Board	1	15 mm	0.591 in	11	Leg Spring Push-In Spring	Green	Lever Actuated	4 AWG	18 AWG	72 A	1 kV
