213781 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

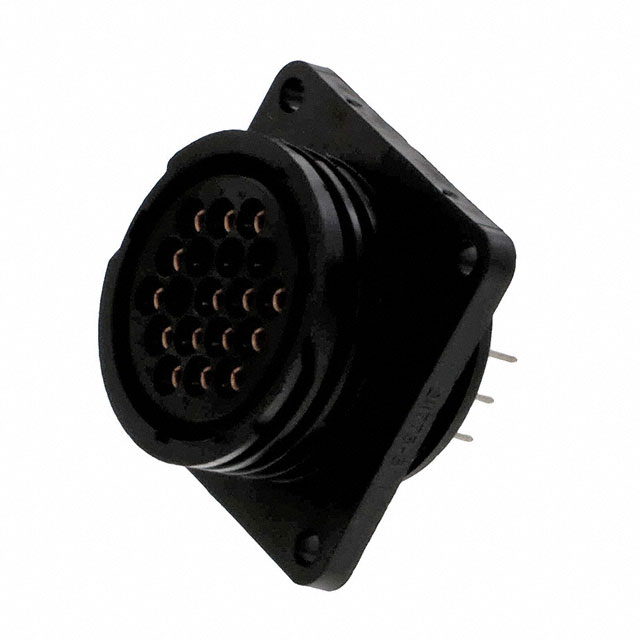

CONN RCPT FMALE 19POS TIN SOLDER
| Part | Material Flammability Rating | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Connector Type | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Shell Size - Insert | Mounting Feature | Orientation | Contact Material | Primary Material | Voltage Rating | Contact Finish - Mating | Shielding | Insert Material | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | UL94 V-0 | Panel Mount Through Hole | 2.54 çm | 100 çin | Receptacle Female Sockets | 19 | 105 ░C | -55 °C | Solder | 23-19 | Flange | A | Brass | Plastic | 250 VAC | ||||
 TE Connectivity Raychem Cable Protection | UL94 V-0 | Panel Mount Through Hole | 0.76 Ám | 30 Áin | Receptacle Female Sockets | 19 | 105 ░C | -55 °C | Solder | 23-19 | Flange | A | Brass | Plastic | 250 VAC | Gold | Unshielded | Nylon Polyamide (PA) | Black |
