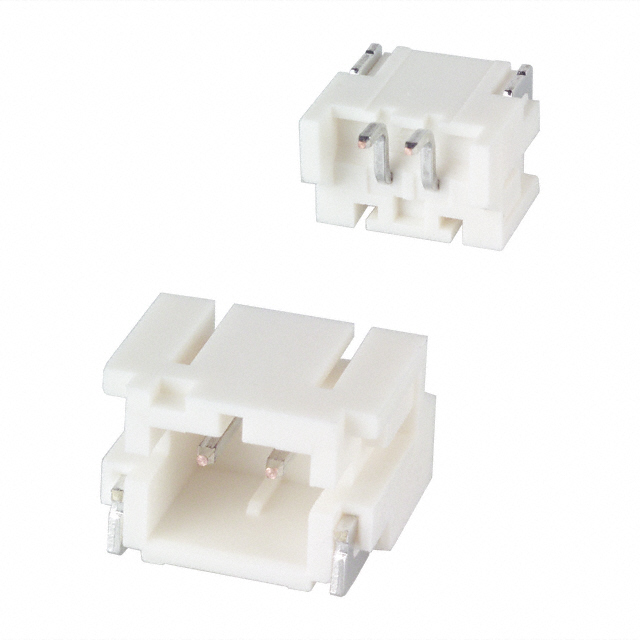

S2B-PH-S Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 2POS 2MM
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Shrouding | Current Rating (Amps) | Number of Rows | Termination | Contact Type | Contact Material | Insulation Color | Style | Number of Positions | Insulation Material | Features | Mounting Type | Insulation Height | Insulation Height | Contact Finish - Post | Connector Type | Number of Positions Loaded | Contact Shape | Voltage Rating | Contact Length - Mating | Contact Length - Mating | Material Flammability Rating | Pitch - Mating | Pitch - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 85 °C | -25 °C | Detent Lock | Shrouded - 4 Wall | 2 A | 1 | Solder | Male Pin | Copper Alloy | Natural | Board to Cable/Wire | 2 | Nylon 6T Polyamide (PA6T) | Solder Retention | Right Angle Surface Mount | 0.217 in | 5.51 mm | Tin | Header | All | Square | 100 V | 0.13 in | 3.3 mm | UL94 V-0 | 0.079 " | 2 mm |
