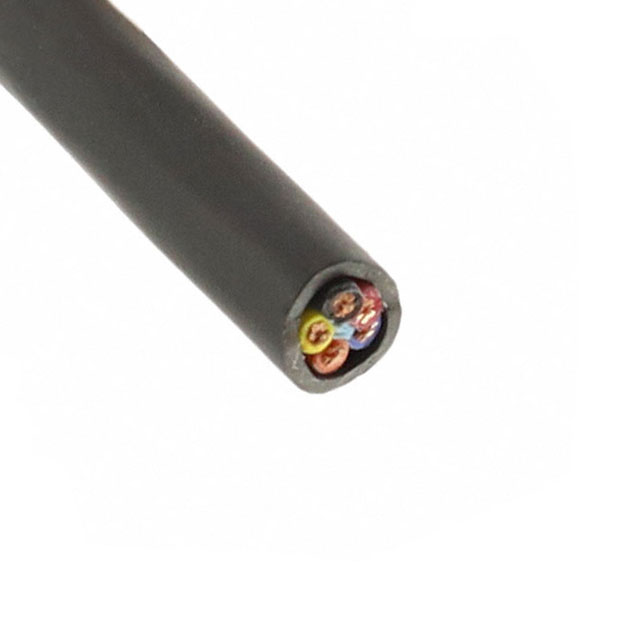

M3830 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
AE TRAY CABLE /100 FT /EACH
| Part | Conductor Strand [custom] | Conductor Strand [diameter] | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Jacket (Insulation) Material | Conductor Material | Voltage | Length [x] | Length [x] | Conductor Insulation | Jacket Color | Number of Conductors | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 7 | 0.0192 in | 16 AWG | 9.35 mm | 0.368 in | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Copper Bare | 600 V | 100 ft | 30.5 m | Poly-Vinyl Chloride (PVC) | Black | 5 | 90 °C | -25 °C | 1.194 mm | 0.047 in | ||
 ALPHA WIRE | 7 | 0.0192 in | 16 AWG | 9.35 mm | 0.368 in | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Copper Bare | 600 V | Poly-Vinyl Chloride (PVC) | Black | 5 | 90 °C | -25 °C | 1.194 mm | 0.047 in | 914.4 m | 3000 ' | ||
ALPHA WIRE | 7 | 0.0192 in | 16 AWG | 9.35 mm | 0.368 in | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Copper Bare | 600 V | Poly-Vinyl Chloride (PVC) | Black | 5 | 90 °C | -25 °C | 1.194 mm | 0.047 in | 152.4 m | 500 ft |
