BME6 Series

Catalog

SWITCH SNAP ACTION SPDT 22A 125V

Part	Ingress Protection	Voltage Rating - AC	Switch Function	Voltage Rating - DC	Actuator Type	Operating Position	Operating Position	Overtravel	Overtravel	Pretravel	Pretravel	Circuit	Features	Differential Travel	Differential Travel	Operating Force [Max]	Operating Force [Min]	Mounting Type	Termination Style	Release Force	Current Rating (Amps)	Operating Force [Min] [custom]	Operating Force [Max] [custom]
Honeywell Sensing and Productivity Solutions BME6-2RQ81	IP40	125 V	On-Mom	125 VDC	Cross Roller Plunger	49.6 mm	1.953 in	3.6 mm	0.141 in	0.15 in	3.8 mm	SPDT	Steel Roller	0.002 in	0.05 mm	368 gf	255 gf	Chassis Mount	Screw Terminal	113 gf	22 A 500 mA

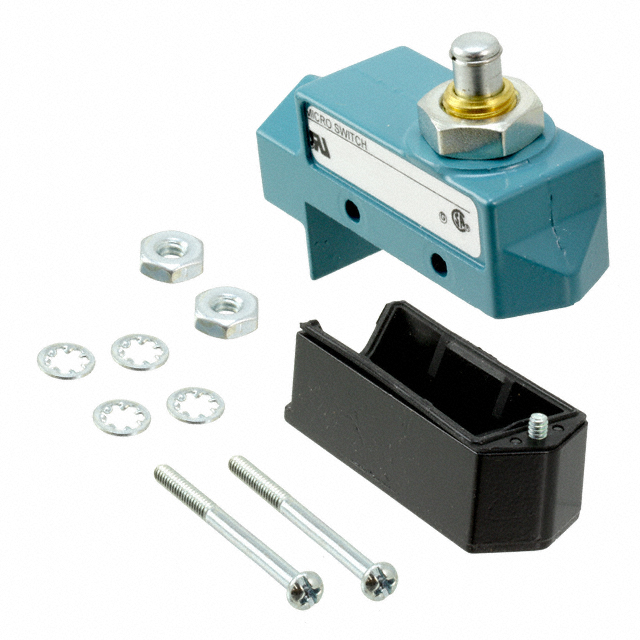

Honeywell Sensing and Productivity Solutions BME6-2RQ173	IP40	125 V	On-Mom	125 VDC	Round (Pin Plunger)	38.1 mm	1.5 in	5.6 mm	0.219 in	0.015 in	0.4 mm	SPDT	Steel Plunger	0.002 in	0.05 mm	368 gf	255 gf	Chassis Mount	Screw Terminal	113 gf	22 A 500 mA

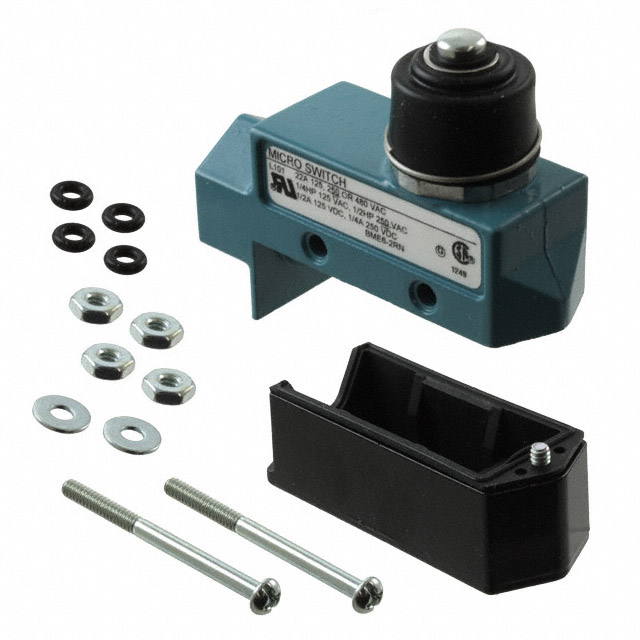

Honeywell Sensing and Productivity Solutions BME6-2RN	IP66	125 V	On-Mom	125 VDC	Round (Pin Plunger)	43.7 mm	1.72 "	5.6 mm	0.219 in	0.078 "	2 mm	SPDT		0.002 in	0.05 mm			Chassis Mount	Screw Terminal	113 gf	22 A 500 mA

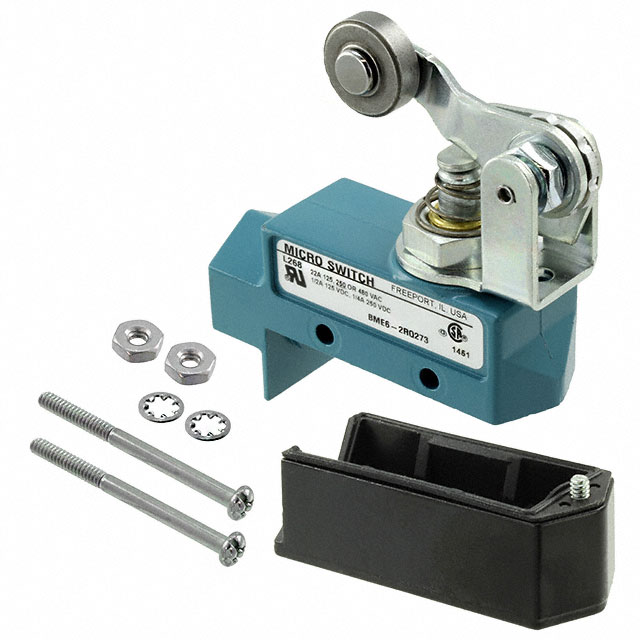

Honeywell Sensing and Productivity Solutions BME6-2RQ273	IP40	125 V	On-Mom	125 VDC	Lever Roller			5.6 mm	0.219 in	0.188 in	4.8 mm	SPDT		0.006 in	0.15 mm			Chassis Mount	Screw Terminal	170 gf	22 A 500 mA	283	510
