2355-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

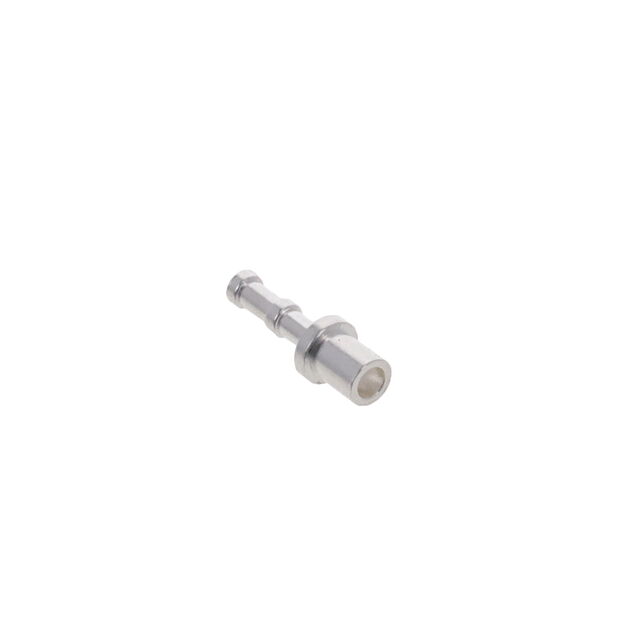

TERM TURRET SINGLE L=4.85MM
| Part | Number of Turrets | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Length - Overall [x] | Length - Overall | Contact Finish Thickness | Contact Finish Thickness | Length - Above Board [x] | Length - Above Board [x] | Board Thickness | Board Thickness | Contact Finish | Flange Diameter [diameter] | Flange Diameter [diameter] | Diameter - Turret Head [diameter] | Diameter - Turret Head [diameter] | Termination | Mounting Type | Staking Side ID | Staking Side ID | Length - Below Flange [x] | Length - Below Flange [x] | Insulation | Terminal Type | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mill-Max Manufacturing Corp. | Double | 1.85 mm | 0.073 in | 0.275 in | 6.99 mm | 300 µin | 7.62 µm | 4.85 mm | 0.191 in | 0.062 in | 1.57 mm | Tin-Lead | 2.39 mm | 0.094 in | 1.27 mm | 0.05 in | Swage | Through Hole | 1.17 mm | 0.046 in | 2.13 mm | 0.084 in | Non-Insulated | Single End | Brass Alloy |
Mill-Max Manufacturing Corp. | Double | 1.85 mm | 0.073 in | 0.275 in | 6.99 mm | 200 Áin | 5.08 Ám | 4.85 mm | 0.191 in | 0.062 in | 1.57 mm | Tin | 2.39 mm | 0.094 in | 1.27 mm | 0.05 in | Swage | Through Hole | 1.17 mm | 0.046 in | 2.13 mm | 0.084 in | Non-Insulated | Single End | Brass Alloy |
 Mill-Max Manufacturing Corp. | Double | 1.85 mm | 0.073 in | 0.275 in | 6.99 mm | 300 µin | 7.62 µm | 4.85 mm | 0.191 in | 0.062 in | 1.57 mm | Silver | 2.39 mm | 0.094 in | 1.27 mm | 0.05 in | Swage | Through Hole | 1.17 mm | 0.046 in | 2.13 mm | 0.084 in | Non-Insulated | Single End | Brass Alloy |
Mill-Max Manufacturing Corp. | Double | 1.85 mm | 0.073 in | 0.275 in | 6.99 mm | 200 Áin | 5.08 Ám | 4.85 mm | 0.191 in | 0.062 in | 1.57 mm | Tin-Lead | 2.39 mm | 0.094 in | 1.27 mm | 0.05 in | Swage | Through Hole | 1.17 mm | 0.046 in | 2.13 mm | 0.084 in | Non-Insulated | Single End | Brass Alloy |
