9550 Series
Manufacturer: Belden Inc.
Beta
⌘K

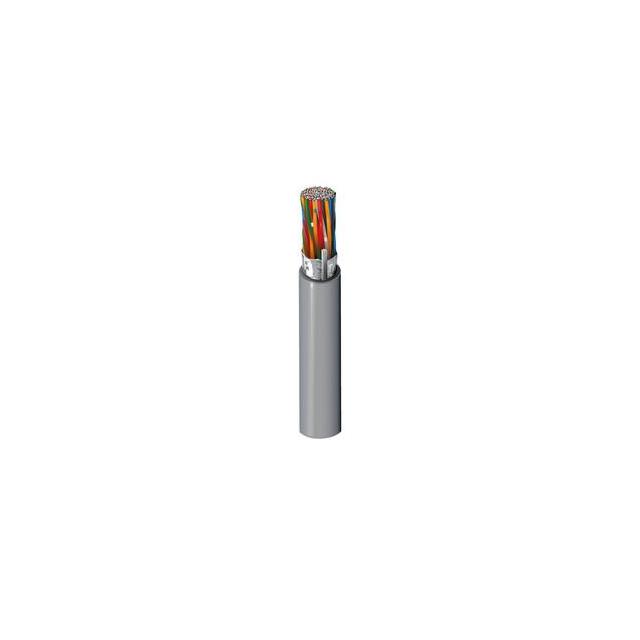

MULTI-PAIR 100COND 24AWG
| Part | Shield Coverage | Shield Material | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Voltage | Usage | Jacket (Insulation) Material | Cable Type | Length | Length | Wire Gauge | Conductor Insulation | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Conductor Material | Jacket (Insulation) Diameter | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Operating Temperature [Max] | Operating Temperature [Min] | Ratings | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | 7 | 32 AWG | Foil | 300 VDC | Computer | Poly-Vinyl Chloride (PVC) | Multi-Pair | 304.8 m | 1000 ft | 24 AWG | Poly-Vinyl Chloride (PVC) | Chrome | 1.372 mm | 0.054 in | Drain Wire | Copper Tinned | 17.98 mm | 0.708 " | 100 | 80 °C | -30 ░C | UL Style 2464 | ||
Belden Inc. | 100 % | Aluminum | 7 | 32 AWG | Foil | 300 VDC | Computer | Poly-Vinyl Chloride (PVC) | Multi-Pair | 24 AWG | Poly-Vinyl Chloride (PVC) | Chrome | 1.372 mm | 0.054 in | Drain Wire | Copper Tinned | 17.98 mm | 0.708 " | 100 | 80 °C | -30 ░C | UL Style 2464 | 100 ft | 30.5 m |
