043242 Series
Manufacturer: Molex
Catalog

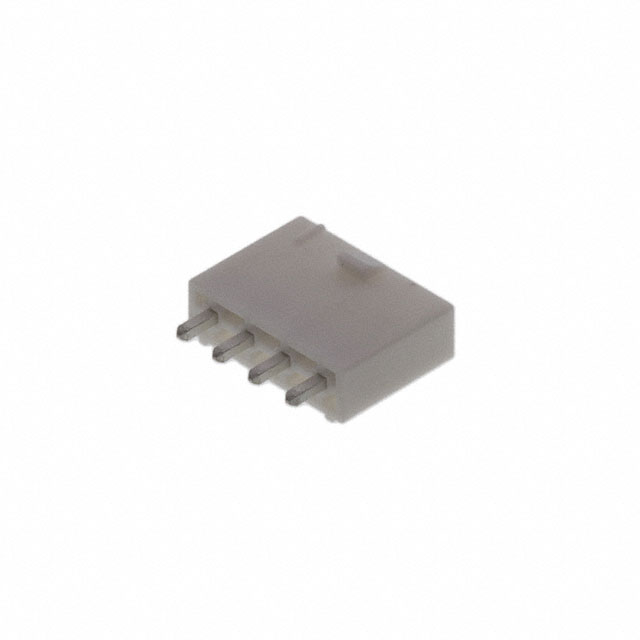

CONN HEADER VERT 4POS 4.2MM
| Part | Applications | Material Flammability Rating | Contact Finish - Post | Mounting Type | Contact Shape | Number of Positions | Fastening Type | Pitch - Mating | Pitch - Mating | Style | Insulation Material | Number of Rows | Shrouding | Termination | Connector Type | Insulation Height | Insulation Height | Number of Positions Loaded | Contact Material | Contact Length - Post | Contact Length - Post | Insulation Color | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | General Purpose Industrial Telecommunications | UL94 V-0 | Tin | Through Hole | Square | 4 | Locking Ramp | 4.2 mm | 0.165 in | Board to Cable/Wire | Polyamide (PA66) Nylon 6/6 | 1 | Shrouded - 4 Wall | Solder | Header | 12.8 mm | 0.504 in | All | Brass | 0.146 in | 3.7 mm | Natural | Male Pin |
 Molex | General Purpose Industrial Telecommunications | UL94 V-0 | Tin | Through Hole | Square | Locking Ramp | 4.2 mm | 0.165 in | Board to Cable/Wire | Polyamide (PA66) Nylon 6/6 | 1 | Shrouded - 4 Wall | Solder | Header | 12.44 mm | 0.49 in | All | Brass | 0.146 in | 3.7 mm | Natural | Male Pin |
